Clevis pin are non-threaded fasteners that can be used in place of bolts and rivets.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Svida
-
Model Number:
-
Pin
-
Product Name:
-

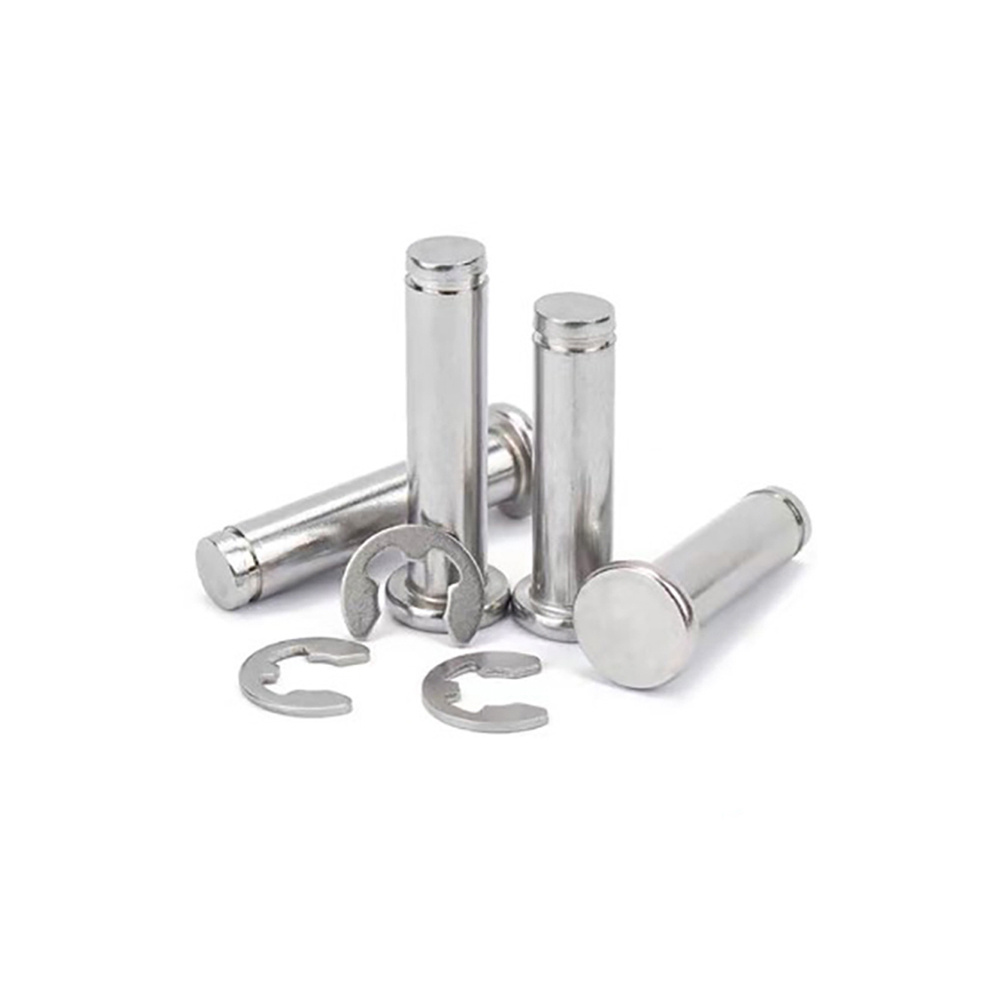

Stock SS304 3mm 4mm 5mm 6mm 8mm 10mm Grooved Clevis Pins With Ring
-
Finish:
-
Plain,Zinc Plated,Chrome Plated
-
Pin Diameter:
-
M10 M12 M14 M16
-
Pin Type:
-
Clevis Pins
-
Pin Length:
-
14~140mm
-
Lead Time:
-
7-15 Days
-
MOQ:
-
1000PCS
-
Sample:
-
Avaliable
-
OEM:
-
OEM Service Offered
Quick Details
-
Material:
-
ZINC, Stainless steel
-
Type:
-
Clevis Pin
-
Size:
-
Customized
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Svida
-
Model Number:
-
Pin
-
Product Name:
-
Stock SS304 3mm 4mm 5mm 6mm 8mm 10mm Grooved Clevis Pins With Ring
-
Finish:
-
Plain,Zinc Plated,Chrome Plated
-
Pin Diameter:
-
M10 M12 M14 M16
-
Pin Type:
-
Clevis Pins
-
Pin Length:
-
14~140mm
-
Lead Time:
-
7-15 Days
-
MOQ:
-
1000PCS
-
Sample:
-
Avaliable
-
OEM:
-
OEM Service Offered
Product Specification
|
d
|
L
|
h
|
d1
|
k
|
dk
|
|
3
|
12 14 16 20 25 30
|
0.5-0.7
|
1.9-2.1
|
1.1-1.4
|
5.2-5.8
|
|
4
|
12 14 16 20 25 30 35 40 45 50 55 60
|
0.5-0.7
|
2.9-3.1
|
1.3-1.7
|
6.7-7.3
|
|
5
|
12 14 16 20 25 30 35 40 45 50 55 60
|
0.7-0.9
|
3.9-4.1
|
1.6-2.0
|
8.4-9.2
|
|
6
|
16 20 25 30 35 40 45 50 55 60 70 80
|
0.8-1
|
4.9-5.1
|
1.8-2.2
|
9.5-10.5
|
|
8
|
16 20 25 30 35 40 45 50 55 60 70 80 90 100
|
1.1-1.3
|
6.9-7.1
|
2.3-2.8
|
12-13
|
|
10
|
20 25 30 35 40 45 50 55 60 70 80 90 100
|
1.1-1.3
|
8.9-9.1
|
2.7-3.3
|
14.2-15.5
|
|
12
|
30 35 40 45 50 55 60 65 70 80 90 100
|
1.1-1.3
|
10.9-11.1
|
3.0-3.8
|
16.5-18.2
|
|
Part No.
|
Pin
|
|
|
|
|
|
|||||
|
SVD101
|
Material
|
|
|
|
|
|
|||||
|
|
Stainless Steel
|
|
|
|
|
|
|||||
Product Display
The pin is inserted into the hole in the clevis pin shaft, securing the pin and retaining ring in place.
Widely Applicable
Different Types
|
Toggle Pin
|
Clevis Pin With Hole
|
Clevis Pin With Slotted
|
Round Head Pin
|
|
D Type Pin
|
Lever Pin
|
O Type Pin
|
Square Type Pin
|
More Choices
|
Clevis Pins
|
Cotter Pins
|
Dowel Pins
|
Indexing Plunger
|
|
Quick Release Pins
|
Screw and Bolts Pin
|
Spring Ball Plunger
|
Magnetic Quick Release Pins
|
Packing and Shipping
We can supply many kinds of packing for assuring the safe shipping and accept custom packaging as required.
