Quick Details
-
Output Mode:
-
Constant Voltage
-
Channels:
-
1CH
-
Max Current Load:
-
10A/ch
-
Control Mode:
-
DALI Signal & 220v Switch
-
Certification:
-
CE RoHS
-
Color:
-
Black
-
Weight:
-
210g
-
Size:
-
L160*W47*H22mm
-
Warranty:
-
3years
-
Name:
-
DALI driver, Dimmable DALI controller, DALI LED dimmer
Quick Details
-
Type:
-
MANUAL SWITCH
-
Max. Load Power:
-
240W(24V) 120W(12V)
-
Place of Origin:
-
Shanghai, China
-
Output Mode:
-
Constant Voltage
-
Channels:
-
1CH
-
Max Current Load:
-
10A/ch
-
Control Mode:
-
DALI Signal & 220v Switch
-
Certification:
-
CE RoHS
-
Color:
-
Black
-
Weight:
-
210g
-
Size:
-
L160*W47*H22mm
-
Warranty:
-
3years
-
Name:
-
DALI driver, Dimmable DALI controller, DALI LED dimmer
Model: DL8001

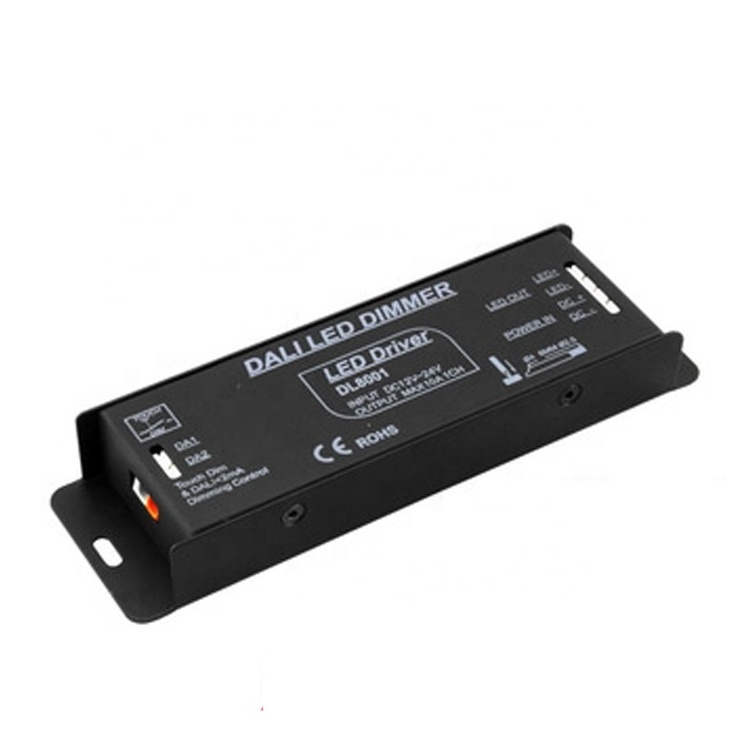

DALI driver, Dimmable DALI controller, DALI LED dimmer, Constant Voltage 1channel/12V-24V/10A/240W
Features
1. PWM output current:MAX 10A/CH.
2. DALI digital control input, dimming control LED module.
3. Addressing o utput channel.
4. Dimming range is from 0-100% range, (LED brightness start in 1%).
5. Used for DC power supply . over-temperature protection, s ecurity level is 2.
6. Support TOUCH DIM function and can be dimmed manually. ( 220VAC dimming way)
7. Single channel DC12-24V constant voltage output.
8. Custom-made available
Tech-parameter
| Input: DC12-24V | Output: <10A | Control channels:1CH |
| MAX Power: 240W(24V) 120W(12V) | Frequence: 500HZ | Signal Input: DALI Signal & 220V Switch |
| Out casting temp: MAX70°C |
Surrounding temp:-20--50°C(It is available in 25°C indoor). |
Protection grade: IP40 |
|
Dimming control DALI definition:IEC62386 IEC60929 |
Size
Touch Dim f unctional description
1).Short press the Touch DIM switch(<0.5s)to control the lamp on or off.
2).Long press the Touch DIM switch(>0.5s)to dim the brightness of light;The dimming direction will change every time after pressing switch.
3).When the light being turned off,long press the Touch DIM switch can turn on the light and adjust the brightness according to the dimming direction.
4).The brightness adjustment range is 1%-100%,and the light can be turned off through short pressing when do the adjustment with long pressing Touch DIM switch.
5).Power off memory function,the power-down state before will be maintained when power on again.
Product installation notes:
1).Remark:DALI and Touch DIM functions can’t be used simultaneously,which can be controlled respectively by using DALI controllers or equipments with Touch DIM function.
2).Please read the connecting instruction picture before installation.
3).Please use the complete set of product according to the provided specification.
4).Please firstly pressure the cap end down in wire connecting process,then insert the thread of wire,and lastly check the wire is or not insert firmly.
5).In order to avoid the damage of the equipment,please check the connecting method is correct or not before connecting the power.
6). The DALI bus is using BV 2 x1. 5 mm wire, the longest distance is 300 meters .
