Quick Details
-
Diameter:
-
0.6-2.8m
-
Length:
-
5-24m
-
Layers:
-
3-10
-
Material:
-
Natural rubber
-
Lifespan:
-
6-8 years
-
Certificate:
-
ISO, BV, CCS, IRS, RS
-
Usage:
-
For ship launching and landing, salvage, lifting, etc
-
Standard:
-
ISO 14409
-
Colour:
-
Black
Quick Details
-
Place of Origin:
-
Qingdao, China
-
Brand Name:
-
Florescence
-
Product Name:
-
FL Ship Launching Airbag
-
Diameter:
-
0.6-2.8m
-
Length:
-
5-24m
-
Layers:
-
3-10
-
Material:
-
Natural rubber
-
Lifespan:
-
6-8 years
-
Certificate:
-
ISO, BV, CCS, IRS, RS
-
Usage:
-
For ship launching and landing, salvage, lifting, etc
-
Standard:
-
ISO 14409
-
Colour:
-
Black
Product Introduction

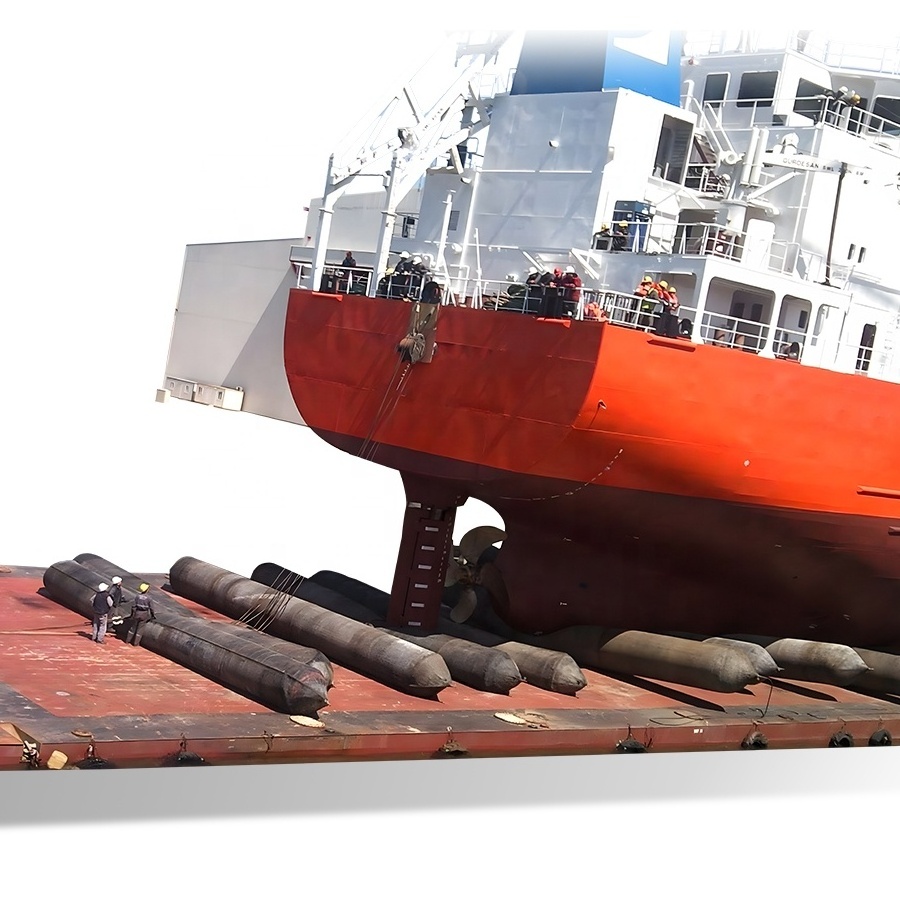

Ship Launching Airbags
,
also called
marine airbags
, docking airbags, ship lauching balloons, marie air bags , now have become one convenient ship launching method in the some shipyards, especially where slipways are not available.
Qingdao Florescence Marine Supply Co.,Ltd is one of the largest fenders and airbags factories in China which was established in the year
1992.
Our products are approved by
CCS, BV, RS and ISO
certificate.
|
Dia
|
Effective
Length
|
Layers
with
cord
|
Working
Pressure
|
Bearing Capacity
|
|
|
|
|
|
|
|
Lifting Height
|
Tons/Airbag
|
|
|
1.2m
|
10m
|
6
|
0.17mPa
|
0.9m
|
78.51 tons
|
|
|
1.5m
|
12m
|
8
|
0.18mPa
|
1.2m
|
100.50 tons
|
|
|
1.8m
|
15m
|
8
|
0.15mPa
|
1.5m
|
104.69 tons
|
|
|
2.0m
|
18m
|
10
|
0.17mPa
|
1.5m
|
235.54 tons
|
|
|
2.5m
|
18m
|
12
|
0.16mPa
|
2.0m
|
226.12 tons
|
|
Florescence ship rubber airbag comply with
ISO 14409
. ship airbag can be used to launch and upgrade a ship up to 100,000DWT.
Comparing to the traditional slipway launching method, the ship launching airbags are much environmental, because ship airbag can launch a ship at any seaside, so there's no need to worry about the construction of launching facilities; besides, the marine airbag need little maintenance and can be used repeatedly.
Comparing to the traditional slipway launching method, the ship launching airbags are much environmental, because ship airbag can launch a ship at any seaside, so there's no need to worry about the construction of launching facilities; besides, the marine airbag need little maintenance and can be used repeatedly.
For
price quotes
– please answer the following questions:
1. Type of vessel?
2. LOA (length) of ship?
3. Width of vessel?
4. Vessel’s actual launched weight?
5. What is the vessel’s DWT?
6. Type of ground ship is built on? (Dirt, concrete, etc.)
7. Depth where the ship first enters the water?
8. What’s the angle degree of slipway? (Land)
9. Please provide the low/high tide schedule at site.
10. The working height? (The block stand height)
11. Distance from bottom of propeller to the water level?
12. Distance from back of vessel to the water entry point?
*If possible, please provide photos of the launch area.
1. Type of vessel?
2. LOA (length) of ship?
3. Width of vessel?
4. Vessel’s actual launched weight?
5. What is the vessel’s DWT?
6. Type of ground ship is built on? (Dirt, concrete, etc.)
7. Depth where the ship first enters the water?
8. What’s the angle degree of slipway? (Land)
9. Please provide the low/high tide schedule at site.
10. The working height? (The block stand height)
11. Distance from bottom of propeller to the water level?
12. Distance from back of vessel to the water entry point?
*If possible, please provide photos of the launch area.
Acceptance Test for Commercial Ship Launching Airbags
• The appearance of each ship launching airbag is smooth, glossy and without blemish such as crack, blister, delamination, pits, or impurities.
• The length and diameter of each Florescence ship launching airbags are measured with the rated working pressure and is within ±3%.
• The gas-tightness is tested without carrying any load as per ISO 14409. The pressure loss is less than 5% of rated working pressure within 1 hour.
• The length and diameter of each Florescence ship launching airbags are measured with the rated working pressure and is within ±3%.
• The gas-tightness is tested without carrying any load as per ISO 14409. The pressure loss is less than 5% of rated working pressure within 1 hour.
Florescence ship launching airbags
are type approved. This means we have demonstrated the performance of ship launching airbags to independent inspectors
CCS
.
Type Approval Test is the essential and necessary qualification of qualified manufacturer of ship launching airbags. In addition to the requirements for the material, appearance, and dimensional tolerances, “Gas-tightness Test”, “Compression Test”, “Bearing Capacity Test”, “Bursting Test”, and “Compression-recovery Test” are carried out.
Launching ramp:
Airbag ship launching ramp has simple requirements: flatness, proper angle, and sufficient ground bearing capacity. Usually it is easy to meet these requirements by modifying natural ground or beach， compared with the slide launch ramp, marine airbag has a larger contact area with ship bottom and ground, so the requirement for ground bearing capacity is much less.So the construction cost and period of airbag ship launching ramp will be much saved.
In addition, airbag launching ramp has almost no need for post-maintenance work.
Airbag ship launching ramp has simple requirements: flatness, proper angle, and sufficient ground bearing capacity. Usually it is easy to meet these requirements by modifying natural ground or beach， compared with the slide launch ramp, marine airbag has a larger contact area with ship bottom and ground, so the requirement for ground bearing capacity is much less.So the construction cost and period of airbag ship launching ramp will be much saved.
In addition, airbag launching ramp has almost no need for post-maintenance work.
Airbag:
People can stagger airbags for different width ships’ launching. Ship launching airbag can be used repeatedly, with an average life span of 6 years. Even if the airbag is punctured or cut during use, the airbag performance and safety are almost unchanged after good repair. The cost of airbags can be almost negligible when it is averaged to the cost of dozens of launches.
People can stagger airbags for different width ships’ launching. Ship launching airbag can be used repeatedly, with an average life span of 6 years. Even if the airbag is punctured or cut during use, the airbag performance and safety are almost unchanged after good repair. The cost of airbags can be almost negligible when it is averaged to the cost of dozens of launches.
Water level:
Being able to adapt to big scope of water level is a great advantage of airbag ship launching. For traditional slide launching, if the water level is insufficient, accidents such as stern fall are prone to cause damage to the hull structure. However, ship launching with airbags can realize the safe launching of the ship under a wide range of water level changes.
Being able to adapt to big scope of water level is a great advantage of airbag ship launching. For traditional slide launching, if the water level is insufficient, accidents such as stern fall are prone to cause damage to the hull structure. However, ship launching with airbags can realize the safe launching of the ship under a wide range of water level changes.
Feature
• 14409 standard
• High-Pressure Design
• High bearing capacity and gas tightness
• High resistance to knead ability
• Higher flexibility and shock absorption ability
• The new structure design of accounts at the end
• Optimization of structural layout
• Equipped complete with accessories
• Durable anti-aging abilities and wear characteristics
• Customized size and printing
• 14409 standard
• High-Pressure Design
• High bearing capacity and gas tightness
• High resistance to knead ability
• Higher flexibility and shock absorption ability
• The new structure design of accounts at the end
• Optimization of structural layout
• Equipped complete with accessories
• Durable anti-aging abilities and wear characteristics
• Customized size and printing
