Quick Details
-
Speed range:
-
10 to 120km/h
-
Speed limit deviation:
-
± 1km/h
-
Operating voltage range:
-
9-28V
-
Low temperature resistance:
-
-40℃
-
Temperature resistance:
-
+ 85℃
-
Rated power consumption:
-
2W
-
product name:
-
School Bus Speed Limiter Device, electronic speed controller
-
brand:
-
nine chip
-
Application temperature:
-
-35℃ to -50℃
-
performance indicators: frequency:
-
20-50HZ
Quick Details
-
Function:
-
Speed Limit
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Speed range:
-
10 to 120km/h
-
Speed limit deviation:
-
± 1km/h
-
Operating voltage range:
-
9-28V
-
Low temperature resistance:
-
-40℃
-
Temperature resistance:
-
+ 85℃
-
Rated power consumption:
-
2W
-
product name:
-
School Bus Speed Limiter Device, electronic speed controller
-
brand:
-
nine chip
-
Application temperature:
-
-35℃ to -50℃
-
performance indicators: frequency:
-
20-50HZ

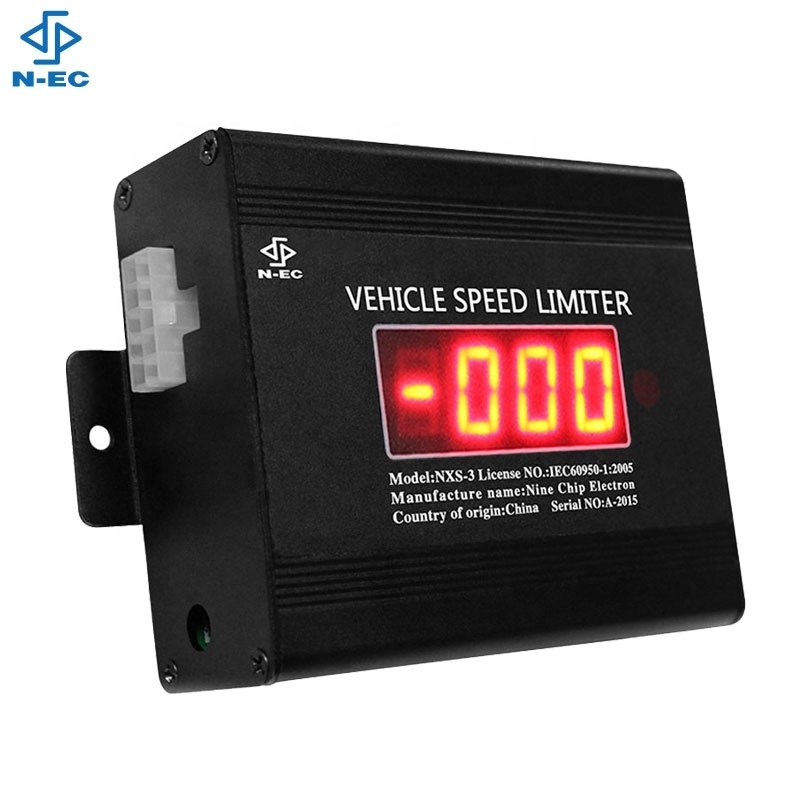

Vehicle speed limiter NXS-3 high quality
1.Product features:
(1). Function: limiting speed.
(2). Speed range: 10 to 120km/h.
(3) .Speed limit deviation: ± 1km/h.
(4). The operating voltage range of the products: 9-28V.
(5). Application temperature:-35℃ to 80℃.
(6). Rated power consumption 2W.
(7). Apply to all kind of vehicle
2.Technical parameters
1.Application temperature:-35℃ to -50℃, relative humidity is not more than 90%
should be able to work properly.
2.Speed range: 10 to 120km/h.
3.Speed limit deviation: ± 1km/h
4.The operating voltage range of the products: 9-28V
5.Low temperature resistance:-40℃
6.Temperature resistance: + 85℃
7.Vibration-resistance performance indicators: frequency 20-50HZ acceleration 1g
8.Electromagnetic compatibility: the Group of impulse voltage 4000V
9.Rated power consumption 2W
The vehicle speed limiter can be installed in the car, bus, school bus, truck, garbage truck,oil tank truck,ect!
If the driver drived the car over- speed, so many traffic accident can be happened.
So, choose NXS-3 vehicle speed limiter is your best choice!
We have Original PVC cover and normal PVC cover, the OEM will be welcome! No problem!
Connection way:
1. The standard connection way it so connect the fuel pump:
The green wire of vehicle speed limiter should be connected the fuel pump in the car. The other side which connect the fuse box should be cut off and reconnect with the green wire.
2. If some vehicles have no fuel pump, please connect to the key switch.
The green wire should be connected the ON point. Cut the wire behind the ON point and green wire reconnected it. The fitter can see that there is the key switch. Turning the key , before turning, the volts is 0V, ( the fitter can measure voltages with multimeter). But after turning the key, it is 12V. Just connect this wire.
The vehicle speed limiter can be installed in the vehicle with electronic pedal and mechanical pedal!
Still Not Clear?
No Problem! Please check our install vedio in Youtube:
https://www.youtube.com/watch?v=YEkegriMwVs
The speed and the pluse and be set via the software:
The installed picture in the car from some of our customers:
The size and the package:
