Quick Details
-
Input Voltage:
-
220V 50Hz
-
Dimensions:
-
63-200mm
-
Use:
-
Butt fusion for plastic pipe and fittings
-
Power (kW):
-
3.65KW
-
Weight (KG):
-
121 KG
-
Product Name:
-
WP200A
-
Application:
-
PE, PP, HDPE
-
Keywords:
-
Pipe Butt Welding Machine
-
Welding range:
-
60-200MM
-
COLOR:
-
YELLOW
-
Type:
-
Hydraulic
-
Heating Plate Temperature:
-
270℃
-
Heating Plate Power:
-
1.8KW
-
Planing tool:
-
1.1KW
-
Pressure adjusting:
-
0-6.3Mpa
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
welping
-
Input Voltage:
-
220V 50Hz
-
Dimensions:
-
63-200mm
-
Use:
-
Butt fusion for plastic pipe and fittings
-
Power (kW):
-
3.65KW
-
Weight (KG):
-
121 KG
-
Product Name:
-
WP200A
-
Application:
-
PE, PP, HDPE
-
Keywords:
-
Pipe Butt Welding Machine
-
Welding range:
-
60-200MM
-
COLOR:
-
YELLOW
-
Type:
-
Hydraulic
-
Heating Plate Temperature:
-
270℃
-
Heating Plate Power:
-
1.8KW
-
Planing tool:
-
1.1KW
-
Pressure adjusting:
-
0-6.3Mpa
Recommend Products
Please contact us and learn more !
|
Model
|
WP200A
|
|
Max temperature
|
270℃
|
|
Temperature deviation
|
±5°C
|
|
Set temperature
|
170~270°C
|
|
Pressure range
|
0-6.3Mpa
|
|
Applicable
|
PE PPR PB PVDF
|
|
Welding range
|
63 - 200 mm
|
|
Input voltage
|
220V, 50Hz
|
|
Total power
|
3.65kw
|
|
Heating plate power
|
1.8kw
|
|
Planing tool power
|
1.1kw
|
|
Hydraulic unit power
|
0.75kw
|
|
Gross weight
|
121kg
|
|
Total Volume
|
0.415cbm
|

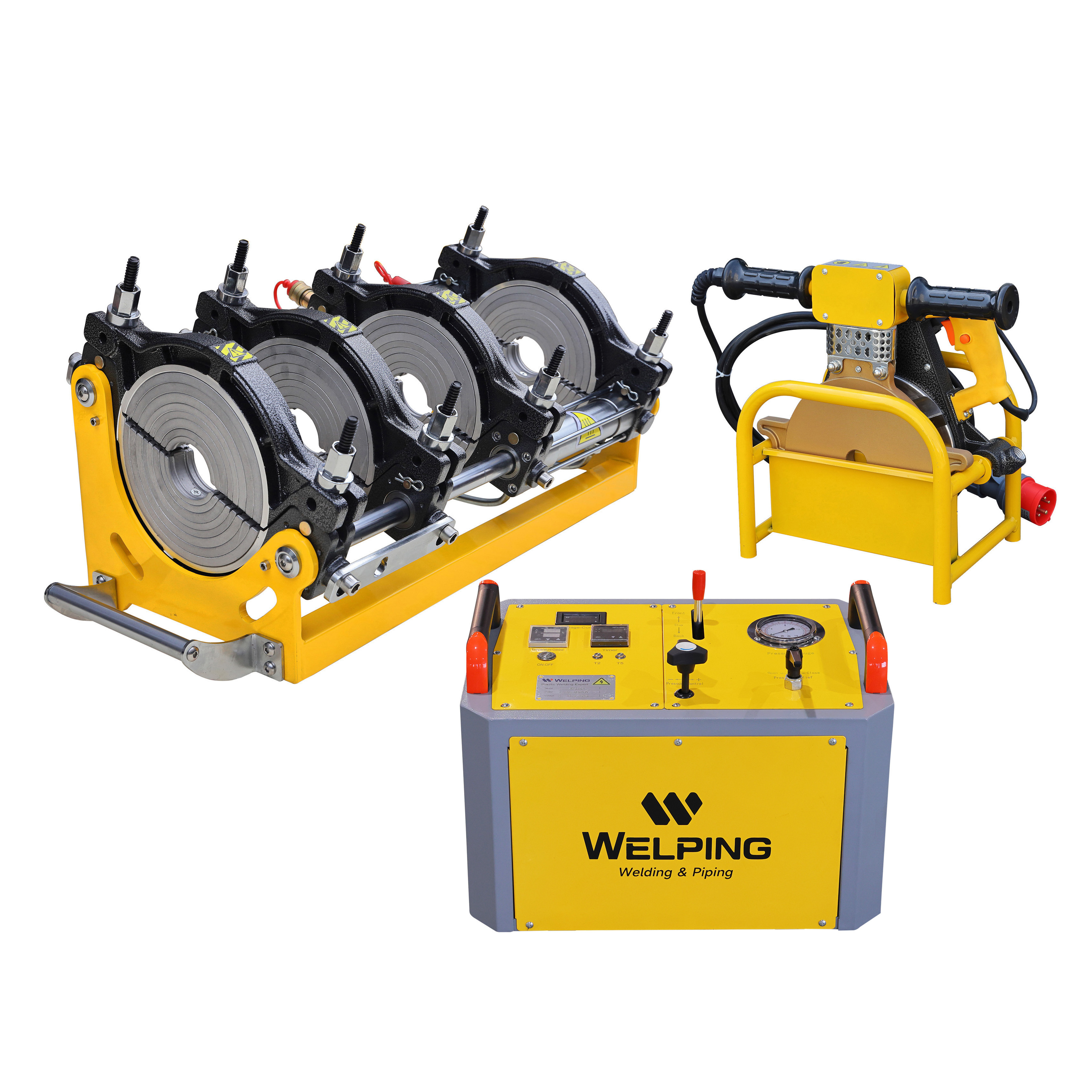

Product Description
- 4 sets quick coupling helps operator to prepare the machine better before and after welding
-Using integral shaft ensure the chassis strength
-Cast aluminum body with Anti-stick PEFT coating from Daikin
-Qualified built-in heating elements, swift and steady temperature rising
-Standard equipped with aviation plug and heavy duty cable, ensures operation safety
-ensures
no loosing and stucking
in
operation
-Powerful copper-wiring motor Durable,
double edges HSS blade
-connected wires and more reasonable layout .
-connected wires and more reasonable layout .
-The
control panel centralized
in the hydraulic unit
enables operators
to set welding parameter and execute welding procedure
conveniently .
- Enclosure design , shielding splash and dirt and wheels, for easy transportation
conveniently .
- Enclosure design , shielding splash and dirt and wheels, for easy transportation
Application
