Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kaho
-
Model Number:
-
NA
-
Product name:
-

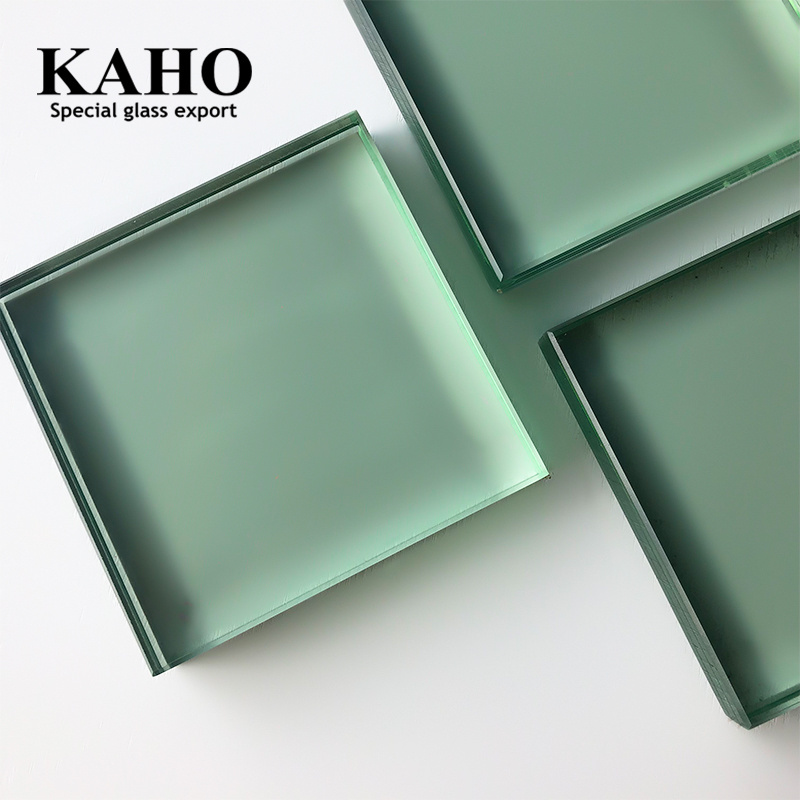

Armoured bulletproof glass
-
MQO:
-
1sqm
-
Features:
-
Anti-ultraviolet,Sound-proof,Strong security,etc
-
Keywords:
-
Bullet proof glass window,bullet proof glass price
-
Size:
-
Custom Sizes
-
PVB Thickness:
-
0.38mm-3.04mm
-
Certificate:
-
CCC/ISO9001/CE
-
Packing:
-
Wooden Cases
-
Edge:
-
Fine Polished Edge
Quick Details
-
Application:
-
Workshop, School, Home Office, Living Room, Mall, Apartment, Villa, Hotel
-
Usage:
-
Industrial, Bulletproof
-
Thickness:
-
25-50mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
kaho
-
Model Number:
-
NA
-
Product name:
-
Armoured bulletproof glass
-
MQO:
-
1sqm
-
Features:
-
Anti-ultraviolet,Sound-proof,Strong security,etc
-
Keywords:
-
Bullet proof glass window,bullet proof glass price
-
Size:
-
Custom Sizes
-
PVB Thickness:
-
0.38mm-3.04mm
-
Certificate:
-
CCC/ISO9001/CE
-
Packing:
-
Wooden Cases
-
Edge:
-
Fine Polished Edge
Product Description
Bulletproof glass is a kind of laminated glass, which is composed of multiple layers of glass and film. The thickness is 20mm or more, and some bulletproof glass with higher requirements can reach 50mm in thickness.
According to the different thickness of glass and laminated film, it can effectively resist pistols, tommy gun, rifles and others different guns’ shooting.
Bulletproof glass is widely used in security facilities, automobiles, airplanes and banking places, etc. It is a high-grade safety glass.
Bullet-proof glass corresponding to bulletproof level
|
Level（CN）
|
Gun type
|
Bullet types
|
Bullet speed（m/s）
|
Distance
(m)
|
Thickness
(mm)
|
|
F64
|
64 type 7.62mm hand gun
|
al-core 4.72-4.78g
|
300-320
|
5
|
19
|
|
F54
|
54 type 7.62mm hand gun
|
steel-core 5.56-5.69g
|
420-440
|
5
|
21
|
|
F79
|
79 type 7.62mm micro-submachine gun
|
steel-core 5.56-5.69g
|
480-515
|
10
|
25
|
|
F56/AK47
|
56 type 7.62mm submachine gun
|
steel-core 7.75-8.05g
|
710-725
|
10
|
35
|
|
FJ79
|
79 type 7.62mm Sniper rifle
|
steel-core 9.45-9.75g
|
830-870
|
10
|
40
|
|
F53(armour-piercing bullet)
|
53 type 7.62mm Sniper rifle
|
armour-piercing bullet 9.45-9.75g
|
830-870
|
10
|
68
|
Any other thickness can customized as per required, the bulletproof glass size normally customized as per clients required.
If you are interested in our products or want free samples,please feel free to send us an inquiry
If you are interested in our products or want free samples,please feel free to send us an inquiry
Product Application
Look The Test
Test Standards
1. EN 14449: glass in building - laminated glass and laminated safety glass
2. EN 12600: glass in building - pendulum test
3. EN 12150: thermally toughened sode lime silicate safety glass
4. ASTM C1172: laminated architectural flat glass
5. ASTM C1048: heat treated flat glass
6. ANSI Z97 1: safety glazing materials used in buildings
7. GB 11614: flat glass
8. GB 15763: safety glazing materials used in buildings
9. ISO 12543-1~6: glass in building - laminated glass and laminated safety glass
10. AS/NZS 2208: safety glazing materials in building
1. EN 14449: glass in building - laminated glass and laminated safety glass
2. EN 12600: glass in building - pendulum test
3. EN 12150: thermally toughened sode lime silicate safety glass
4. ASTM C1172: laminated architectural flat glass
5. ASTM C1048: heat treated flat glass
6. ANSI Z97 1: safety glazing materials used in buildings
7. GB 11614: flat glass
8. GB 15763: safety glazing materials used in buildings
9. ISO 12543-1~6: glass in building - laminated glass and laminated safety glass
10. AS/NZS 2208: safety glazing materials in building
