This product adopts double sivler plating ontact structure.It improves service life and capacity.
Pressing down the copper part to separate the contacts then there are 4 contacts with white silver covers.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ZPS-2C-3.0
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
Low pressure
-
Application:
-
water pump
-
Rated voltage:
-
230V;110V
-
Frequency:
-
50/60HZ
-
Starting pressure setting:
-
3.0KG
-
Material:
-
Plastic
-
Pressure Range:
-
3.0-4.0kg
-
Certification:
-
ce
Quick Details
-
Max. Voltage:
-
230V
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
ZOZHI
-
Model Number:
-
ZPS-2C-3.0
-
Max. Current:
-
10A
-
Max. Working Pressure:
-
Low pressure
-
Application:
-
water pump
-
Rated voltage:
-
230V;110V
-
Frequency:
-
50/60HZ
-
Starting pressure setting:
-
3.0KG
-
Material:
-
Plastic
-
Pressure Range:
-
3.0-4.0kg
-
Certification:
-
ce
Product Description
Ac water pump electronic mechanical pressure control switch
1. Rated Voltage: 230V;110V;
2. Frequency:50/60Hz;
3. Application:water pump
2. Frequency:50/60Hz;
3. Application:water pump
|
ZPS-2 Technical Parameters
|
|
|
||
|
Rated Voltage
|
230V;110V
|
|
||
|
Frequency
|
50/60HZ
|
|
||
|
Rated Current
|
5A;10A
|
|
||
|
Min.cut-in
|
12PSI
|
|
||
|
Max.cut-out
|
45PSI
|
|
||
|
Pressure range
|
1.1-1.8bar (according to requirements of customers)
|
|
||
|
Bases
|
Zin alloy
|
Plastic
|
||
|
Contacts
|
Double
|
Single;Double
|
||
|
Screw type
|
Female
|
Male
|
||
|
Screw size
|
3/8"
|
1/4"
|
||
|
Mechanical pressure switch type
|
|
|
|
Pressure 0.8-1.5kg
|
Suitable for 100w booster pump
|
|
|
Pressure 1.1-1.8kg
|
Suitable for 120w/125w/150w booster pump
|
|
|
Pressure 1.3-2.3kg
|
Suitable for 250w/300w/370w booster pump
|
|
|
Pressure 2.0-3.0kg
|
Suitable for 550wbooster pump
|
|
|
Pressure 2.5-3.5kg
|
Suitable for 550w/750w booster pump
|
|

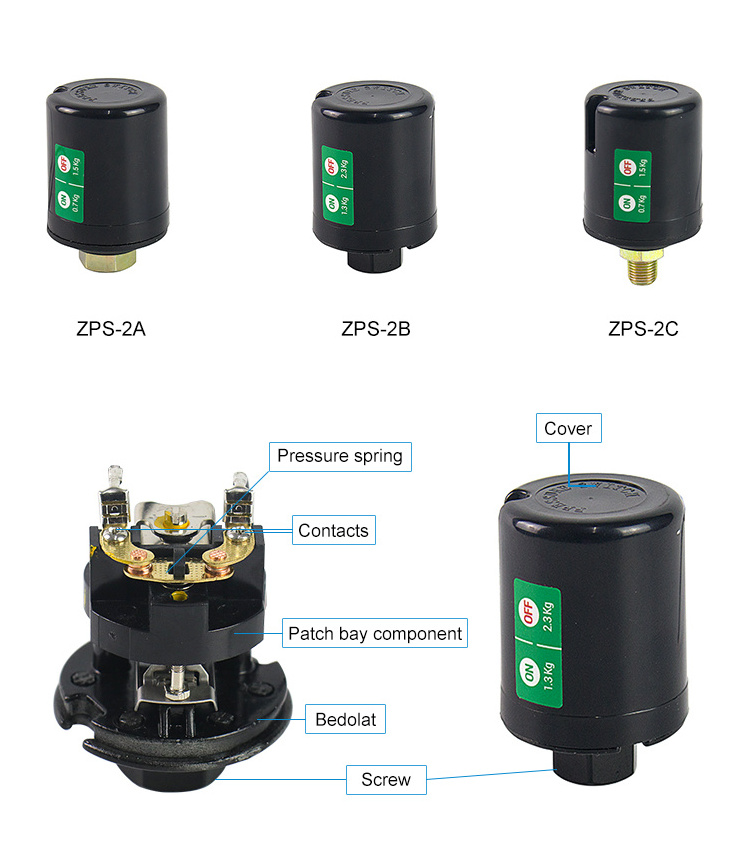

Products Show
SILVER PLATING
CONTACT WITH LONG SERVICE
ZINC ALLOY BASE
POWDER PAINTING PROCESS
Zinc alloy base. Powder painting proces features
High temperature resistance,rust prevention,smooth and beautiful appearance an insulation.
PRESSURE LABEL
THICK SILVER PLATING CONTACT
ZINC ALLOY BASE
|
Model
|
ZPS-2
|
|
Dimension
|
52*26.5*19CM
|
|
Quantity
|
100PCS/CTN
|
|
N.W(kg)
|
17 KGS
|
|
G.W(kg)
|
19 KGS
|
|
Model
|
Pressure Range
|
Screw Type
|
Base Material
|
|
ZPS-2A-0.8
|
0.8-1.5kg
|
Female 3/8"
|
Plastic
|
|
ZPS-2B-0.8
|
0.8-1.5kg
|
Female 3/8"
|
Zin alloy
|
|
ZPS-2C-0.8
|
0.8-1.5kg
|
Male 1/4"
|
Plastic
|
|
ZPS-2A-1.1
|
1.1-1.8kg
|
Female 3/8"
|
Zin alloy
|
|
ZPS-2B-1.1
|
1.1-1.8kg
|
Female 3/8"
|
Plastic
|
|
ZPS-2C-1.1
|
1.1-1.8kg
|
Male 1/4"
|
Zin alloy
|
|
ZPS-2A-1.3
|
1.3-2.3kg
|
Female 3/8"
|
Plastic
|
|
ZPS-2B-1.3
|
1.3-2.3kg
|
Female 3/8"
|
Zin alloy
|
|
ZPS-2C-1.3
|
1.3-2.3kg
|
Male 1/4"
|
Plastic
|
|
ZPS-2A-2.0
|
2.0-3.0kg
|
Female 3/8"
|
Zin alloy
|
|
ZPS-2B-2.0
|
2.0-3.0kg
|
Female 3/8"
|
Plastic
|
|
ZPS-2C-2.0
|
2.0-3.0kg
|
Male 1/4"
|
Zin alloy
|
|
ZPS-2A-2.5
|
2.5-3.5kg
|
Female 3/8"
|
Plastic
|
|
ZPS-2B-2.5
|
2.5-3.5kg
|
Female 3/8"
|
Zin alloy
|
|
ZPS-2C-2.5
|
2.5-3.5kg
|
Male 1/4"
|
Plastic
|
|
ZPS-2A-3.0
|
3.0-4.0kg
|
Female 3/8"
|
Zin alloy
|
|
ZPS-2B-3.0
|
3.0-4.0kg
|
Female 3/8"
|
Plastic
|
|
ZPS-2C-3.0
|
3.0-4.0kg
|
Male 1/4"
|
Zin alloy
|
