Quick Details
-
Color:
-
Red
-
Panel Size:
-
., .
-
Place of Origin:
-
Taiwan, China
-
Model Number:
-
AD56TT-20URB-CA
-
use:
-
other
-
Pixel Pitch:
-
., .
-
Specification:
-
other
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
Super Brite/ All Brite
-
Color:
-
Red
-
Panel Size:
-
., .
-
Place of Origin:
-
Taiwan, China
-
Model Number:
-
AD56TT-20URB-CA
-
use:
-
other
-
Pixel Pitch:
-
., .
-
Specification:
-
other
Specification

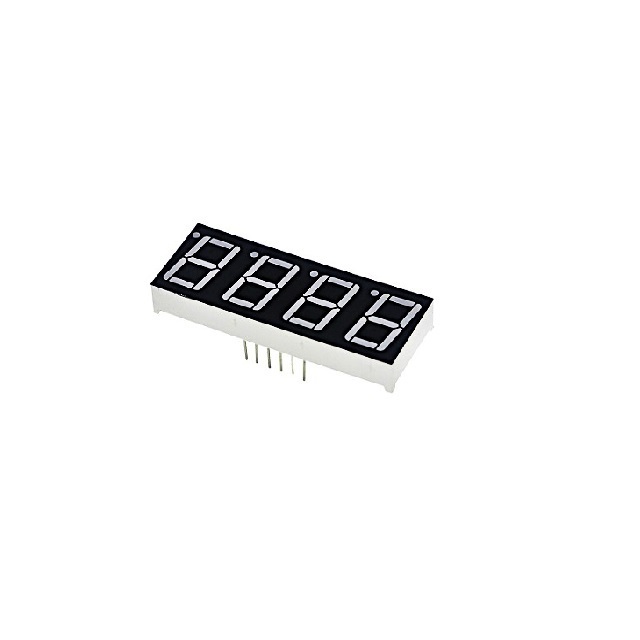

0.56 inch 4 Digit Red LED Display
AD56TT-20URB-CA
Product Description
Package Dimensions
Features
•
14.22mm (0.56 inch ) Digit Height
•
Excellent Character Appearance
• Common Anode
• I.C. Compatible
• LOW Power Consumption
•
Pb Free Products
•
Black Face, White Segments
Absolute Maximum Rating (Ta=25℃)
|
Parameter
|
Symbol
|
Super Red
|
Unit
|
|
Power Dissipation Per Segment
|
PD
|
60
|
mW
|
|
Continuous Forward Current Per Segment
|
IAF
|
30
|
mA
|
|
Peak Forward Current Per Segment
(1/10 Duty Cycle,0.1ms Pulse Width) |
IPF
|
100
|
mA
|
|
Derating Linear From 25℃ Per Segment
|
-
|
0.4
|
mA/℃
|
|
Reverse Voltage Per Segment
|
VR
|
5
|
V
|
|
Operating Temp.
(Detail see page 5 Fig.3) |
Topr
|
-35 ~ +85
|
℃
|
|
Storage Temp.
|
Tstg
|
-35 ~ +85
|
℃
|
Electro-optical Characteristic (Ta=25℃)
