Quick Details
-
Rated Lifting Moment:
-
Moment
-
Span:
-
12m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Weight (KG):
-
5600 kg
-
Product name:
-
Hydraulic offshore crane barge ship cargo crane for boat crane
-
other Main electrical part:
-
Siemens or Schneider
-
slewing angle(degree):
-
360/270
-
Type:
-
Fixed
-
Color:
-
Customized Color Acceptable
-
Product type:
-
Marine Hydraulic crane
-
Key words:
-
Ship Crane
-
Name:
-
Small Crane Barge for Sale
-
Slewing angle:
-
360 Degree Hydraulic Slewing
-
Max.Lifting Capacity:
-
Customized
Quick Details
-
Application:
-
Marine
-
Max. Lifting Height:
-
30m
-
Rated Loading Capacity:
-
5t
-
Rated Lifting Moment:
-
Moment
-
Span:
-
12m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SGY
-
Weight (KG):
-
5600 kg
-
Product name:
-
Hydraulic offshore crane barge ship cargo crane for boat crane
-
other Main electrical part:
-
Siemens or Schneider
-
slewing angle(degree):
-
360/270
-
Type:
-
Fixed
-
Color:
-
Customized Color Acceptable
-
Product type:
-
Marine Hydraulic crane
-
Key words:
-
Ship Crane
-
Name:
-
Small Crane Barge for Sale
-
Slewing angle:
-
360 Degree Hydraulic Slewing
-
Max.Lifting Capacity:
-
Customized
Hydraulic offshore crane barge ship cargo crane for boat crane
Product Description

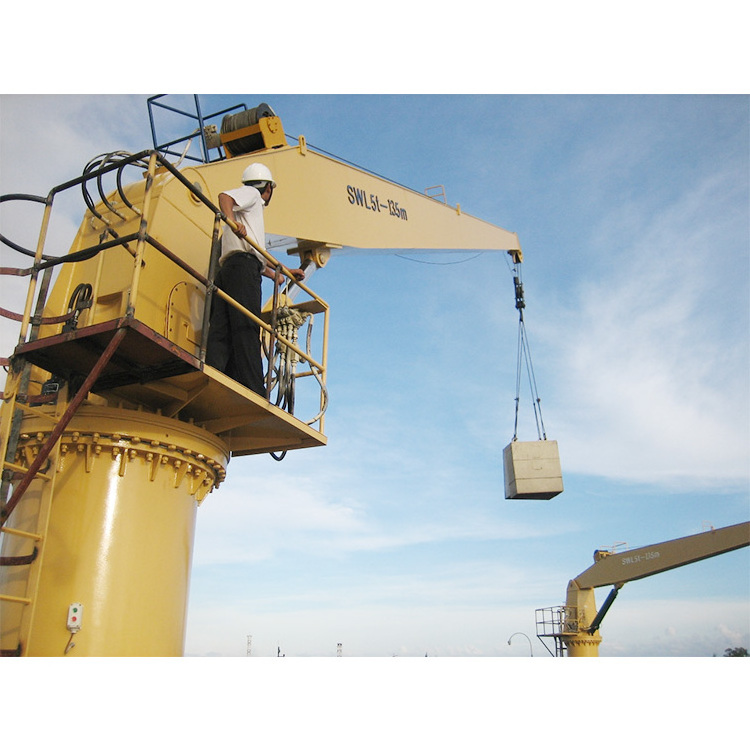

The deck crane is a kind of ship's hoisting equipment usually set in the cabin deck which contents high technology of electricity, liquid, machine integration of deck. With the advantageof easy manipulation, impact resistance, good performance,safety and reliability, it can make a good use of the limited space of port, yard and other places. It has high working efficiency and good adaptability to the goods, especially for the dry bulk cargo handling.
Sketch
Specification
|
Type
|
Rated
load (SWL) |
Max.
working
radius |
Lifting
speed M/min |
Swing
speed (r/min) |
Amplitude
time (m) |
Lifing
height (m) |
Rotary
range (°) |
Allowing
inclination (trim.heel) |
Power
(KW) |
|
YQ
|
0.5
|
5-12
|
1
|
15
|
60
|
30
|
360
|
2º/5º
|
7.5
|
|
|
1
|
6-12
|
1
|
15
|
60
|
30
|
360
|
2º/5º
|
11
|
|
|
1.5
|
6-14
|
1
|
15
|
60
|
30
|
360
|
2º/5º
|
11
|
|
|
2
|
8-16
|
1
|
15
|
60
|
30
|
360
|
2º/5º
|
15
|
|
|
3
|
8-18
|
0.8
|
13-15
|
70
|
30
|
360
|
2º/5º
|
22
|
|
|
5
|
10-20
|
0.75
|
12-15
|
80
|
30
|
360
|
2º/5º
|
37
|
|
|
8
|
12-20
|
0.75
|
10-15
|
100
|
35
|
360
|
2º/5º
|
55
|
|
|
10
|
12-20
|
0.7
|
10-15
|
100
|
35
|
360
|
2º/5º
|
75
|
|
|
15
|
12-22
|
0.6
|
10-15
|
110
|
35
|
360
|
2º/5º
|
90
|
|
|
20
|
16-25
|
0.6
|
10-15
|
120
|
40
|
360
|
2º/5º
|
125
|
Details Images
Packing & Delivery
Package:
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Delivery:
1. If the size of whole crane are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation;
3. Transport ways are based on reducing cost for you and keep the crane performance!
