Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Weight:
-
as per drawing
-
Chemical Composition:
-
Mn, C
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hualian
-
Model Number:
-
steel grating
-
Name:
-
Galvanized Steel Grating
-
Grating type:
-
Forge-welded
-
Surface treatment:
-
Hot Dipped Galvanized
-
Bearing bar type:
-
Serrated
-
Standard:
-
BS4592
-
HDG Standard:
-
ASTMA123
-
Raw material:
-
Low Carbon Steel Wire Q235
-
Certificate:
-
ISO9001:2015
-
Keyword:
-
Steel Grates Grating
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Return and Replacement, steel
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Weight:
-
as per drawing
-
Chemical Composition:
-
Mn, C
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
hualian
-
Model Number:
-
steel grating
-
Name:
-
Galvanized Steel Grating
-
Grating type:
-
Forge-welded
-
Surface treatment:
-
Hot Dipped Galvanized
-
Bearing bar type:
-
Serrated
-
Standard:
-
BS4592
-
HDG Standard:
-
ASTMA123
-
Raw material:
-
Low Carbon Steel Wire Q235
-
Certificate:
-
ISO9001:2015
-
Keyword:
-
Steel Grates Grating

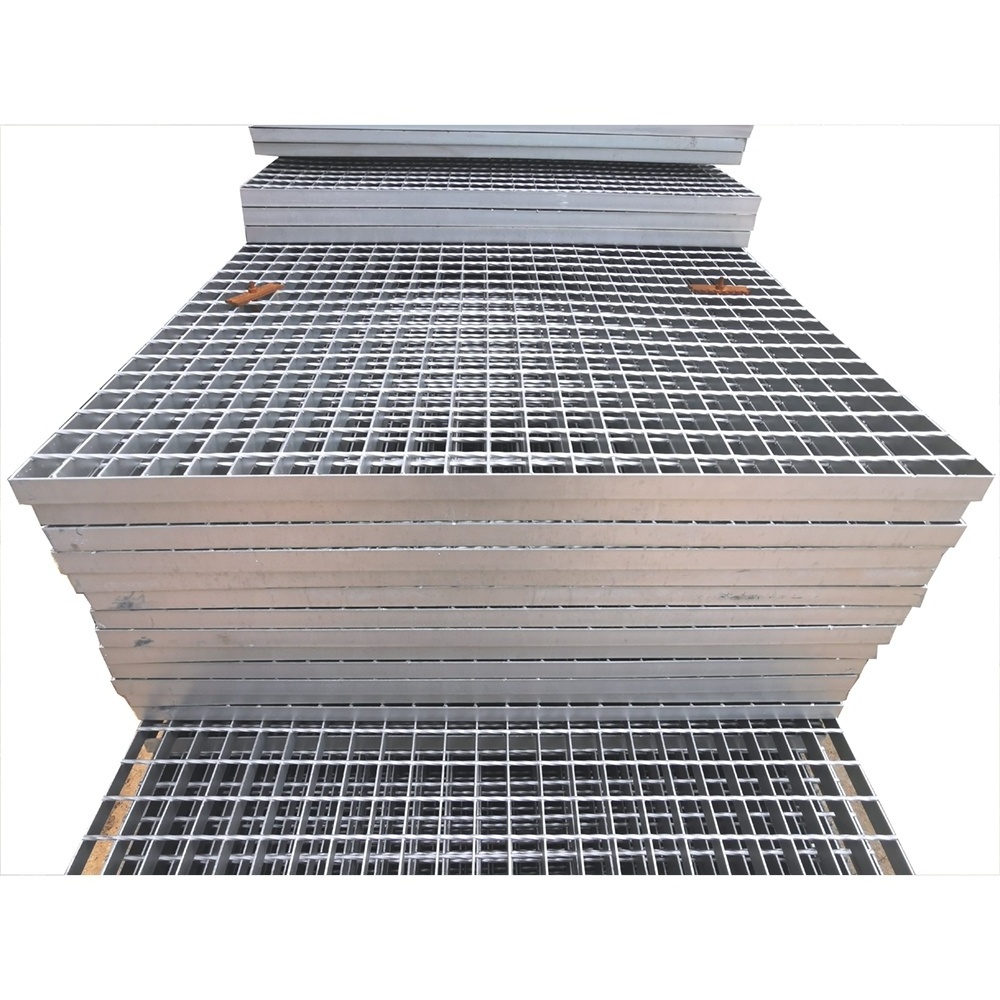

Galvanized Press-Locked Steel Graings
1. Brief Introduction of press locked steel gratings
With Press-Locked Grating the cross bars and bearing bars are notched and pressed together through a high pressure manufacturing process. The result is a bi-direction flush surface that assures a firm, rigid connection and makes it aesthetically appealing for architectural applications. It is available from stock in twp bearing bars heights, in plain or corrosion-resistant galvanized steel, or aluminum. A variety of other bar heights, bar spacings and materials is available by special order.
2. Common Steel Grating Specification
1) Bearing bar size (mm): 25 x 3; 25 x 5;30 x 3; 30 x 5;32 x 3; 32 x 5; 35 x 3;35 x 5.....
2) Bearing bar pitch(mm): 20;30;34;40;50;60.....
3) Cross bar pitch(mm): 50;100;38.....
3. Surface Treatment
1) HDG(hot dip galvanization); Painted; Untreated
2) Galvanization Standard
4. Grating Standard
1) China: YB/T4001-1998
2) USA: ANSI/NAAMM (MBG531-88)
3) UK: BS4592-1987
4) Australia: AS1657-1985
5) Japan: JJS
1. Our engineers can design the shop drawing according to your projects and create 3D model.
2. Free samples can be provided.
3. The package method can be custimized.
4. We support the third party organization to come our factory for inspection.
5. The after-sale service and installation method can be provided.
Project show
Our steel gratings have been wide used in many industrial projects and municipal construction, such as refinery plant, power plant, chemical plant, offshore drilling platform, maintenance platform, water treatment plant, mine field etc.
Our experienced projects as below:
1. SBM LIZA UNITY PROJECT
2. Outotec Project
3. BHP SOUTH FLANK PROJECT
4. Mining project
Packing details:
1. stick the label on each grating, the panel number will be marked on the label.
2. insert the steel bracket through the gratings from bottom to the top to fix the package. if the grating panel's size is less than 1500mm*1000mm, 4 pcs steel brackets per package. if more than 1500mm*1000mm, the steel brackets will be added accordingly.
3. bundle the gratings with the PVC tape.
4.Attach a thermoplastic tag to each package. Accordingly to th tag, our clients can find each panel easily and swiftly.
5. wrap the gratings with plastic films.
