- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Heli
-
Fork Length:
-
1220mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
4760*1995*2500 mm
-
Type:
-
Powered Pallet Truck
-
Mast type:
-
2-stage, 3-stage
-
Load Center:
-
500mm
-
Free lift:
-
205mm
-
Turning Radius:
-
3300mm
-
Tire type:
-
Pnenumatic solid tire white tire
-
Product Name:
-
Heli CPCD50 5 ton diesel forklift for sale
-
Certification:
-
ISO,CE
Quick Details
-
Min. Lifting Height:
-
85mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
Heli
-
Fork Length:
-
1220mm
-
Fork Width:
-
150mm
-
Overall Dimensions:
-
4760*1995*2500 mm
-
Type:
-
Powered Pallet Truck
-
Mast type:
-
2-stage, 3-stage
-
Load Center:
-
500mm
-
Free lift:
-
205mm
-
Turning Radius:
-
3300mm
-
Tire type:
-
Pnenumatic solid tire white tire
-
Product Name:
-
Heli CPCD50 5 ton diesel forklift for sale
-
Certification:
-
ISO,CE

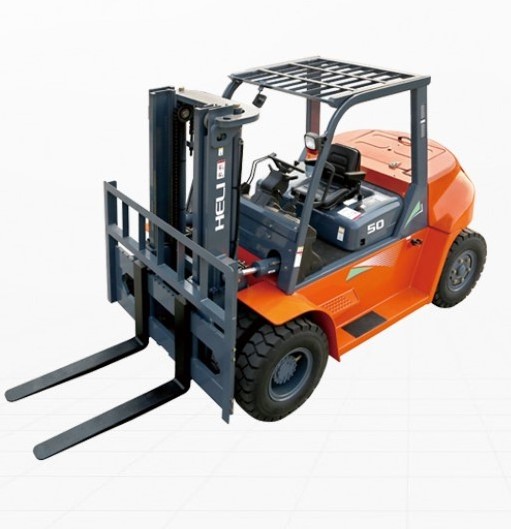

Heli CPCD50 5 ton diesel forklift for sale
Parameter:
|
Brand |
Heli |
|||
|
General |
1 |
Model |
|
CPCD50F |
|
2 |
Rated capacity |
kg |
5000 |
|
|
3 |
Load center |
mm |
500 |
|
|
4 |
Power type |
|
Diesel |
|
|
5 |
Transmission |
|
Hydraulic |
|
|
Dimensions |
6 |
Lifting height (H1) |
mm |
3000 |
|
7 |
Free lifting height |
mm |
150 |
|
|
8 |
Min. turning radius |
mm |
3000 |
|
|
9 |
Min. under-clearance |
mm |
170 |
|
|
10 |
Min. right angle aisle width |
mm |
2750 |
|
|
11 |
Overall length (including fork) (A) |
mm |
4350 |
|
|
12 |
Overall width (B) |
mm |
1400 |
|
|
13 |
Overall height (mast lowered) (H) |
mm |
2330 |
|
|
14 |
Overall height (mast raised) (H2) |
mm |
4265 |
|
|
15 |
Overall height (overhead guard) (H3) |
mm |
2330 |
|
|
16 |
Fork length (A3) |
mm |
1220 |
|
|
17 |
Fork width (B3) |
mm |
150 |
|
|
18 |
Fork thickness (H4) |
mm |
50 |
|
|
Performance |
19 |
Max. driving speed (with/without load) |
km/h |
20/24 |
|
20 |
Max. lifting speed (with load) |
mm/s |
375 |
|
|
21 |
Max. traction (with/without load) |
kN |
31/18 |
|
|
22 |
Gradeability (with/without load) |
% |
15/20 |
|
|
23 |
Tilting angles (forward/backward) (α/β) |
° |
6/12 |
|
|
24 |
Total weight |
kg |
6800 |
|
|
Engine |
25 |
Engine model |
|
LR4A3/4JR3 |
|
26 |
Power |
kw |
59 |
|
|
27 |
Rated speed |
rpm |
2400/2200 |
|
|
28 |
Displacement |
L |
4.3 |
|
|
29 |
No. of cylinder |
|
4 |
|
|
Wheel |
30 |
Front overhang (A1) |
mm |
565 |
|
31 |
Wheel base (A2) |
mm |
2150 |
|
|
32 |
Front tread (B1) |
mm |
1180 |
|
|
33 |
Rear tread (B2) |
mm |
1190 |
|
|
34 |
Front tire |
mm |
300-15 |
|
|
35 |
Rear tire |
mm |
7.00-12 |
|
