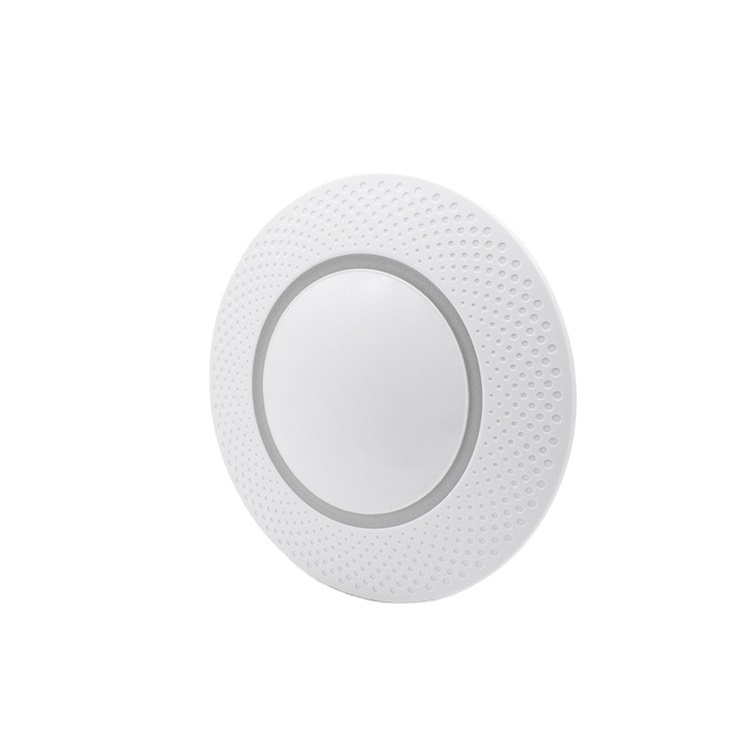

Minew G1smart ble iot ibeacon wifi bluetooth beacon gateway

- Input: DC 5.0V, 1A, micro-USB
- Supports 802.3af PoE standard
- Supports firmware upgrade Over-the-Air
- Operating temperature: -10℃ to 50℃
- Reads multiple BLE devices in the same time
- Supports TCP/HTTP/MQTT/mbed(ARM)
- Built-in RTC and NTP support
- RGB LED string as the status indicator
- Based on OpenWrt 15.05

- 10/100M Ethernet with PoE
- Optional Cellular (coming soon, Q4/2017)
- 3G WCDMA
- 4G LTE
- Battery (inside gateway) 3000mAh, rechargeable
- Net Weight:155g (without battery)
- 1x USB cable, mental fixing and screws

- iBeacon / Eddystone / other BLE Beacon receiver
- BLE sensor reader / receiver
- Asset tracking
- Access control management
- Advertisement promotion
- Indoor location and position
- Industrial automation

Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.
We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.
We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.

Warmly welcome the OEM and ODM projects..

1.Delivery will be arranged by DHL/UPS/Fedex/TNT/EMS, normally it will take 3-7 working days.
2.We can help ship the goods by air line,then you need to go to Air port to take it ,it takes about 2-7 days to arrive .
3. If you have your own express account, we can help call them to pick up the goods in our company.

- Print your logo on the top of bluetooth temperature and humidity sensor;
- Programmer your firmware into iBeacon Module;
- Pre-configure the value of parameter before the shippment;
- PCB can be customized if needed;
- Package can be customized if required;
- Prototyping the casing and mold tool design and injection service.

Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. API 3. Demo APP 4. Configuration APP 5. Instructions

Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.

Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.

Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
