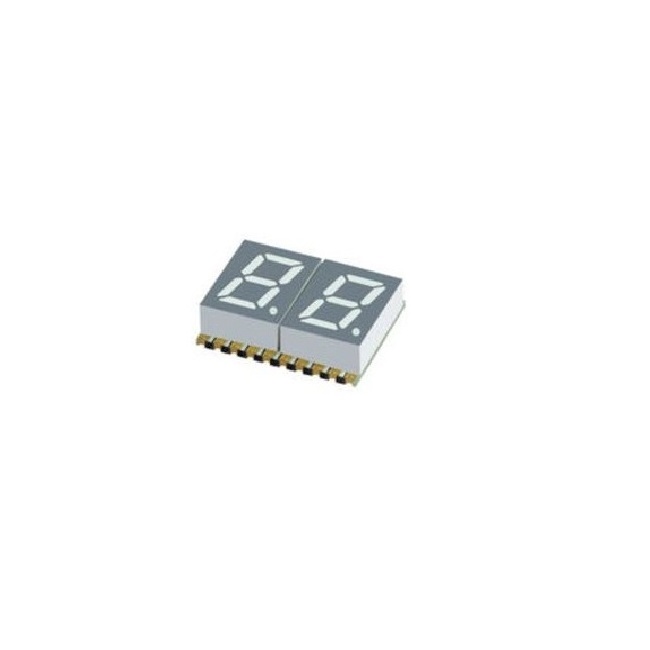

0.56” Dual Digit SMD LED Display
ACS56D-UXG-CX
Product Description
Mechanical Dimensions
Features
•
0.56 inch (14.2mm) digit height.
•
Qualified according to JEDEC moisture sensitivity Level 2a.
• RoHS compliant.
• Low power consumption
• Easy mounting on P.C. board .
Absolute Maximum Rating
|
Parameter
|
Symbol
|
Rating
|
|
Unit
|
|
|
|
|
2
|
M / T / A / V / L / U
|
|
|
|
Power Dissipation Per Dice
|
PAD
|
114
|
70
|
mW
|
|
|
Derating Liner from 25℃ per Dice
|
-
|
0.4
|
0.33
|
mA/℃
|
|
|
Continuous Forward Current Per Dice
|
IAF
|
30
|
25
|
mA
|
|
|
Peak Current Per Dice(duty cycle 1/10,1KHz)
|
IPF
|
100
|
90
|
mA
|
|
|
Reverse Voltage Per Dice
|
VR
|
5
|
5
|
V
|
|
|
Electrostatic discharge(HBM)
|
ESD
|
1000
|
-
|
V
|
|
|
Operating Temp.
|
Topr
|
-40 ~ +105
|
|
℃
|
|
|
Storage Temp.
|
Tstg
|
-40 ~ +105
|
|
℃
|
|
Electro-optical Characteristics
