Quick Details
-
Welding Mode:
-
AC Rolling Seam Welding
-
Welding Diameter:
-
80-1000mm
-
Dimensions:
-
1750*800*1500mm
-
Use:
-
Duct Elbow Roller Seam Welding
-
Voltage:
-
380V 2-phase 50Hz or as customers' requirement
-
Warranty:
-
12 months
-
Weight (KG):
-
800 KG
-
Power (kW):
-
100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Blue and white:
-
Elbow Seam Welding
-
seam welder:
-
Duct seam welder
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE Certificate
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DRAGON WELDING
-
Forming Time:
-
1s-10s adjustable
-
Welding Mode:
-
AC Rolling Seam Welding
-
Welding Diameter:
-
80-1000mm
-
Dimensions:
-
1750*800*1500mm
-
Use:
-
Duct Elbow Roller Seam Welding
-
Voltage:
-
380V 2-phase 50Hz or as customers' requirement
-
Warranty:
-
12 months
-
Weight (KG):
-
800 KG
-
Power (kW):
-
100
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Blue and white:
-
Elbow Seam Welding
-
seam welder:
-
Duct seam welder
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
None
-
Certification:
-
CE Certificate

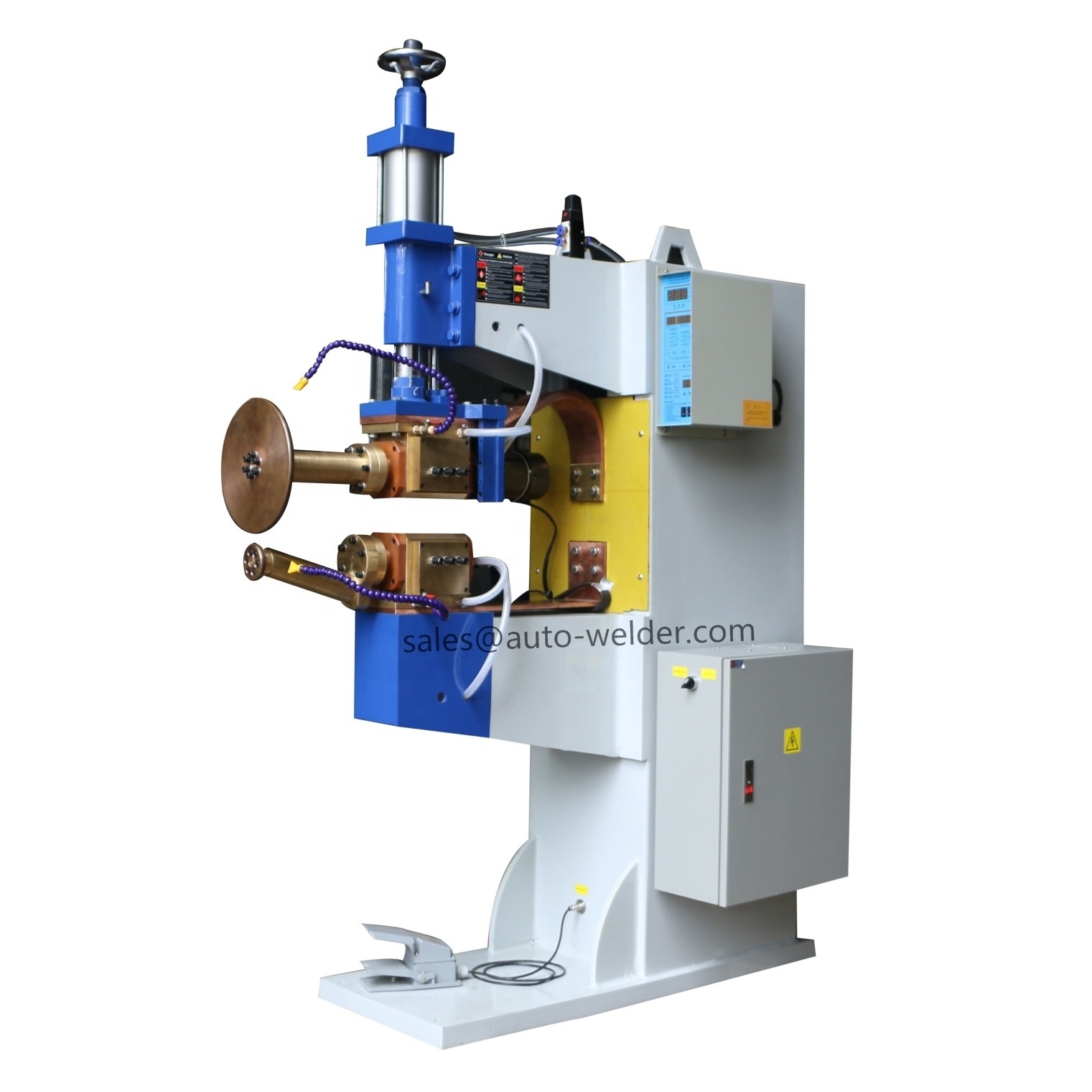

FN Series Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder
Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
FN Series Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder
1. There are two standard Types : Transversal Seam Welding Machine and Longitudinal Seam Welding Machine;
2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to
change the direction of upper welding wheel and the lower welding head and change the welding arm ;
3.Welding wheel adopt three-phase infinitely adjustable-speed drives,convenient to welding speed adjusting,t he two welding wheels have the same tangential speed ;
4.Adopt adjustable stroke cylinder,to avoid collision damage between upper and lower welding wheel;
5. Driven one head and free the other head ;
FN Series Ventilation Duct Elbow Rolling Seam Welding Machine Seam Welder Ventilation equipment welder
|
Item
|
Rated
|
Rated
|
Rated
|
Maximum
|
Electrode
|
Welding
|
Electrode
|
Motor
|
Motor
|
Cooling
|
Weight |
|
KVA |
V |
Hz |
A |
mm |
M/min |
KN |
V |
W |
L/min |
Kg |
|
|
FN-50 |
50 |
380 |
50/60 |
1 5 000 |
50 |
0.6- 2 |
2.5 |
3-380V |
90 |
30 |
500 |
|
FN-75 |
75 |
380 |
50/60 |
1 8 000 |
50 |
0.6- 2 |
3.9 |
3-380V |
150 |
30 |
650 |
|
FN-100 |
100 |
380 |
50/60 |
2 0 000 |
50 |
0.6- 2 |
4.7 |
3-380V |
150 |
30 |
880 |
|
FN-150 |
150 |
380 |
50/60 |
2 6 000 |
50 |
0.6- 2 |
6.1 |
3-380V |
150 |
40 |
1050 |
|
FN-200 |
200 |
380 |
50/60 |
3 1 000 |
50 |
0.6- 2 |
6.1 |
3-380V |
150 |
40 |
1250 |
Our Products include Spot Welders,Butt Welders,Flash Butt Welders,Seam Welders,Medium Frequency Inverter DC Welders,Single-phase/Three phase Secondary R ectifie r Spot Welder,Wire Mesh Welding Machines,
Sink Producing Line,Automatic Argon Arc Seam Welding Machines,High / Ultrasonic / Medium Frequency Induction Heating Machines,and other automatic equipments.
The delivery time for standard machine is about 15-20days.(By Sea,by Air or by Express Way can be choosed)
Q1: What does your factory produce ?
A: We produce and export all kinds of automatic welding machine and induction heating machine. We also can design and develop the welding machines according to your requirements.
Q 2 : What about your standard delivery date ?
A: Usually 1 5 - 2 0 days . O ur company provide just-in-time delivery
Q3:Do your factory sale directly ?
A:YES,it is our factory sale directly,competitive price with high quality and excellent after-sale service.
Our quality products have been export to many countries,such as Germany,Russia,USA,Canada, Argentina,Peru,Turkey,Bazil,Spain,South Asia and Middle East countries.
Q4: Do you have CE Certificate?
A: YES,we have.
Q5: Can you export machines by your factory?
A; YES,we can.
Q 6 : Where are your factory?
A: Our factory located in Nansha District , Guangzhou City, Guangdong Province, China .
Q 7 : Will you send engineer to help installing the welding machine ?
A : Yes, if need, we can send our engineer to go to your factory to help installing our welding machine, train the workers and make sure the welding machine running well before he leave.
Q 8 : If the machine get damaged, what can I do ?
A: In the gu a rantee time (1 year) , we will send the spare parts to you for free. A nd provide the technical consultant for anytime.if more terrible,we can send our engineers to your factory.
We will provide same good after-sale service as the pre-sale service, any of your question s,
we will be replied within 12 hours.
