Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
PECC00122EU
-
Brand Name:
-
Loojoung, OEM
|
Product
|

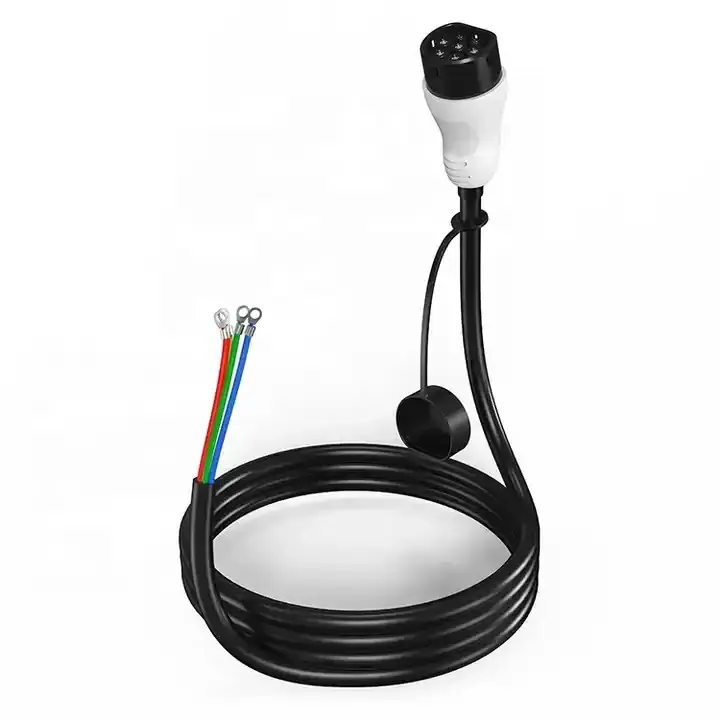

US Standard AC Charging Gun
|
EU Standard AC Charging Gun
|
|
Model No.
|
PECC001US
|
PECC001EU
|
|
Insulation resistance
|
1000 MΩ DC 1000V
|
1000 MΩ DC 1000V
|
|
Rated output current
|
48A(MAX)
|
16/32A
|
|
Rated output voltage
|
110 ~ 220V
|
240V/480V
|
|
Product dimensions
|
158*56*73mm
|
151*63mm/151*50mm
|
|
Projected Capacitive Touch Impedance
|
0.5 mΩ MAX
|
0.5 mΩ MAX
|
|
terminal temperature rise
|
＜ 50 K
|
＜ 50 K
|
|
Protection level
|
IP 55
|
IP 55
|
|
Mechanical life
|
hot plugging >10000 cycles
|
hot plugging ＞10,000 cycles
|
|
Withdrawal force
|
100N
|
100N
|
|
Operating temperature
|
-30℃ ~ 50℃
|
-30℃ ~ 50℃
|
|
Connector
|
SAE-J1772-2017
|
IEC62916-2
|
