Smokeless high carbonization rate bbq charcoal retort kiln for sale

Specification:

Smokeless high carbonization rate bbq charcoal retort kiln for sale

1. No smoke, energy saving.

2. Electric hoist is available.

3. Temperature for charcoal: 420-480 °C

4. CE approved biomass carbonizing kiln

Smokeless high carbonization rate bbq charcoal retort kiln for sale

What is the introduction of our bbq charcoal retort kiln ?

1. This bbq charcoal retort kiln can carbonize wood log, wood briquette, coconut shell and bamboo into good quality charcoal.

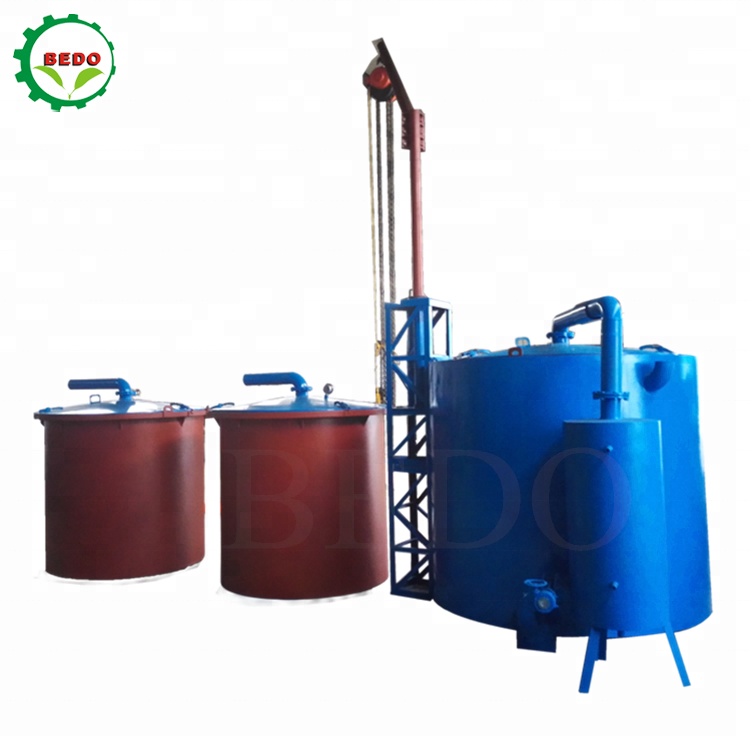

2. It is designed with one outer stove, three inner stoves, one electric hoist and one clean system.

3. Its carbonizing speed is 2.5-3T/24hrs for dry wood with moisture less than 8% or wood briquettes.

What is the specification of our charcoal retort kiln?

Smokeless high carbonization rate bbq charcoal retort kiln for sale

What are the advantages of our charcoal retort kiln?

1. Easy to operate and maintain, more safety, energy saving.

2. High carbonization rate, no smoking, little pollution, high efficiency.

3. Newly developed carbonization stove, which can dry the materials with the superfluous energy produced in the process of carbonization, 6-8 hours per stove and can work continuously.

4. The tube of fume extraction will recycle the gas flow which come from the inner stove during the carbonizing process for continually warming the stove, and it will save 70% energy consumption and recycle 95% smoke.

What is the working principle of our charcoal retort kiln?

Put the raw material into the inner stove, hoist it into the outer stove for carbonizing, when one inner stove finished the carbonization, hoist out for natural cooling and then hoist the second inner stove into the outer stove for carbonizing, the similar process for the third inner stove.

Three inner stoves continuously work in turn to improve the productivity, with smoke clean system to protect the environment.

Structure of the charcoal retort kiln

1. Outer stove

The outer stove consists of three parts: heating chamber, stove body and the heat preservation layer.

The raw material of outer stove is heat resistant steel plate and heat preservation refractory materials.

2 . Inner stove

The inner stove consists of stove body and the sealing top cap. The material of inner stove is heat resistant steel plate and special steel boiler plate. And the steel plate thickness is 8mm.  The three inner stoves can be stacked in the outer stove together, which will save a lot of space and reduce the freight cost.

3. Exhaust smoke pipe

In the process of carbonizing, some smoke will be produced. The combustible smoke can return to the furnace through purifying tube. The purified combustible smoke can flow into the heating chamber of the outer furnace for heating the stove again.

4. Clean system

This system includes purification tank and heat exhaust cycle pipe. The clean system is designed to purify the incombustible smoke and filter the wood tar. In the process of carbonizing, first come out is smoke with bad smell. The clean system internal has floating cold water, when the hot smoke meets the cold pipe, the smoke will become water vapor, thus it will not pollute the air.

Other models of the our charcoal retort kiln

New design charcoal retort kiln with liquefied gas burner

Two sets connected charcoal retort kiln

Three sets connected charcoal retort kiln

Final charcoal from our charcoal retort kiln

Wood log charcoal, wood briquette charcoal

Coconut shell charcoal

Smokeless high carbonization rate bbq charcoal retort kiln for sale
