Quick Details
-
Brand Name:
-
Brando
-
Orifice size:
-
DN10
-
Function:
-
2/2 Way Normally Closed
-
Seals material:
-
NBR, FKM, PTFE
-
Body material:
-
Brass
-
Fluid temperature:
-
-5°C To +150 °C
-
Pressure Range:
-
0.1 to 10bar
-
Voltages:
-
24VDC, 110VAC, 120VAC, 220VAC, 230VAC
Quick Details
-
Port Size:
-
1/4''
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
6213-13-20
-
Brand Name:
-
Brando
-
Orifice size:
-
DN10
-
Function:
-
2/2 Way Normally Closed
-
Seals material:
-
NBR, FKM, PTFE
-
Body material:
-
Brass
-
Fluid temperature:
-
-5°C To +150 °C
-
Pressure Range:
-
0.1 to 10bar
-
Voltages:
-
24VDC, 110VAC, 120VAC, 220VAC, 230VAC
Products Description

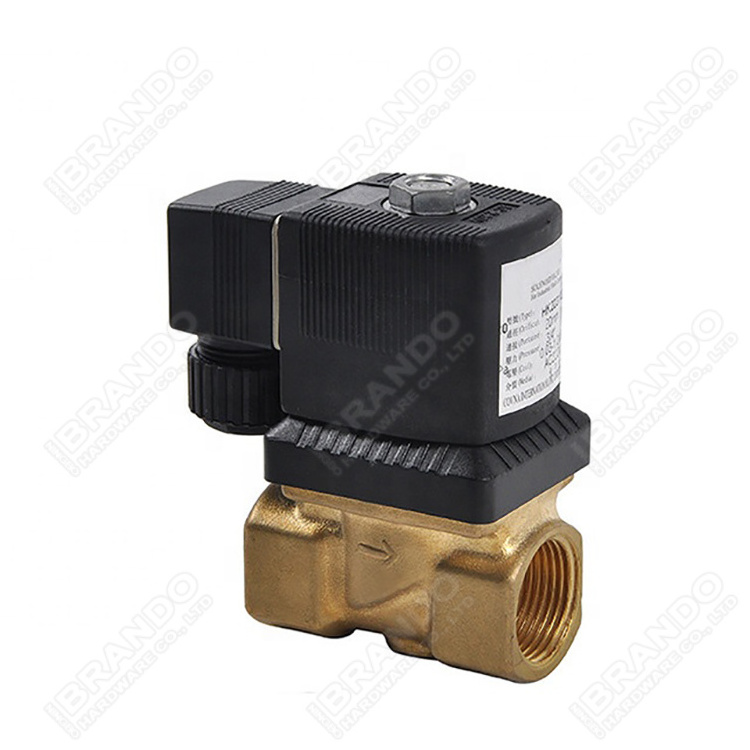

The Burkert type 6213 is a semi-direct operated solenoid valve. The valve opens and closes by moving a flexible diaphragm. The diaphragm is used as a seal, to separate the valve inlet and outlet. The valve has a pilot and bleed orifice that are used to regulate the pressure difference on both sides of the diaphragm. By controlling the pressure differential on both sides, the diaphragm is pushed upwards or downwards to assist the opening or closing of the valve.
Semi-direct operated solenoid valves combine the properties of direct and indirect valves. They can handle a high flow rate and work from zero bar. They feature a moveable membrane with a small orifice and pressure chambers on both sides of the membrane. In a semi-direct valve, the plunger is directly connected to the membrane. Therefore, when the plunger is lifted it directly lifts the membrane to open the valve. At the same time, a second orifice is opened by the plunger that has a slightly larger diameter than the first orifice in the membrane. This causes the pressure in the chamber above the membrane to drop. As a result, the membrane is lifted not only by the plunger, but also by the pressure difference. Often, semi-direct operated valves have more powerful coils than indirect operated valves. Semi-direct operated valves are sometimes called assisted-lift solenoid valves.
|
Model No.
|
DN
|
Port Size
|
|
6213-10-8
|
10
|
1/4
|
|
6213-10-10
|
10
|
3/8
|
|
6213-10-15
|
10
|
1/2
|
|
6213-13-15
|
13
|
1/2
|
|
6213-13-20
|
13
|
3/4
|
|
6213-20-20
|
20
|
3/4
|
|
6213-20-25
|
20
|
1
|
|
6213-25-25
|
25
|
1
|
|
6213-25-35
|
25
|
1-1/4
|
|
6213-40-35
|
40
|
1-1/4
|
|
6213-40-40
|
40
|
1-1/2
|
|
6213-40-50
|
40
|
2
|
Main Dimension
|
Model No.
|
A
|
B
|
C
|
D
|
E
|
SW
|
|
|
|
|
|
|
(MS/VA)
|
|
|
6213-10-08
|
71.1
|
82.1
|
36
|
46
|
22
|
22
|
|
6213-10-10
|
73.1
|
86.6
|
|
|
|
27
|
|
6213-10-15
|
82.6
|
95.9
|
44.5
|
56.7
|
27.25
|
|
|
6213-13-15
|
83.6
|
95.9
|
|
|
32.5
|
27
|
|
6213-13-20
|
84.6
|
100.6
|
|
|
32.5
|
32
|
|
6213-20-20
|
97.1
|
113.1
|
65
|
76.6
|
37
|
32
|
|
6213-20-25
|
99.6
|
120.1
|
|
|
37.5
|
41
|
|
6213-25-25
|
143.4
|
163.4
|
77
|
88
|
46
|
41
|
|
6213-25-35
|
148.3
|
173.3
|
|
|
46
|
50
|
|
6213-40-35
|
153.9
|
178.9
|
104.5
|
117
|
61
|
50
|
|
6213-40-40
|
159.4
|
189.4
|
|
|
61
|
60
|
|
6213-40-50
|
165.4
|
200.4
|
|
|
64
|
70
|
