Main Bearing Bore Diameter Range: 46 – 178 mm (1.800 – 7.000 in) Special tooling required for 127 – 178 mm (5.000 to 7.000 in) Capacity: V blocks, both 90 and 60; overhead and L-head in-line blocks; up to 1140 mm (45 in) long, 710 mm (28 in) from head deck to main bearing centerline.
Minimum stock removal, usually less than .003" (.076 mm) off the caps compared to as much as .010" (.254 mm) with boring Maximum precision, corrects distortion caused by warpage and cap stretch
Meets or exceeds original factory accuracy for alignment, roundness and size Fast, easy setup
Ease of operation, no special training required
Profitable: Make $90-$120 in 30 minutes on a typical V-8 block
Lifetime application service with every machine purchase
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
New Product
-
Range of Spindle Speed(r.p.m):
-
150 r.p.m
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
China
-
Brand Name:
-
APS
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
3200*1480*1920(mm)
-
Weight (T):
-
0.8 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO9001 CE
-
Dia. of hole honed:
-
25-170mm
-
Diameter of honing hole:
-
46-178MM
Quick Details
-
Table Size (mm):
-
1140*710*710
-
Table Travel (X) (mm):
-
0 mm
-
Table Travel (Y) (mm):
-
0 mm
-
Table Travel (Z) (mm):
-
0 mm
-
Travel (W-axis) (mm):
-
0 mm
-
Marketing Type:
-
New Product
-
Range of Spindle Speed(r.p.m):
-
150 r.p.m
-
Spindle Motor Power(kW):
-
1.5
-
Place of Origin:
-
China
-
Brand Name:
-
APS
-
Voltage:
-
110V/220V/380V
-
Dimension(L*W*H):
-
3200*1480*1920(mm)
-
Weight (T):
-
0.8 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Certification:
-
ISO9001 CE
-
Dia. of hole honed:
-
25-170mm
-
Diameter of honing hole:
-
46-178MM

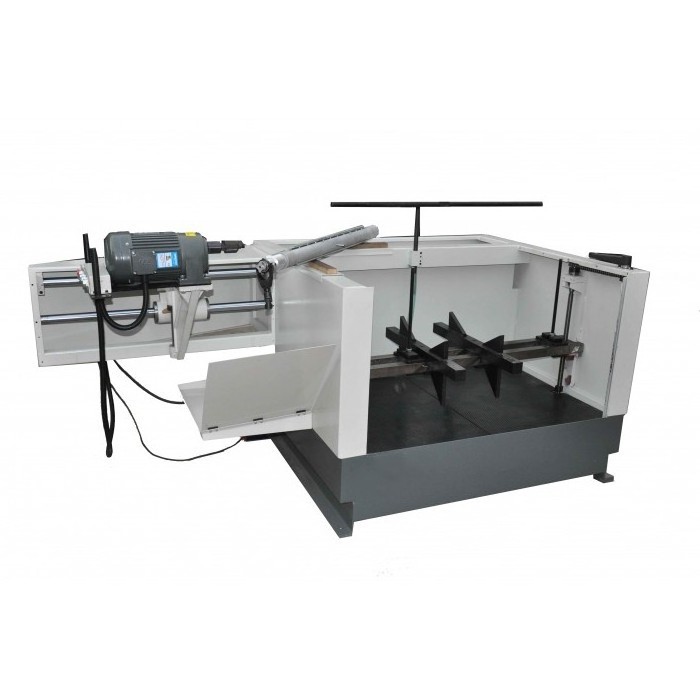

Line Honing Machine
|
Model
|
LBH100
|
|
Diameter of honing hole
|
46-178mm
|
|
Rotational speed of spindle
|
150r/min
|
|
Electric motor power of spindle
|
1.5KW
|
|
Cooling pump power
|
0.12KW
|
|
Inner working area size(L*W*H)mm
|
1140*710*710（mm）
|
|
Overall dimensions(L*W*H) mm
|
3200*1480*1920（mm）
|
|
Max travel of spindle
|
660mm
|
|
Minimum amount of Coolant
|
130L
|
|
Maximum amount of Coolant
|
210L
|
|
Weight of main machine(approx)
|
N.W 670kg G.W800kg
|
