Quick Details
-
Brand Name:
-
EMANWAY
-
Place of Origin:
-
Hubei, China
-
Pressure:
-
\
-
Structure:
-
\
-
Weight:
-
15
-
Power:
-
24
-
Dimension(L*W*H):
-
120*1500*200
-
Condition:
-
New
-
Type:
-
Hydraulic Pumps
-
Product name:
-
Piston Pump
-
MOQ:
-
1PC
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Cast Iron
-
OEM:
-
Avaliable
-
Quality:
-
100% Professional Test
Quick Details
-
Warranty:
-
1 Year
-
Displacement:
-
210cm³
-
Pump Type:
-
PISTON PUMP
-
Brand Name:
-
EMANWAY
-
Place of Origin:
-
Hubei, China
-
Pressure:
-
\
-
Structure:
-
\
-
Weight:
-
15
-
Power:
-
24
-
Dimension(L*W*H):
-
120*1500*200
-
Condition:
-
New
-
Type:
-
Hydraulic Pumps
-
Product name:
-
Piston Pump
-
MOQ:
-
1PC
-
Standard or Nonstandard:
-
Standard
-
Material:
-
Cast Iron
-
OEM:
-
Avaliable
-
Quality:
-
100% Professional Test

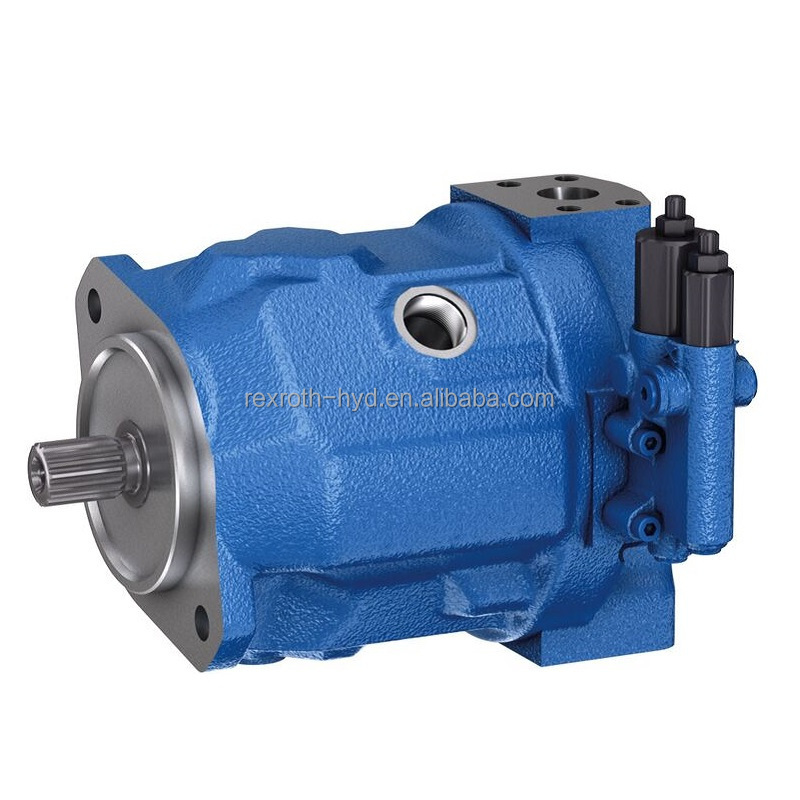

Axial piston variable pump
A10VO series 31
Feature:
- Through drive for mounting of further pumps up to same nominal size
- Low operating noise
- Long service life
- Controls with short response times
- Excellent suction characteristics
- 2 drain ports
- Swashplate design
Table of values
|
Size |
18 | 28 | 45 | 71 | 88 | 100 | 140 | 45 | 71 | 100 | 140 | |||
|
Version |
Standard | High speed | ||||||||||||
|
Displacement
|
V g max |
in³ |
1.1 | 1.71 | 2.75 | 4.33 | 5.37 | 6.1 | 8.54 | 2.75 | 4.33 | 6.1 | 8.54 | |
|
Nominal pressure |
p nom |
psi |
4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | |
|
Maximum pressure |
p max |
psi |
5100 | 5100 | 5100 | 5100 | 5100 | 5100 | 5100 | 5100 | 5100 | 5100 | 5100 | |
|
Maximum speed 1) |
at V g max |
n nom |
rpm |
3300 | 3000 | 2600 | 2200 | 2100 | 2000 | 1800 | 3000 | 2550 | 2300 | 2050 |
|
Flow |
at V g max and n nom |
q V nom |
gpm |
15.6 | 22.2 | 30.9 | 41.2 | 48.9 | 52.8 | 66.6 | 35.7 | 47 | 60.8 | 75.8 |
|
at V g max and n = 1500 rpm |
q V 1500 |
gpm |
7.1 | 11.1 | 18 | 28.3 | 34.9 | 39.6 | 55.5 | 18 | 28.3 | 39.6 | 55.5 | |
|
Power |
at q V nom and p nom |
P |
HP |
40 | 52 | 74 | 98 | 115 | 125 | 158 | 84 | 111 | 143 | 180 |
|
at q V 1500 and p nom |
P 1500 |
HP |
17 | 27 | 43 | 67 | 83 | 94 | 131 | 43 | 67 | 94 | 131 | |
|
Torque |
at V g max and p nom |
M |
lb-ft |
59 | 92 | 148 | 233 | 289 | 328 | 460 | 148 | 233 | 328 | 460 |
|
Weight (approx.) |
m |
lbs |
28 | 40 | 52 | 78 | 78 | 109 | 144 | 52 | 78 | 109 | 144 | |
|
|
|
