Quick Details
-
Brand Name:
-
YUFLY
-
Model Number:
-
HD13
-
Max. Current:
-
2500A
-
Color:
-
white/black
-
Metal material:
-
Copper
-
Rated current:
-
400A
-
Operation type:
-
leval
-
Certification:
-
conformity with the standard (IEC60947-3).
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUFLY
-
Model Number:
-
HD13
-
Max. Current:
-
2500A
-
Color:
-
white/black
-
Metal material:
-
Copper
-
Rated current:
-
400A
-
Operation type:
-
leval
-
Certification:
-
conformity with the standard (IEC60947-3).
Product Description

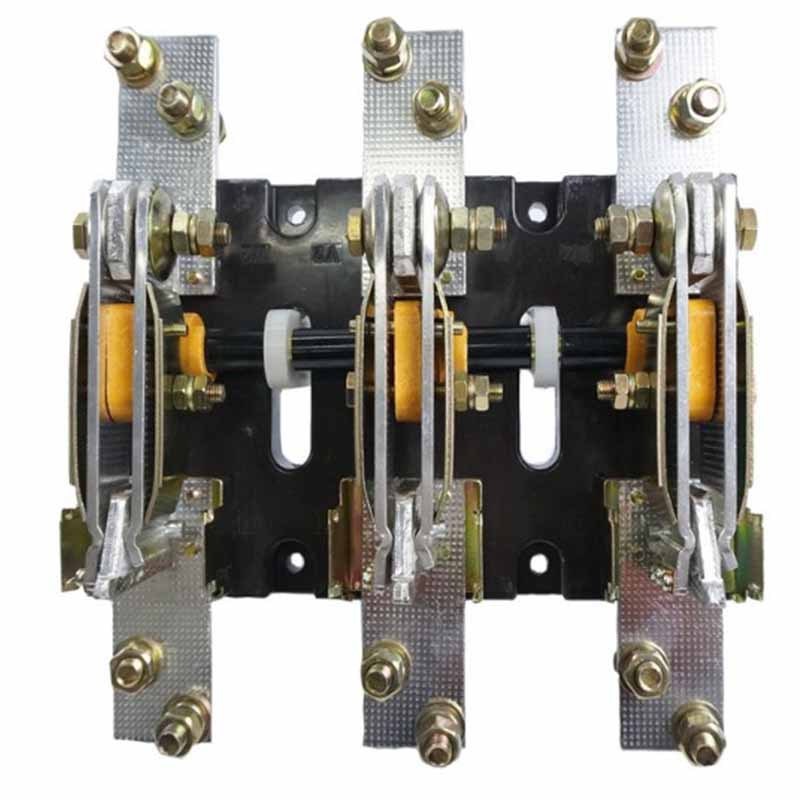

HD13 Knife Switch
HD,HS series open knife switch and knife transfer switch (hereinafter refered to switch)are suitable in the assembled distrbuting equipment of AC 50Hz,rated voltage up to 380V, or DC up to 220V and rated current up to 3000A, used to infrequently make and break the AC or DC circuit in hand or acted as isolating switches.
In which:
1. Central handgrip style switches are mainly used in power station and acted as isolating switches,They are not intended for break the circuit with current.
2. Side handgrip style switches are mainly used in power box.
3. Central front lever operating mechanism style switches are mainly used in the front side operated,rear maintained switchgear cubicle, the operating me chanism is fixed in the front of the cubicle.
4. Side front lever operating mechanism style switches are mainly used in the front side operated,front maintained switchgear cubicle, the operating mechanism can be fixed on both sides of the cubicle.
5. The knife switch equipped with arc chute can cut off the current load, knife switches of other series are acted as isolating switches only.
The products are in conformity with the standard GB14048.3(idtIEC60947-3).
In which:
1. Central handgrip style switches are mainly used in power station and acted as isolating switches,They are not intended for break the circuit with current.
2. Side handgrip style switches are mainly used in power box.
3. Central front lever operating mechanism style switches are mainly used in the front side operated,rear maintained switchgear cubicle, the operating me chanism is fixed in the front of the cubicle.
4. Side front lever operating mechanism style switches are mainly used in the front side operated,front maintained switchgear cubicle, the operating mechanism can be fixed on both sides of the cubicle.
5. The knife switch equipped with arc chute can cut off the current load, knife switches of other series are acted as isolating switches only.
The products are in conformity with the standard GB14048.3(idtIEC60947-3).
Product Paramenters
Specification
|
Certification
|
conformity with the standard (IEC60947-3).
|
|
Place of Origin
|
China，Zhejiang
|
|
Brand Name
|
YUFLY
|
|
Model Number
|
HD11,HS11,HD12,HS12,HD13
|
|
Max. Current
|
2500A
|
|
Max. Voltage
|
380V
|
|
Color
|
white
|
|
Metal material
|
Copper
|
|
Rated current
|
400A
|
|
Operation type
|
leval
|
