Quick Details
-
Model Number:
-
Multiblade segment
-
Product name:
-
Diamond Segment
-
Application:
-
Cutting Granite
-
Material:
-
Diamond + Metal Powder
-
Usage:
-
Wet Cutting
-
Advantage:
-
Wear Resistant Superior
-
Grade:
-
A-Grade
-
Shape:
-
shark ,M
-
Certification:
-
TUV
-
Use:
-
Diamond Circular Saw Blade
-
Technology:
-
Hot Pressing Sintering
Quick Details
-
Warranty:
-
None
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
LINSING
-
Model Number:
-
Multiblade segment
-
Product name:
-
Diamond Segment
-
Application:
-
Cutting Granite
-
Material:
-
Diamond + Metal Powder
-
Usage:
-
Wet Cutting
-
Advantage:
-
Wear Resistant Superior
-
Grade:
-
A-Grade
-
Shape:
-
shark ,M
-
Certification:
-
TUV
-
Use:
-
Diamond Circular Saw Blade
-
Technology:
-
Hot Pressing Sintering

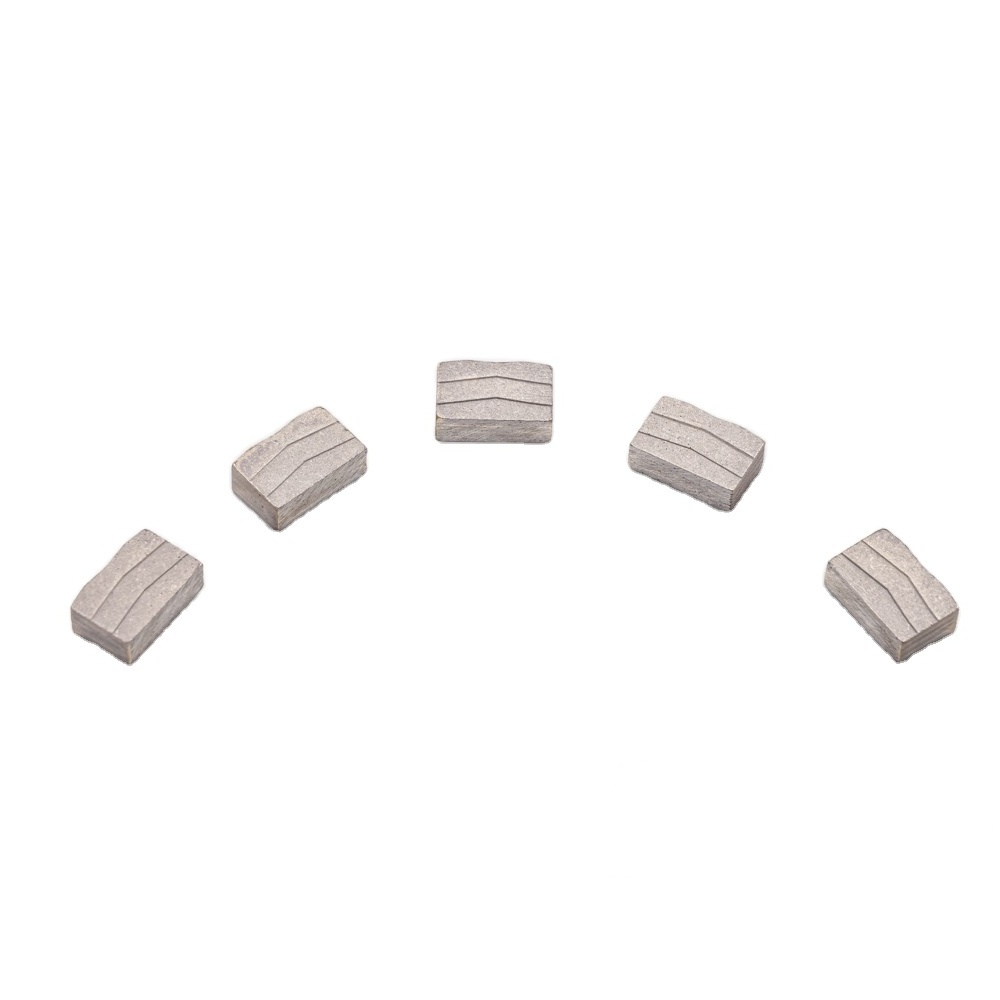

Diamond Segment For Multi-Saw Blade
Product Features:
1. The segment has good sharpness against different stone cutting;
2. Long lifespan with high cost-effective;
3. Strict QC for stable cutting performance;
4. Segment shape is easy for opening.
Product Specification:
Multiblade segment for granite cutting
|
Diameter(mm) |
Steel Core Thickness(mm) |
Segment Specification(mm) |
|
Φ1000 (600-2000) |
5.0 |
24x7.0/6.2x15 (13,20) |
|
Φ1200 (530-2800) |
5.5 |
24x7.4/6.6x15 (13,20) |
|
Φ1400 (460-2800) |
6.5 |
24x8.4/7.6x15 (13,20) |
|
Φ1600 (460-3000) |
7.2 |
24x9.2/8.4x15 (13,20) |
Other specifications are available upon request.
Multiblade segment for marble cutting
|
Diameter(mm) |
Steel Core Thickness(mm) |
Segment Specification(mm) |
|
Φ1200 |
4.5 |
24x5.5x8 (10) |
|
Φ1200 |
5.0 |
24x6.0x8 (10) |
|
Φ1200 |
6.5 |
24x7.5x8 (10) |
|
Φ1200 |
7.0 |
24x8.0x8 (10) |
Other specifications are available upon request.
