- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YXFB
-
Model Number:
-
CH0801-YK
-
Product name:
-
Switch Components With Key
-
Ex mark:
-
Ex de IIC T6 Gb
-
Meet the standard:
-
IEC60079 EN60079
-
Working temperature:
-
-55 ~ +60
-
Rated voltage:
-
DC220, AC415/240,
-
Mechanical life:
-
1 million times
-
Corrosion protection grade:
-
WF2
-
Intended use:
-
zone 1&2 or zone 21,22
-
Contact type:
-
1NC/1NO, 2NC,2NO, and others
Quick Details
-
Protection Level:
-
IP66
-
Max. Current:
-
16A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YXFB
-
Model Number:
-
CH0801-YK
-
Product name:
-
Switch Components With Key
-
Ex mark:
-
Ex de IIC T6 Gb
-
Meet the standard:
-
IEC60079 EN60079
-
Working temperature:
-
-55 ~ +60
-
Rated voltage:
-
DC220, AC415/240,
-
Mechanical life:
-
1 million times
-
Corrosion protection grade:
-
WF2
-
Intended use:
-
zone 1&2 or zone 21,22
-
Contact type:
-
1NC/1NO, 2NC,2NO, and others

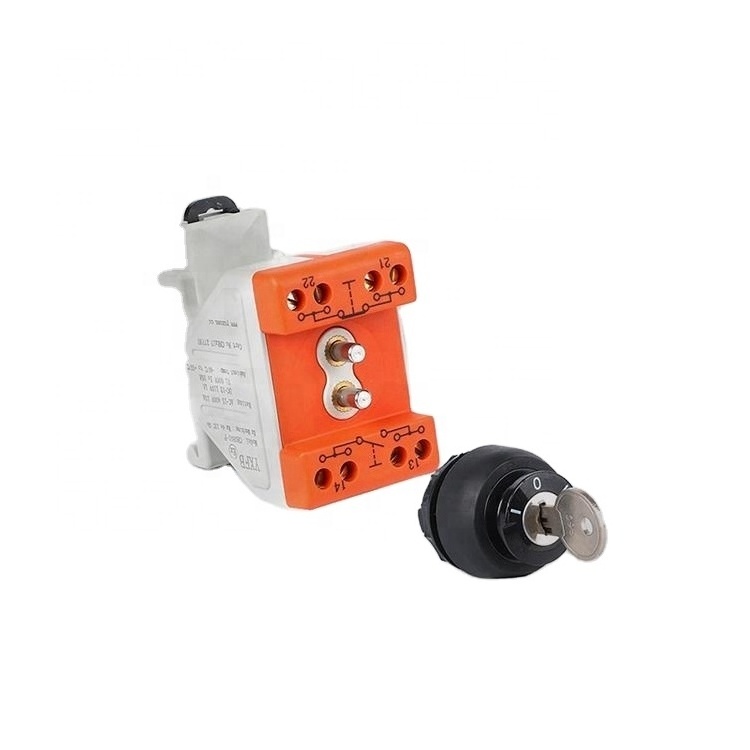

Explosion-proof 3 phase changeover switch with key
Product Description
Main technical data
Ex mark:Ex de IIC T6 Gb
Intended use: hazardous areas zone0, 1, 2 or 20, 21, 22
Ambient temperature use: -55≤Ta≤60
Degree of protection: IP66
Contact type:1NC/1NO, 2NC,2NO
Rated voltage:AC415/240V DC220V
Regimentation use: AC12 AC15 DC13 DC13
Rated current: 16A 10A 0.5A 1A
Mechanical life: 100, 0000 times
Board front mounting rail type mounting: May be held on mounting rails TS35*7.5 or with screws
Board back type mounting:On 1-6mm panel
Meet the standard: IEC60079 EN60079
Product Description
Main technical data
Ex mark:Ex de IIC T6 Gb
Intended use: hazardous areas zone0, 1, 2 or 20, 21, 22
Ambient temperature use: -55≤Ta≤60
Degree of protection: IP66
Contact type:1NC/1NO, 2NC,2NO
Rated voltage:AC415/240V DC220V
Regimentation use: AC12 AC15 DC13 DC13
Rated current: 16A 10A 0.5A 1A
Mechanical life: 100, 0000 times
Board front mounting rail type mounting: May be held on mounting rails TS35*7.5 or with screws
Board back type mounting:On 1-6mm panel
Meet the standard: IEC60079 EN60079
Product Description
Specification
|
item
|
value
|
|
Whether the smart
|
NO
|
|
Place of Origin
|
China
|
|
|
Zhejiang
|
|
Brand Name
|
YXFB
|
|
Model Number
|
CH0801-YK
|
|
Protection Level
|
IP66
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V
|
|
LED
|
NO
|
|
Product name
|
Switch Components With Key
|
|
Ex mark
|
Ex de IIC T6 Gb
|
|
Meet the standard
|
IEC60079 EN60079
|
|
Working temperature
|
-55 ~ +60
|
|
Rated voltage
|
DC220, AC415/240,
|
|
Mechanical life
|
1 million times
|
|
Corrosion protection grade
|
WF2
|
|
Intended use
|
zone 1&2 or zone 21,22
|
|
Contact type
|
1NC/1NO, 2NC,2NO, and others
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
