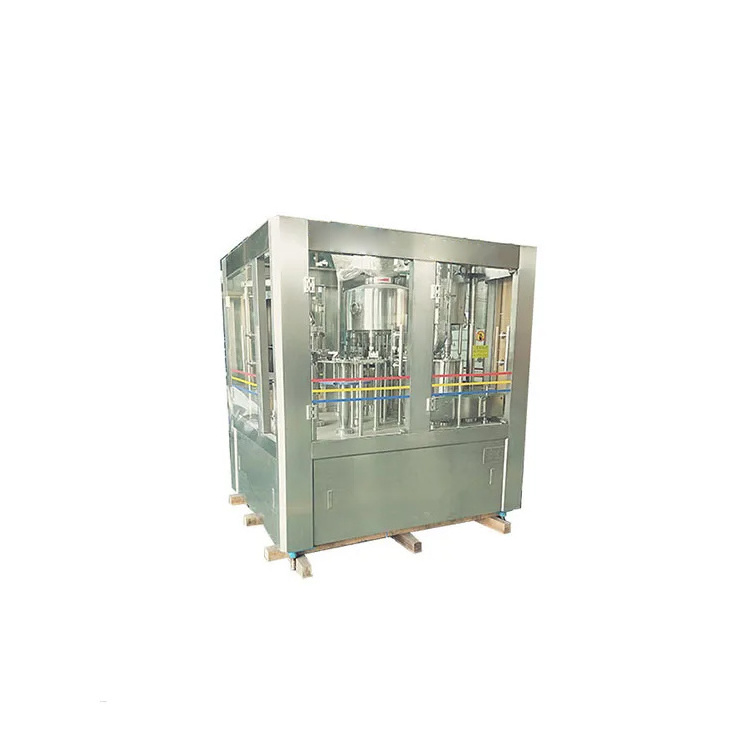

This carbonated beverage filling equipment adopts bottle neck holding transmission technology to realize fully automatic washing, filling and capping. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc. in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation, etc.
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±2ml
-
Voltage:
-
380v,50hz
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
ZPACK
-
Dimension(L*W*H):
-
2000*1600*2400(mm)
-
Weight:
-
2500 KG
-
Washing Heads:
-
8
-
Filling Heads:
-
8
-
Capping Heads:
-
4
-
Production capacity:
-
800-1000BPH
-
Bottle height:
-
150-340mm
-
Bottle diameter:
-
50-110mm
-
Bottle Acceptable:
-
0.2L-1.5L
-
Filling Temperature:
-
Cold filling at 2 to 8℃
-
Filling Manner:
-
Counter-pressure filling
Quick Details
-
Machinery Capacity:
-
1000BPH, 800-1000BPH
-
Packaging Material:
-
Plastic, Metal, Glass, Other
-
Filling Material:
-
Beer, Other, Water, Oil, Juice, carbonated drink
-
Filling Accuracy:
-
±2ml
-
Voltage:
-
380v,50hz
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
ZPACK
-
Dimension(L*W*H):
-
2000*1600*2400(mm)
-
Weight:
-
2500 KG
-
Washing Heads:
-
8
-
Filling Heads:
-
8
-
Capping Heads:
-
4
-
Production capacity:
-
800-1000BPH
-
Bottle height:
-
150-340mm
-
Bottle diameter:
-
50-110mm
-
Bottle Acceptable:
-
0.2L-1.5L
-
Filling Temperature:
-
Cold filling at 2 to 8℃
-
Filling Manner:
-
Counter-pressure filling
Equipment Details
General description：
Washing Part
①AIl 304/316 stainless steel rinse heads water spray style inject design, more save water consumption and more clean
Filling Part
① 304/316 Stainless steel high precision filling nozzle
②
All 304/316 stainless steel contact parts& liquid tank, fine polish, no
death corner easy to clean
Capping Part
① No bottle no capping
② Automatic stop when lack of bottle
|
Another Model
|
|
|
||
|
Model
|
Capacity
|
Power
|
||
|
DCGF8-8-4
|
1000BPH
|
2.5KW
|
||
|
DCGF12-12-4
|
1500-2000BPH
|
3.1KW
|
||
|
DCGF12-12-6
|
2000-2500BPH
|
3.1KW
|
||
|
DCGF16-12-6
|
2000-3000BPH
|
3.1KW
|
||
|
DCGF16-16-6
|
3000-4000BPH
|
3.5KW
|
||
|
DCGF18-18-6
|
4000-5000BPH
|
3.8KW
|
||
|
DCGF24-24-8
|
7000-8000BPH
|
3.8KW
|
||
|
DCGF32-32-10
|
9000-11000BPH
|
5.6KW
|
||
|
DCGF40-40-12
|
12000-14000BPH
|
7.2KW
|
||
|
Complete Line Solution(3 In 1 Carbonated Drink Filling Machine)
|
|
|
|
|
||||
1.High Power Carbonated Drinks Mixing Machine
Drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology—static mixer to lighten water layer, increase carbonizing time, assure mixing result and de-oxygen. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.
2.WATER TREATMENT PLANT
According to customer's water source analysis report and the final water standard required ,we will suggest customer to choose the suitable water treatment system plants.
3.PET BOTTLE BLOWING MACHINE
Bottle blowing making machine is to make plastic bottles for mineral water, carbonated drink, juice and so on. It is widely used in the food and beverage package industry.
4.BOTTLE WARMER
The bottle warming machine is a tunnel-type spray equipment that heats the bottle body through heat exchange by circulating spraying hot water. It has three permanent temperature zones (more temperature zones can also be designed). After segmented heating, the temperature in the center of the beverage reaches room temperature. The inlet and outlet of the bottle warming machine adopt dynamic transition to reduce bottle extrusion and manual intervention.
5.LABELING MACHINE
We have various kinds of options, like PVC sleeve label, OPP hot glue label, adhesive stick label, cold glue paper label and so on.
6.LASER DATE PRINTER
The CO2 laser printer marking machines are powerful and versatile, they deliver flexible, high speed, high quality coding across a wide variety of materials with the ability to produce multiple lines of text. Our laser marking machines are designed to fit in limited spaces and integrate into a variety of production lines.
7.BOTTLE PACKING MACHINE
1. Suitable for opening and sealing cardboard boxes of various sizes. If you need to change the size of the cardboard box, you can manually adjust it, and the operation is simple and convenient.
2. The fully automatic grabbing boxing machine is reliable in operation, and the grabbing head is used to charge and exhaust to achieve the grabbing and releasing action of the bottles. Then, through mechanical action, the bottles are accurately placed into the cardboard box from the entire platform.
3. Manually adjust the width and height according to the specifications of the cardboard box; Automatic folding box top cover, automatic tape application up and down, economical, stable, and fast; Equipped with blade protection device.
