For large diameter wood log or waste wood pallets or waste building templates, usually need heavy duty drum wood chiper for making small size wood chips.
Usually the finished size wood chips is 3-5cm;
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
4720*3100*1950
-
Weight:
-
17000 KG
-
Marketing Type:
-
Heavy Duty Wood Chipper
-
Name:
-
YMPJ1650 Wood Chipper
-
Main Power:
-
400kw
-
Feeding Hopper Size:
-
1900*900MM
-
Fixed Blade:
-
One Piece
-
Rotary Blade:
-
4/8/12 pieces
-
Max Did of Raw Material:
-
650mm
-
Capacity of Wood Chipper:
-
20-30 ton per hour
-
Raw Material:
-
Wood Branches, Wood Log , Bamboo, Building Waste Templates
-
Application:
-
Crush Wood Chips as Fuel ,Use in Power Plant, Paper Mill..
-
Wood Chipper Color:
-
Green ,White Or Blue
Quick Details
-
Use:
-
Making 3-8cm Chips
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ROTEXMASTER BRAND
-
Dimension(L*W*H):
-
4720*3100*1950
-
Weight:
-
17000 KG
-
Marketing Type:
-
Heavy Duty Wood Chipper
-
Name:
-
YMPJ1650 Wood Chipper
-
Main Power:
-
400kw
-
Feeding Hopper Size:
-
1900*900MM
-
Fixed Blade:
-
One Piece
-
Rotary Blade:
-
4/8/12 pieces
-
Max Did of Raw Material:
-
650mm
-
Capacity of Wood Chipper:
-
20-30 ton per hour
-
Raw Material:
-
Wood Branches, Wood Log , Bamboo, Building Waste Templates
-
Application:
-
Crush Wood Chips as Fuel ,Use in Power Plant, Paper Mill..
-
Wood Chipper Color:
-
Green ,White Or Blue
Products Description
Heavy Duty Drum Wood Chipper/Wood Chips Making Machine/
industrial wood chipper shredder machinery
Heavy duty drum wood chipper /
Wood chipper /Wood Chips making machine is a machine which is used to a machine used for reducing wood (generally tree limbs or trunks) into smaller woodchips.
Details Images
Components of Wood Chipper
Feeding System:4m feeding blet conveyor or 4m feeding chain conveyor( design according to different material)
Feeding Roller---45# Steel, bite the wood and sending to chipping room
Blade Roller:Add rotary blades on it.
Discharging System:Use to send finished wood chips to other section
Electric Control System:Control the wood chipper
Feeding System-4m/5m Chain Conveyor
For large capacity drum wood chipper , it usually use chain conveyor instead of belt conveyor.
Chain conveyor with long lifetime than belt conveyor.
On the other hand, use a
Mechanical gripper to catch wood log or waste wood pallets ,waste buliding templates or large diameter wood log onto chain conveyor.
By this way, it could make sure the capacity of drum wood chipper;
If your raw material are hard wood, wood pallets, waste building templates or other wood, for drum wood chipper, the chipping room will equip with hammers instead of traditional knifes.
The high rotation spped hammers will beat thmaterial into small size wood chips;
Hammers belong to spare parts, usually the lifetime is about half years.After that, drum wood chipper need to replace new hammers
Chipping Room with Rotary Knives
When material is wood log or small size wood ,usually use rotary knives to cut them into small size.
The high speed rotary knives will cut these wood into small size wood chips.
Usually the distance between rotary knives and fixed knives is just about 0.5-1mm.
So it is very important to fix these knives.When working one days, it also need to fix these knives one by one.
Raw Material for drum wood chipper
The raw materials of woodchips can be pulpwood, waste wood, and residual wood from agriculture, landscaping, logging, and sawmills. Woodchips can also be produced from remaining forestry materials including tree crowns, branches, unsaleable materials or undersized trees.
Usually the finished products of drum wood chipper, wood chips is 3-5cm
Spare Parts of Wood Chipper
Fixed Blades for Wood Chipper
65# manganese steel
Blade thickness 20mm, thin 1mm per grinding.
Lifetime:4-6 months
Rotary Blades
Material:45# manganese steel
Lifetime:around 400-600h
Screener
Lifetime:4-6 months
Size of Hole:3-5cm
Material:Carbon Steel
Product Paramenters
|
Model
|
Power(kw)
|
Capacity(t/h)
|
Feeding Hopper Size(L*W)
|
For Raw Mateiral
|
|
YMPJ 216
|
55
|
3-5
|
545*230
|
The diameter of wood log should less than 20cm;
|
|
YMPJ218
|
110
|
8-10
|
710*360
|
The diameter of wood log should less than 30cm
|
|
YMPJ 1300-600
|
160
|
12-15
|
1120*500
|
The diameter of wood log should less than 35cm
|
|
YMPJ2113
|
315
|
20-30
|
1100*530
|
The diameter of wood log should less than 35cm
|
|

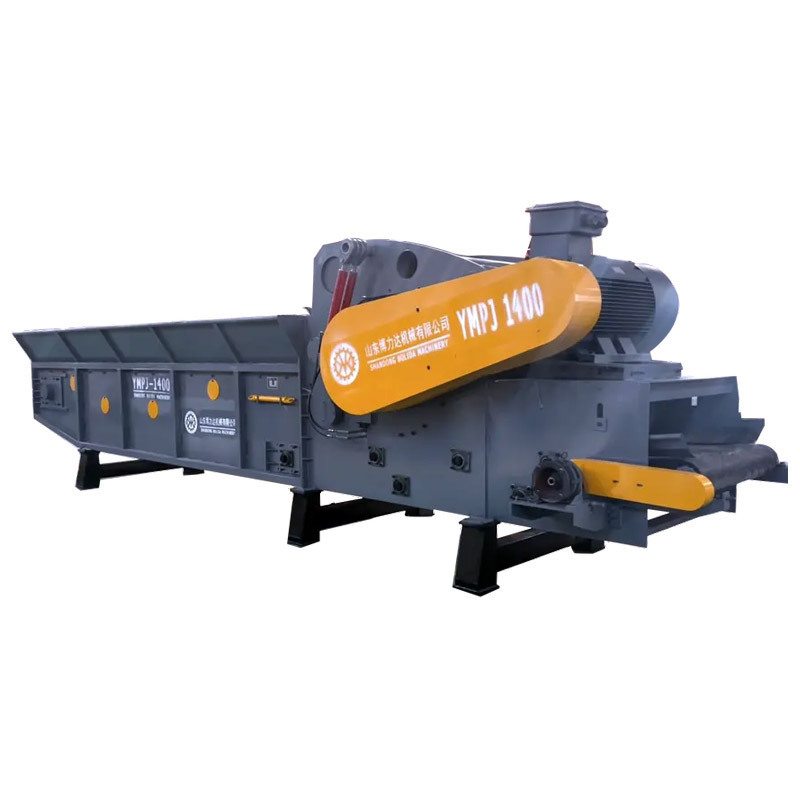

YMPJ 1400
|
220
|
15-25
|
1400*700
|
Mainly for wood pallets, waste wood building templates
|
Project case
Some Case of Drum Wood Chipper
Rotexmaster has manufactured hundreds of drum wood chipper with capacity arranging from 1 ton per hour to 30 ton per hour.
Drum wood chipper could make with electric motor or diesel motor.
Diesel Type Drum Wood Chipper
Diesel type drum wood chipper, it comes with two wheels, so it could moveable to anywhere
Big capacity diesel wood chipper and small capacity drum wood chipper for small diameter wood branches
Large Capacity Diesel Wood Chipper
Large capacity diesel wood chipper .Usually it comes with 120hp/220hp diesel engine or more bigger ;The capacity could reach 3-20 ton per hour.
It comes with two big wheels and two small big wheels .
Mainly for industrial wood pellet plant.
Small Capacity Wood Chipper Shredder
Small capacity mobile wood chipper, usually with 22hp por 40 hp diesel engine, the capacity is about 500-1000kg/h.
Mainly for home use and to chips the small diameter wood log and wood branches in the garden.
