Quick Details
-
Dimension(L*W*H):
-
20000*1500*2600
-
Model:
-
LDD-SJP-150-140
-
Applicable material:
-
PP PE ABS PS PC
-
Screw diameter:
-
150mm/140mm
-
Capacity:
-
400-500kg/h
-
Motor power:
-
90KW/22KW
-
Long dia.ratio:
-
28:1 10:1
-
Screw rotate speed:
-
10-75
-
Voltage:
-
Customized
-
Color:
-
Green and white
-
End product:
-
Plastic granules
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Lvdao
-
Weight (KG):
-
1000
-
Dimension(L*W*H):
-
20000*1500*2600
-
Model:
-
LDD-SJP-150-140
-
Applicable material:
-
PP PE ABS PS PC
-
Screw diameter:
-
150mm/140mm
-
Capacity:
-
400-500kg/h
-
Motor power:
-
90KW/22KW
-
Long dia.ratio:
-
28:1 10:1
-
Screw rotate speed:
-
10-75
-
Voltage:
-
Customized
-
Color:
-
Green and white
-
End product:
-
Plastic granules
Usage:

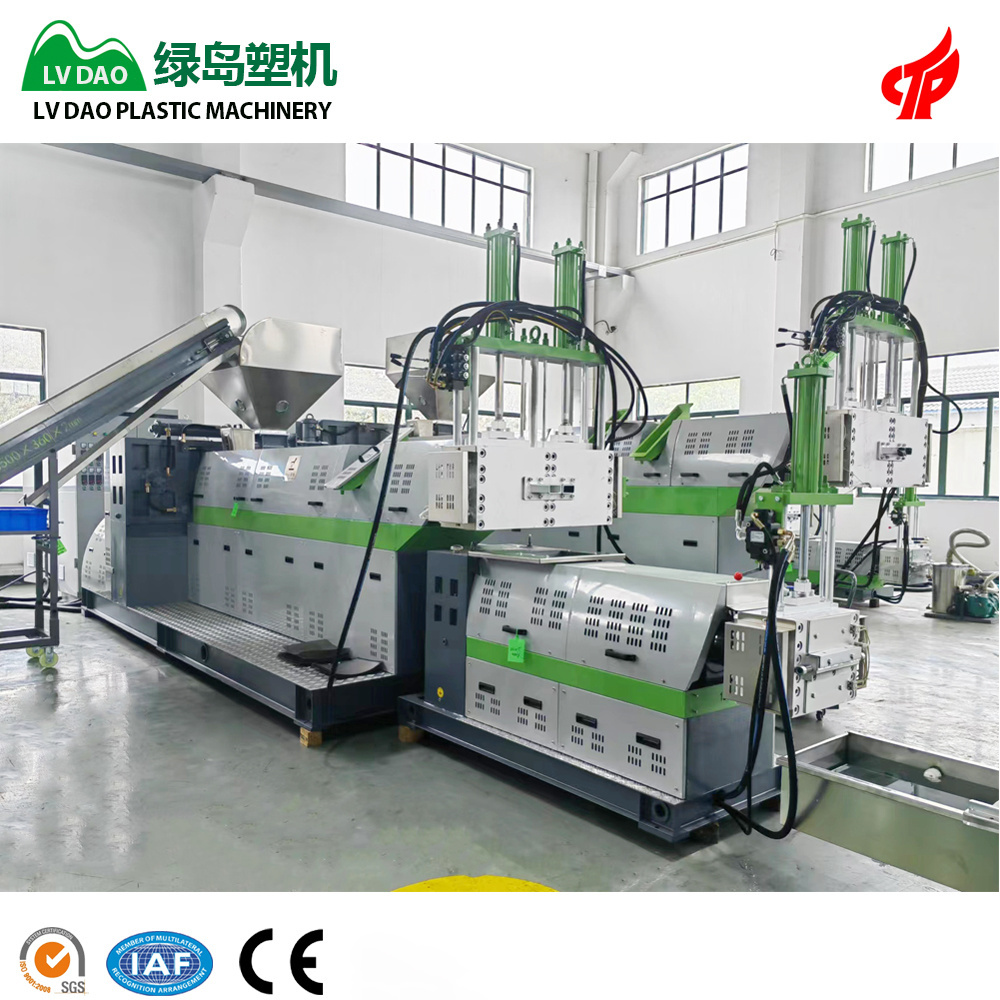

This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:
LDD series is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample,consolidated and fine luster granules.
Material:
PP PE ABS PA PS
Parameter trable :
|
Model |
Screw dia |
Long dia. ratio |
Output (kg/h) |
Screw rotate speed(r/min) |
Power (KW) |
|
LDD-SJP-80-70 |
Φ80 φ70 |
28:1 10:1 |
50-100 |
10-75 |
18.5/7.5 |
|
LDD-SJP-90-85 |
Φ90 φ85 |
28:1 10:1 |
100-150 |
10-75 |
22/7.5 |
|
LDD-SJP-100-95 |
φ100 φ95 |
28:1-10:1 |
150-200 |
10-75 |
30/11 |
|
LDD-SJP-110-105 |
φ110 φ105 |
28:1-10:1 |
200-250 |
10-75 |
37/11 |
|
LDD-SJP-120-110 |
φ120 φ110 |
28:1-10:1 |
250-300 |
10-75 |
45/15 |
|
LDD-SJP-130-120 |
φ130 φ120 |
28:1-10:1 |
300-350 |
10-75 |
55/15 |
|
LDD-SJP-140-130 |
φ140 φ130 |
28:1-10:1 |
350-400 |
10-75 |
75/18.5 |
|
LDD-SJP-150-140 |
φ150 φ140 |
28:1-10:1 |
400- 500 |
10-75 |
90/22 |
|
LDD-SJP-160-150 |
φ160 φ150 |
28:1-10:1 |
50 0- 6 00 |
10-75 |
110/30 |
|
LDD-SJP-180-160 |
Φ180 φ160 |
28:1-10:1 |
6 00- 7 00 |
10-75 |
132/37 |
