Quick Details
-
IP Rating:
-
IP54
-
Beam Angle(°):
-
360
-
CRI (Ra>):
-
70
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20-50
-
Type:
-
mobile solar trailer
-
Material:
-
Aluminum Alloy
-
Application:
-
outdoor
-
Light source:
-
LED
-
Certificate:
-
ISO CE ROHS SAA
-
Usage:
-
lighting and surveillance camera CCTV
-
Battery:
-
Gel battery or lithium battery
-
Feature:
-
Environmental Friendly
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Robust Power
-
Model Number:
-
RPLT-4800
-
IP Rating:
-
IP54
-
Beam Angle(°):
-
360
-
CRI (Ra>):
-
70
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20-50
-
Type:
-
mobile solar trailer
-
Material:
-
Aluminum Alloy
-
Application:
-
outdoor
-
Light source:
-
LED
-
Certificate:
-
ISO CE ROHS SAA
-
Usage:
-
lighting and surveillance camera CCTV
-
Battery:
-
Gel battery or lithium battery
-
Feature:
-
Environmental Friendly

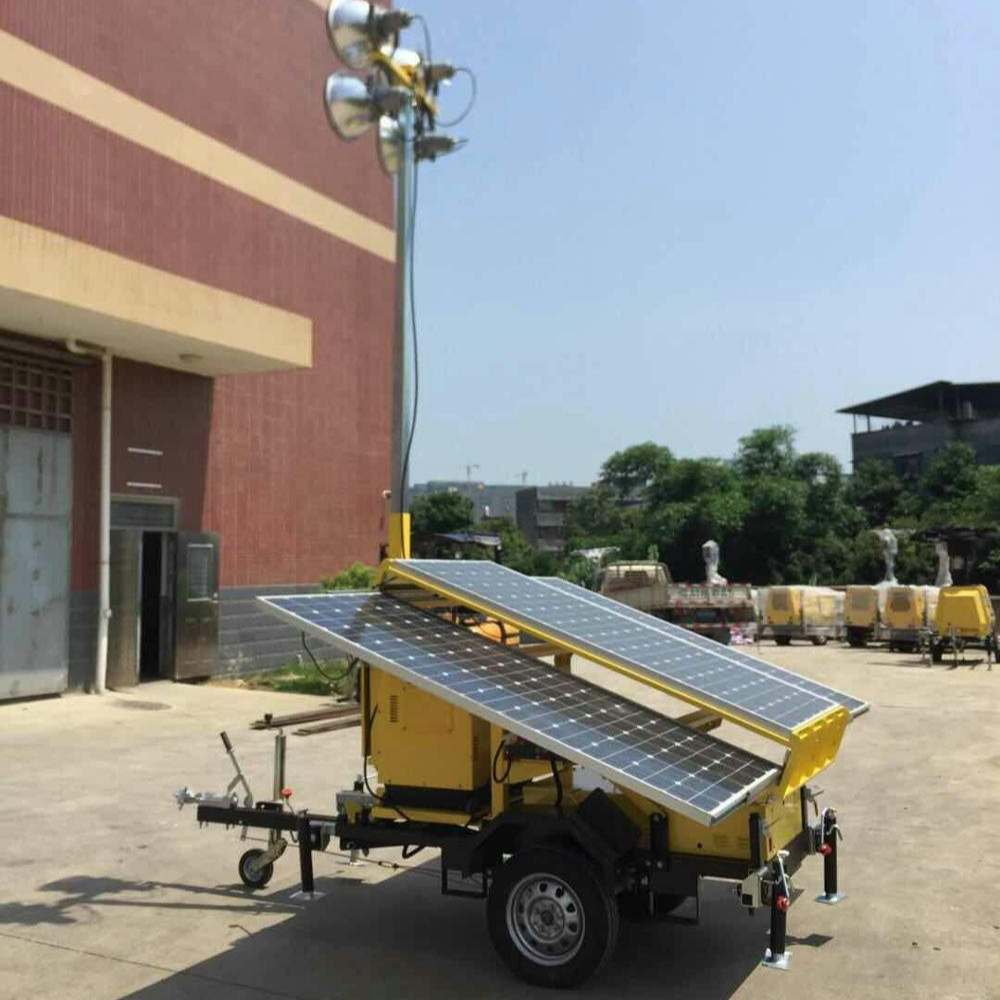

Solar lighting tower portable solar trailer optional backup diesel generator manual winch hydraulic or pneumatic mast pole 7m~12m DC or AC
- 8 meters max.height when fully extended,
-Lights operate at any height
-Photocell system for automatic Start/ Stop
-POWER SYSTEM
-48V DC/300AH Gel battery
-Charging way by The solar energy converter
-Three 300W Solar power panel
-48V Solar power voltage,current 15A
| Model RPLT-4800 | |
| Technical Specifications | |
| Mast | |
| Maximum extention of mast | 8 meter |
| Raising/lowing mast | Hydraulic |
| Stages | 6 sections |
| Lamp | |
| Power | 4*180W LED flood/project light,Cree chip,round or square |
| Voltage | DC48V |
| Luminous flux | 4*27000lm |
| Housing Material | Aluminium |
| Certificates | CE,SAA |
| Battery system | |
| Battery materials | Gel battery |
| Battery capacity | 4x12V*200AH |
| The battery voltage | 48V |
| Charging way | The solar energy /The power converter |
| The solar energy | |
| Solar panels | 3X350W |
| Solar power voltage | 48V |
| current / | 18A |
| Backup generator set(equip charger to convert AC to DC) | |
| Engine | Single Cylinder,4-stroke,air cooled |
| Model | RP186FA Diesel |
| Frequency(hz) | 50/ 60 |
| Rated Power(kw) | 4.5/ 5 |
| Max. Power(KW) | 5/ 5.5 |
| Revolution(rpm) | 3000/ 3600 |
| Engine Aspiration | Natural |
| Starting System | Electric |
| Alternator | 2-pole,brushless |
| Voltage | 85~265V |
| Fuel Capacity | 25L |
| Fuel Consumption at 100% load | 1.85L/H |
| Control System | Digital Control Panel |
| Power Outlets | 2 |
| Trailer | |
| Tow hitch | ball or ring hitch |
| Tire Size | 52 cm |
| Anti-wind capacity | 80KM/h |
| Packing Dimension | |
| storage | 3040*1350*2600mm(Around) |
| Working | 3040*3500*8000mm(Around) |
| Container Load (20GP) | 6 units |
Robust Power Models:
| No. | Model | Mast | Power of Lamps | Engine Model |
| 1 | RPLT1600 | 4.8M Manual | 4*400W Metal Halide Lamp | RP186FA |
| 2 | RPLT1600 | 4.8M Manual | 4*160W LED | RP186FA |
| 3 | RPLT1600 | 4.8M Manual | 2*1000W Metal Halide Lamp | RP186FA |
| 4 | RPLT6000 | 9M Manual | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 5 | RPLT6000 | 9M Manual | 4*240W LED | Kubota D905 (Japan) |
| 6 | RPLT6800 | 8.6M Hydraulic | 4*1000W Metal Halide Lamp | Kubota D1105 (Japan) |
| 7 | RPLT6800 | 8.6M Hydraulic | 4*1500W Metal Halide Lamp | Kubota D1105 (Japan) |
| 8 | RPLT6800 | 8.6M Hydraulic | 4*480W LED | Kubota D905 (Japan) |
| 9 | RPLT3800 | 7M Hydraulic | 4*480W LED | Kubota Z482 (Japan) |
| 10 | RPLT6900 | 8.5M Hydraulic | 4*480W LED | Kubota D1105 (Japan) |
| 11 | RPLT7200 | 10M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 12 | RPLT7200 | 10M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
| 13 | RPLT7600 | 9M Hydraulic | 6*480W LED | Kubota D1105 (Japan) |
| 14 | RPLT7600 | 9M Hydraulic | 4*720W LED | Kubota D1105 (Japan) |
