Available in full color NW/WW/CW/RGB rgbw module led panel dc12v IP67 waterproof

Available in full color NW/WW/CW/RGB rgbw module led panel dc12v IP67 waterproof

FOB Reference Price: Get Latest Price

≥2 Pieces

US $11.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Lamp Luminous Flux(lm):: 5700lm

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 5000

Place of Origin:: Guangdong, China

Brand Name:: Xinelam

Model Number:: RX-ALF5050-33

Color Temperature(CCT):: Cool White

Size:: 600x600mm

LED QTY:: 576LED

Color:: CW6000-6500K WW2700-3200K NW4200-4700K

Chip Material:: InGan

LED source:: SMD5050 SMD3528

Driver:: Not including (dc12v /24v ,cv driver required

LED Space:: 33.33mm

Warranty(Years):: 3 years

Certification:: CE, RoHs, CE, FCC, RoHS

Luminous Efficacy(lm/w):: 100

Quick Details

Lamp Body Material:: Aluminum

Warranty(Year):: 3-Year

Input Voltage(V):: DC12V

Lamp Luminous Flux(lm):: 5700lm

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 5000

Place of Origin:: Guangdong, China

Brand Name:: Xinelam

Model Number:: RX-ALF5050-33

Color Temperature(CCT):: Cool White

Size:: 600x600mm

LED QTY:: 576LED

Color:: CW6000-6500K WW2700-3200K NW4200-4700K

Chip Material:: InGan

LED source:: SMD5050 SMD3528

Driver:: Not including (dc12v /24v ,cv driver required

LED Space:: 33.33mm

Warranty(Years):: 3 years

Certification:: CE, RoHs, CE, FCC, RoHS

Luminous Efficacy(lm/w):: 100

Product Description

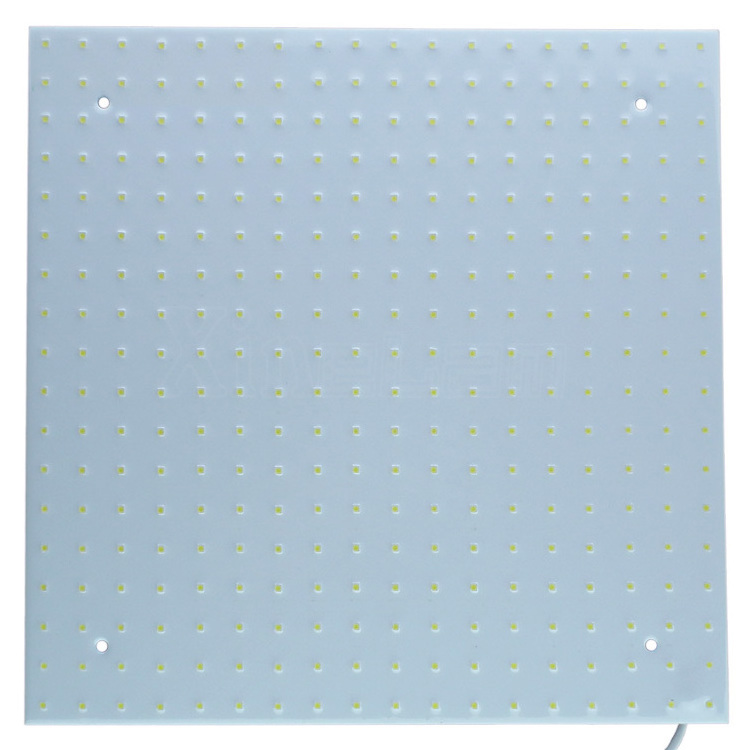

Available in full color NW/WW/CW/RGB rgbw module led panel dc12v IP67 waterproof

RX-ALF5050 waterproof LED aluminum panel, With top SMD5050, unique waterproof design, the world's first, holds several patents, has a slim, low temperature rise, waterproof, safe, reliable, long life; strength over 20,000 hours aging test; Around the world, more than 5 years practical application, to good effect. Used in place of large-scale projects, shopping malls, railway stations, airport, high-brightness lighting.

Main Feature

available in WW,CW ,CW, RGB, RGBW !

1. DC 12v operated,constant voltage, more safe and reliable

2. Super slim 3mm thin,lightweight and protable

3. Top Epistar LED 100LM/W,SMD3528,SMD5050,SMD5730 or SMD2835

4. Waterproof ip67 cover with epoxy, white and black color available

5. Aluminum heat dissipation,No heat sink required

6. Sizes and shapes customized

7. Real energy saving more than 60% compare with traditional backlight system

8. Longer life > 50000hr reduce maintenance cost

9. CRI>80, CCT 3000-3500K,4200-4700K,6000-6500K

10. Various Sizes,watt,brightness for selection

11.CE RoHS IES approval

12. Quality 3 years warranty

Specifications

WW,NW,CW datasheet

MODEL	Diameter LED QTY	Lumen	Power DC12V
RX-ALF5050-33	300x300mm 81LED	1500LM	15W
		300x600mm 162LED	3000LM	30W
		600x600mm 324LED	5800LM	58W

RGB datasheet

MODEL	Diameter LED QTY	Lumen	Power DC12V
RX-ALF5050-33- R G B	200x200mm 36LED	180LM	Max6.6W
		300x300mm 81LED	405LM	Max15W
		300X600mm 162LED	810LM	Max30W
		600x600mm 324LED	1620LM	Max60W

RGBW datasheet

MODEL	Dimension LED QTY	Lumen	Power DC12V
RX-ALF5050-33-RGBW-3030	300x300mm 81pcs RGB LED 81pcs WW LED	1550Lm/WW 400Lm/RGB	15W/WW 15W/RGB
RX-ALF5050-33-RGBW-3060	300x600mm 162pcs RGB LED 162pcs WW LED	3000Lm/WW 800Lm/RGB	30W/ww 30W/RGB
RX-ALF5050-33-RGBW-5050	500x500mm 225pcs RGB LED 225pcs WW LED	4000Lm/WW 1060Lm/RGB	40W/ww 40W/RGB
RX-ALF5050-33-RGBW-6060	600x600mm 324pcs RGB LED 324pcs WW LED	5700Lm/WW 1500Lm/RGB	57W/ww 57W/RGB

Detailed Images

waterproof IP 67 ( has test report)

WW,NW CW

R G B color

RGBW color

Related product

Cuttable flexible led sheet

Certifications

waterproof IP 67 test report

CE& ROHS Certificatiions

Scope of application

1.Bus shelter light boxes

2.Kiosk advertising

3.Large Publicity display

4.Shopping mall light boxes

5.Airport/Metro light boxes

6.Commercial advertising light boxes

7.Architectural Walls & Columns

8.Floor Backlit

9.Advertising billboard,poster,signboard

10.Decoration light and other wide range of applications

11.IY Lighting Projects

Our Company

Xinelam-Ruixian electronic factory founded in 2003.Always focusing on green lighting products, especially in green led lightings' design and development.

Our team having strong R&D capabilities and 11 product patents included the invention, utility model and appearance design etc.

Company Culture: Technical Innovation, Quality-oriented, Credit Foremost, Professional Focus, Creating Value for Customers.

Our Service

Small and sample orders accepted

Response your inquiry within 12 hours

Good after-sales service

Fast delivery after the order confirmed

Payment term: TT, Western union, Paypal

Packing & Delivery

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?
