Quick Details
-
Brand Name:
-
GoldenMorning
-
Product Name:
-
White 7P Mini Screen 2.08 Inch Oled Module Display
-
Resolution:
-
256x64
-
Interface:
-
SPI
-
Color:
-
White
-
Panel Size:
-
75.5x19.35x5.9mm
-
Active Area:
-
51.18x12.78
-
Driver IC:
-
SH1122
-
Pins:
-
7P
-
Operating Temperature:
-
-40~70℃
-
Storage temperature:
-
-40~80℃
Quick Details
-
Type:
-
PMOLED
-
Display Size:
-
2.08inch
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GoldenMorning
-
Product Name:
-
White 7P Mini Screen 2.08 Inch Oled Module Display
-
Resolution:
-
256x64
-
Interface:
-
SPI
-
Color:
-
White
-
Panel Size:
-
75.5x19.35x5.9mm
-
Active Area:
-
51.18x12.78
-
Driver IC:
-
SH1122
-
Pins:
-
7P
-
Operating Temperature:
-
-40~70℃
-
Storage temperature:
-
-40~80℃
Product Description

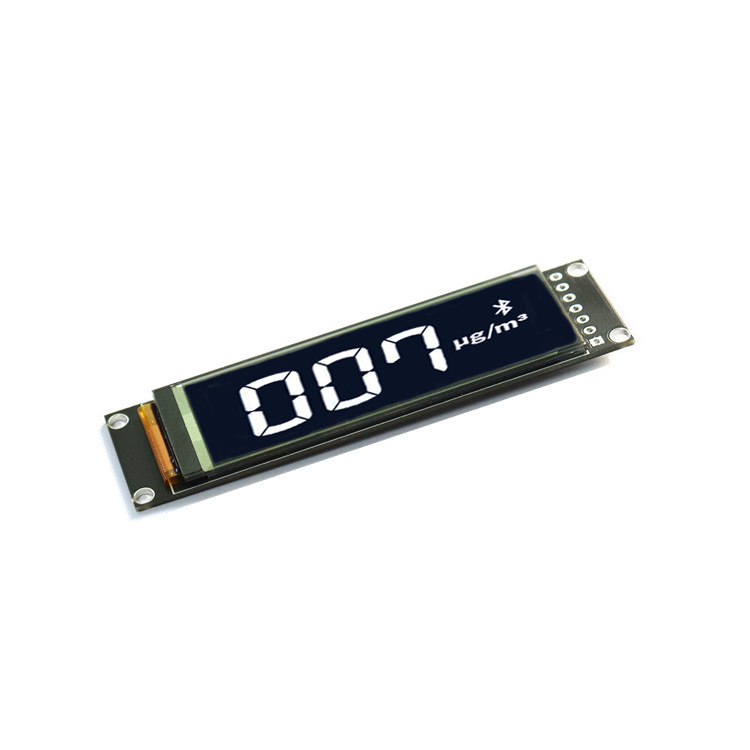

Factory 256x64 SPI interface White 7P Mini Screen 2.08 Inch Oled Module Display
2.08" white oled display module
| Diagonal Screen Size |
2.08 inch |
| Color | Mono(White) |
| Model number | GME25664-65 |
| Resolutions |
256x64 |
| Outline dimension | 75.5x19.35x5.9mm |
| Active area | 51.18×12.78mm |
| Pixel pitch | 0.20×0.20mm |
| Pixel size | 0.18×0.18mm |
| Driver IC | SH1122 |
| Voltage | 3-5V |
| Interface | SPI |
| Operating temperature | -40~70℃ |
| Storge Temperature | -40~80℃ |
| Assemble | Soldering |
| Pins | 7P |
Drawing(0.96" oled display module)
Pin Assignment(2.08"oled module,7P)
