Quick Details
-
Driven mode:
-
Electric motor or Diesel engine
-
Capacity:
-
8m3/h
-
Theoretical capacity:
-
12m3/h
-
Concrete Slump:
-
12~18cm
-
Max. system pressure:
-
16 MPa
-
Working air pressure:
-
0.4-0.6 Mpa
-
Conveying pipe ID.:
-
57/51mm
-
Theory:
-
Hydraulic shotcrete pump
-
Keyword:
-
Shotcrete machine
Quick Details
-
Hose Inner Diameter:
-
57 mm
-
Place of Origin:
-
Henan, China
-
Product name:
-
KBS-8A shotcrete machine
-
Driven mode:
-
Electric motor or Diesel engine
-
Capacity:
-
8m3/h
-
Theoretical capacity:
-
12m3/h
-
Concrete Slump:
-
12~18cm
-
Max. system pressure:
-
16 MPa
-
Working air pressure:
-
0.4-0.6 Mpa
-
Conveying pipe ID.:
-
57/51mm
-
Theory:
-
Hydraulic shotcrete pump
-
Keyword:
-
Shotcrete machine

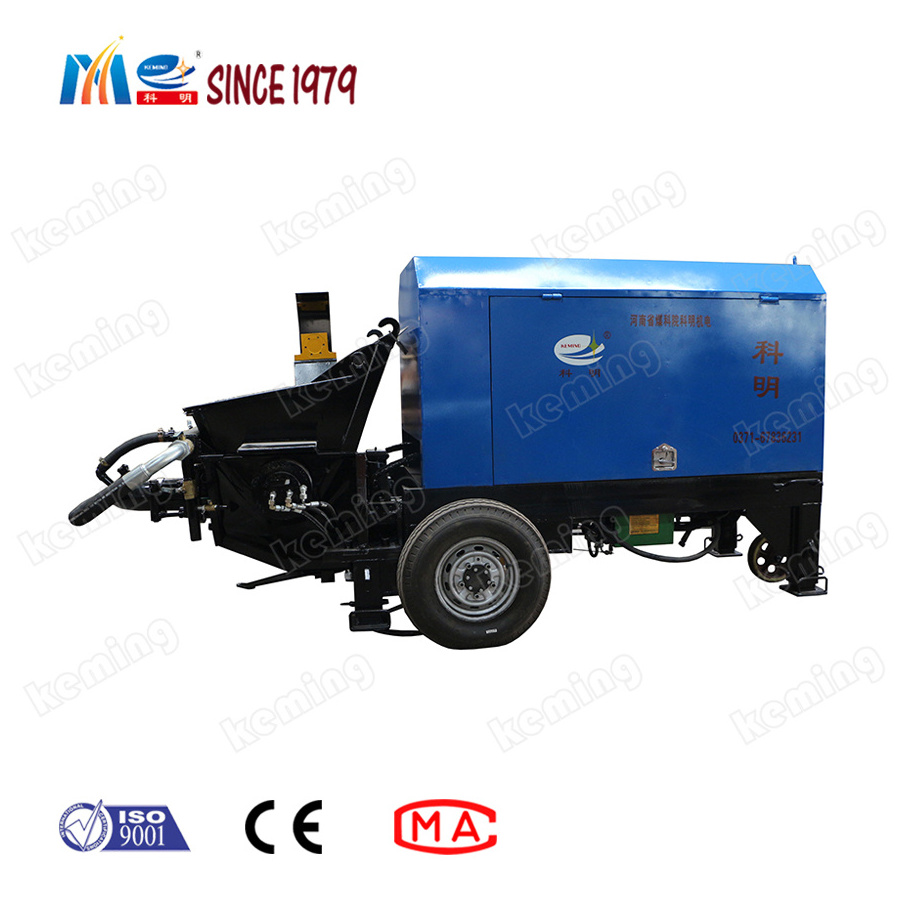

KBS-8A Shotcrete Machine
Shotcrete Pumping Type Concrete Spraying Machine for Sale
Shotcrete Machine Features:
1. This machine has advanced technology, complete functions, large internal space and convenient maintenance.
2. The hydraulic system adopts the mature hydraulic valve block with sensitive and reliable valves; The main oil pump adopts a manual variable pump, which can be manually adjusted to achieve continuous adjustment of injection volume.
3. The electrical part sets a variety of automatic protection modes in the control program, which replaces the complicated relay circuit, featuring the simplest operation, lowest failure rate and highest reliability.
4. Glasses plate and cutting ring (with automatic compensation device) adopts hard alloy with imported wear-resistant electrode, featuring anti-wear, small resistance, better material suction performance.
5. Large-capacity oil tank and forced air cooling with large flow rate can control the oil temperature of the system within a reasonable range, maximizing the service life of the system.
6. As for mixing system, the seal and bearing adopt a dual independent sealing structure, which can eliminate slurry leakage and reduce the possibility of damage of hydraulic motor.
7. Main lubrication points are automatically or manually lubricated, which effectively extends the service life of vulnerable parts.
Shotcrete Machine Application:
1. convey fine aggregate concrete and mortar for high buildings.
2. grout heat-insulated lightweight foamed cement, mortar floor heating, and self leveling for ground architecture.
3. spray plain concrete and fiber concrete in engineering construction.
4. convey and spray refractory and thermal insulation material.
5. spray afforestation soil in ecological environment construction.
6. pressure perfussion for foundation piles, backfill in overbroken tunnels, railway slope supporting, and disaster management.
Shotcrete Machine Technical Parameters:
|
Model |
|
KBS-8A hydraulic shotcrete machine |
|
Max. theoretical capacity |
m³/h |
12 |
|
Working capacity |
m³/h |
3-8 |
|
Max. system pressure |
Mpa |
16 |
|
Working air pressure |
Mpa |
0.4-0.6 |
|
Max. aggregate diameter |
mm |
15 |
|
Max. theoretical vertical delivery dist |
mm |
150 |
|
Max. theoretical horizontal delivery dist. |
mm |
400 |
|
Total weight |
Kg |
2600 |
|
Dimensions |
mm |
3800*1400*1730 |
|
Main motor power |
KW |
22 |
|
Hopper volume |
m³ |
0.4 |
|
Concrete slump |
cm |
12-18 |
|
Dust concentration around |
mg/m³ |
<6 |
|
Feeding height |
mm |
1150 |
|
Oil tank capacity |
L |
180 |
|
Rebound rate |
% |
≤10 |
Shotcrete Machine Detailed Pictures:
