Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGRUN
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
6100x2800x2660mm
-
Weight (KG):
-
14800 kg
-
Product Name:
-
Cement Hollow Blocks Industry Brick Paver Making Machine
-
Model:
-
HR10-15
-
Power:
-
40KW
-
Main machine size:
-
6100x2800x2660mm
-
Forming height:
-
32-200mm
-
Forming area:
-
1040x800mm
-
Block type:
-
Interlocking Hollow Block
-
Molding cycle:
-
15s
-
Weight:
-
14.8T
-
Advantage:
-
High Efficiency
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
Other
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, Other, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGRUN
-
Voltage:
-
Local Voltage
-
Dimension(L*W*H):
-
6100x2800x2660mm
-
Weight (KG):
-
14800 kg
-
Product Name:
-
Cement Hollow Blocks Industry Brick Paver Making Machine
-
Model:
-
HR10-15
-
Power:
-
40KW
-
Main machine size:
-
6100x2800x2660mm
-
Forming height:
-
32-200mm
-
Forming area:
-
1040x800mm
-
Block type:
-
Interlocking Hollow Block
-
Molding cycle:
-
15s
-
Weight:
-
14.8T
-
Advantage:
-
High Efficiency
Factory Supply Cement Hollow Blocks Industry Brick Paver Making Machine Hydraulic Cement Fly Ash Brick Machine

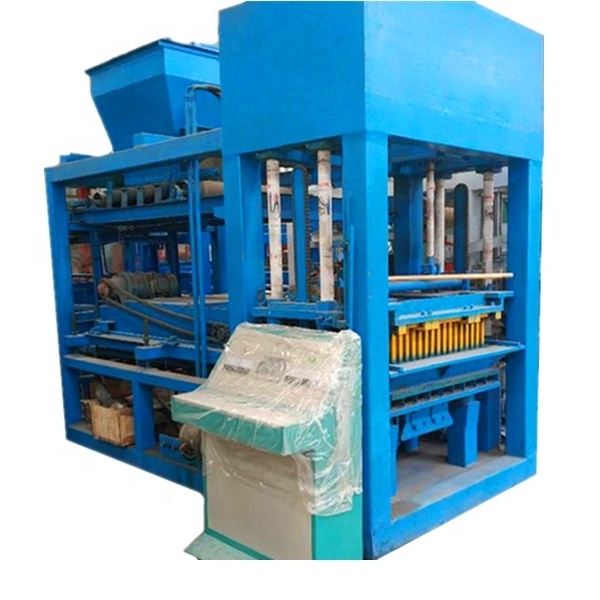

HR10-15 Concrete Block Machine
Model HR10-15 block making machine, which has big capacity of block production, which can produce 10pcs/mould(400*200*200mm), only 10-15s can get the block, it is operated without worker.
It is equipped with PLC control system. And all the mould can be made by customers’ drawings. The key parts are brand electrical parts to guarantee good quality. So if you need a high capacity and fully automatic block making machine, the model HR10-15 is the best choice for your block production project.
The Specifications of HR10-15 Hydraulic Concrete Block Making Machine
|
The S pecifications of H R10-15 Hydraulic Concrete Block Making Machine |
|
|
Model |
HR10-15 |
|
Type |
Hydraulic pressure |
|
Main machine size |
6100x2800x2660mm |
|
Total power |
40kwTotal power |
|
Forming area |
1040x800mm |
|
Forming height |
32-200mm |
|
Molding cycle |
15s |
|
Weight |
14.8T |
Technical Features of HR10-15 Block Machine :
Recycle material feeding system: Economize in material for different or same density products.
Reliability design of the The machine frame is made of super- strength steel and by special welding technology, the imported elements are applied widely, so that the stability and reliability of the machine in long term running are insured.
Mould frames are made of 55# Manganese steel, and the tamper head is made of 16# manganese steel. After carburizing, the hardness can reach 60 degrees, lifespan can use over 100000 times. Standard brick mould can double-side use, lifespan can use over 120000 times.
Hydraulic parts and seals parts on hydraulic pressure system adopts imported materials, which protects pressure discharging or leakage.
Multi use; Strong performance; The many kind of products with difference form and size can be made when use the difference mold, such as wall block, honeycomb type block, road block and slope block.
Choose The Block Which You Want To Produce
Block Samples of HR 10-15 Block Machine:
Packing
Shipping
The machine will be shipped with wooden case which has the plastic film inside, and will be delivered in 15 days after receives the payment.
