Quick Details
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.32 μm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUIHUA
-
Voltage:
-
According to customer's requirement
-
Weight (KG):
-
680
-
Power (kW):
-
According to customer's requirement
-
Type:
-
Surface Grinding Machine
-
Application:
-
artificial
-
Max. Grinding Length:
-
540mm
-
Max. Grinding Diameter:
-
220mm
-
Advantage:
-
High Precision Low Cost
-
Grinding head motor:
-
4kw
-
Spindle Speed:
-
2850r/min
-
spindle motor:
-
1.1kw
-
Precision:
-
0.01-0.02mm
-
Grinding wheel:
-
200*17*31.75/32
Quick Details
-
Grinding Length(mm):
-
540
-
Table Travel (X) (mm):
-
540
-
Table Travel (Y) (mm):
-
220
-
Wheel Size(mm):
-
200
-
Surface Roughness(μm):
-
0.32 μm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
RUIHUA
-
Voltage:
-
According to customer's requirement
-
Weight (KG):
-
680
-
Power (kW):
-
According to customer's requirement
-
Type:
-
Surface Grinding Machine
-
Application:
-
artificial
-
Max. Grinding Length:
-
540mm
-
Max. Grinding Diameter:
-
220mm
-
Advantage:
-
High Precision Low Cost
-
Grinding head motor:
-
4kw
-
Spindle Speed:
-
2850r/min
-
spindle motor:
-
1.1kw
-
Precision:
-
0.01-0.02mm
-
Grinding wheel:
-
200*17*31.75/32
|
specifications
|
Parameters
|
|
Unit
|

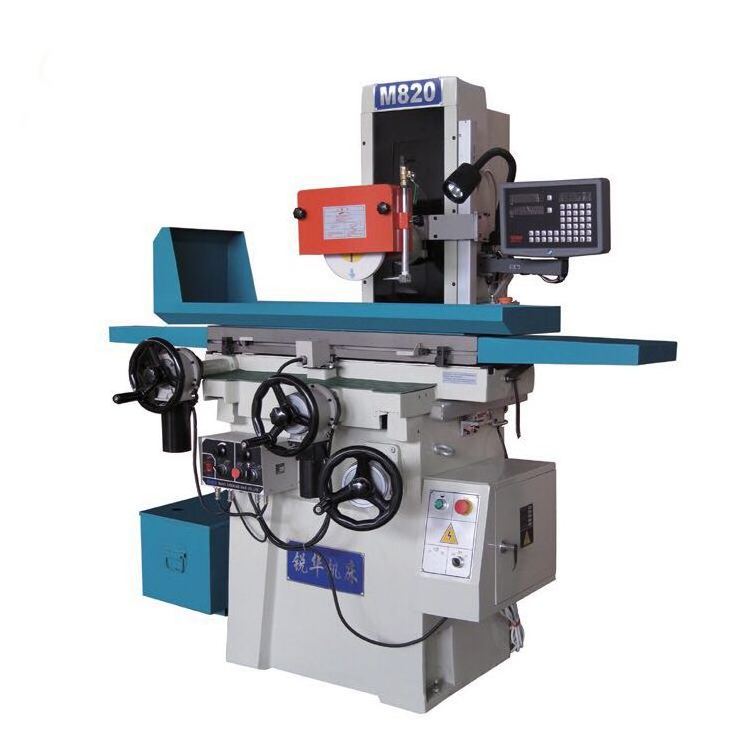

M820 / M820S
|
|
|
Processing capacity |
Working Surface of Table
|
|
mm
|
200x510
|
|
|
|
Max Table Travel
|
|
mm
|
540
|
|
|
|
Max Cross Travel
|
|
mm
|
220
|
|
|
|
Distance Between Table Surface and Spindle Cent
|
|
mm
|
450
|
|
|
|
Max Table Load
|
|
kgs
|
100
|
|
|
The workbench |
Tee Slot(NumberXwidlh)
|
|
mm
|
14x1
|
|
|
|
Table Speed
|
|
m/min
|
/Manual
|
|
|
|
Crossfeed Handwheel
|
1grad
|
mm
|
0.02
|
|
|
|
|
1rev
|
|
2.5
|
|
|
|
Automatic Crossfeet of Saddle
|
|
mm
|
-
|
|
|
|
Power Cross Feed
|
50HZ
|
mm
|
-
|
|
|
|
|
60HZ
|
|
-
|
|
|
Grinding wheel |
Grinding Wheel
|
|
mm
|
20 200x17x31.75/32
|
|
|
|
Spindle Speed
|
50HZ
|
rpm
|
2850
|
|
|
|
|
60HZ
|
|
3420
|
|
|
Upper and lower
structure |
Vertical Handwheel
|
1grad
|
mm
|
0.01
|
|
|
|
|
1rev
|
|
1.25
|
|
|
The motor |
Spindle Motor
|
|
kw
|
1.1
|
|
|
|
Hydraulic Motor
|
|
kw
|
-
|
|
|
|
Dust Coliection Motor
|
|
kw
|
-
|
|
|
|
Coolant Motor
|
|
w
|
40
|
|
|
|
Crossfeed Motor
|
|
w
|
-
|
|
|
|
Floor Space
|
|
mm
|
1900x1300x1850
|
|
|
size
|
Net Weight
|
|
kgs
|
850
|
|
|
|
Gross Weight
|
|
kgs
|
900
|
|
