Quick Details
-
Output Speed:
-
23-140rmp
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
tianji
-
Item:
-
gear box
-
Model:
-
50-120
-
Ratio:
-
1/10-1/60
-
Power:
-
1/4HP-5HP
-
Output diameter:
-
17mm-45mm
-
Weight:
-
7.8KG-70KG
-
Housing material:
-
cast iron
-
Transmission:
-
worm
-
Output torque:
-
4.94-122Nm
-
Volatge:
-
DC24V
-
Certification:
-
FCC
Quick Details
-
Gearing Arrangement:
-
Worm
-
Output Torque:
-
custom
-
Input Speed:
-
1400rmp
-
Output Speed:
-
23-140rmp
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
tianji
-
Item:
-
gear box
-
Model:
-
50-120
-
Ratio:
-
1/10-1/60
-
Power:
-
1/4HP-5HP
-
Output diameter:
-
17mm-45mm
-
Weight:
-
7.8KG-70KG
-
Housing material:
-
cast iron
-
Transmission:
-
worm
-
Output torque:
-
4.94-122Nm
-
Volatge:
-
DC24V
-
Certification:
-
FCC

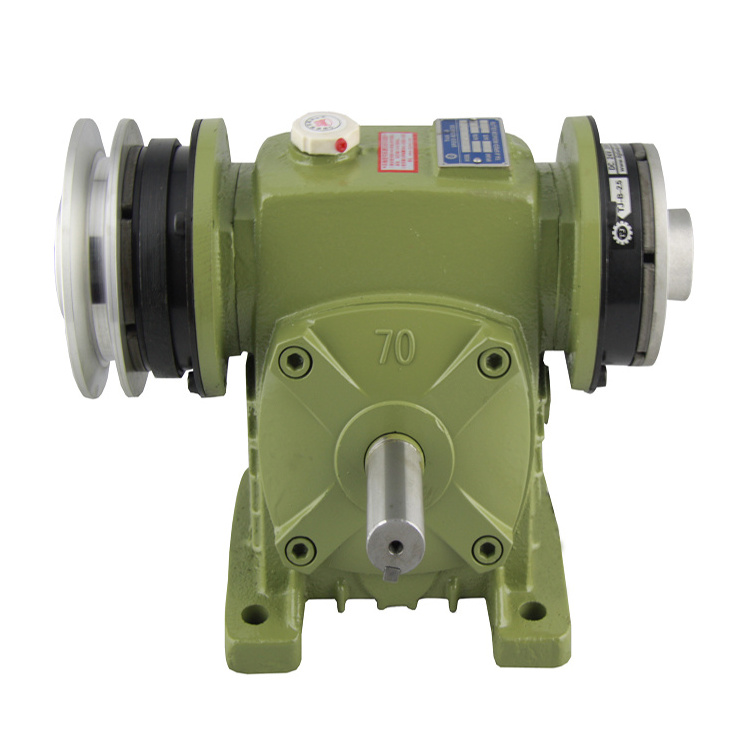

Factory directly sell WPA reduction gear box,worm gear box
Gear reduction boxes are used to transfer rotation and torque from motor to working machine.Most reduction gear boxes are used to decrease speed by gears in the gear box .
Reduction gear box is much widely used in mordern machinery systems,since it’s ratio can be up to 1:100 easily ,which is much bigger than all gears box , and it’s demision is much smaller than all gears when ratio is same.
Design characteristics:
1:Use low-carbon cast iron cementation processing completely.
2:The gear and the gear shft precision is high.
3:The volume small,but the torque is big.
Maintence:
After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.
Pls do not mix the mineral oil and synthetic oil.
pls check the oil level in regular time.
Storage:
1:Pls do not store in outdoor.
2:Pls put cardboard, wood or other material between the products and floor. the gear reduction boxes cannot directly touch the floor.
General Technical data
| Housing material | high-strength cast iron gear reduction boxes |
| Housing hardness | HBS190-240 |
| Gear material | cast iron |
| Surface hardness of gears | HRC58°~62 ° |
| Gear core hardness | HRC33~40 |
| Input / Output shaft material | 42CrMo alloy steel |
| Input / Output shaft hardness | HRC25~30 |
| Machining precision of gears | accurate grinding, 6~5 Grade |
| Lubricating oil | Size 37 up to 87 with oil, size 97 up to 187 without oil. |
| Heat treatment | tempering, cementiting, quenching, etc. |
| Efficiency | 94%~96% (depends on the transmission stage) |
| Noise (MAX) | 60~68dB |
| Temp. rise (MAX) | 40°C |
| Temp. rise (Oil)(MAX) | 50°C |
| Vibration | ≤20µm |
| Backlash | ≤20Arcmin |
| Brand of bearings | HRB,LYC,ZWZ,NSK or other brand |
| Brand of oil seal | NAK--- Taiwan or other brand |
