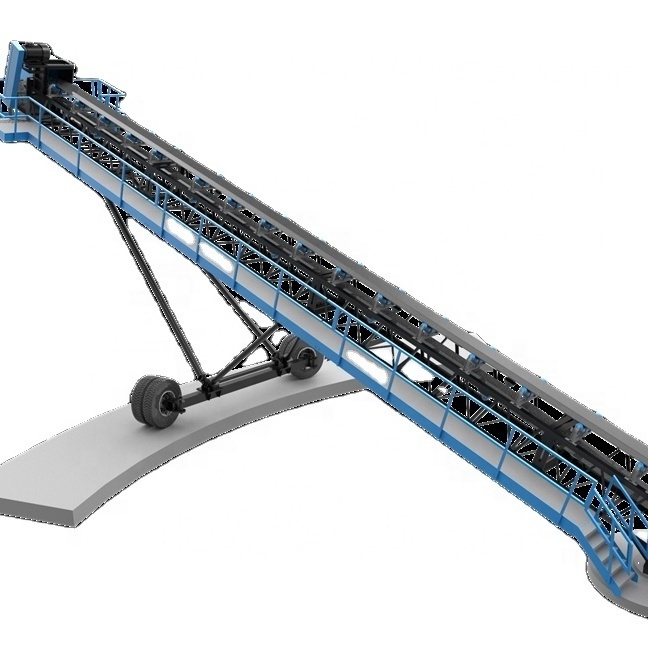

Wheeled Belt Conveyor for Material Transportation Easy Moving Portable Conveyor for Mining Conveyor Belt for Aggregate

Wheeled Belt Conveyor for Material Transportation Easy Moving Portable Conveyor for Mining Conveyor Belt for Aggregate

Fixed / Stationary Belt Conveyor

Fixed belt conveyors are widely used in various industries such as metallurgy, mining, coal, power stations, building materials, etc., for the transportation of bulk materials. It has the characteristics of high production efficiency, large transportation volume, low energy consumption, continuous long-distance transportation, stable and reliable operation, low noise, low pollution, simple structure, and low operating cost.

Long-distance curved belt conveyor

Long-distance curved belt conveyor refers to a special belt conveyor that uses a flat conveyor belt to achieve a flat turn, and can also perform a vertical convex-concave arc turn with a flat turn to form a spatial turn.

It is by raising the inner curve of the conveyor belt to generate an outward centrifugal thrust when the conveyor is running to overcome the centripetal force of the conveyor belt tension caused by the turning, and to ensure the turning operation of the conveyor belt. The use of curved operating lines to avoid obstacles or unfavorable areas, to achieve fewer or no intermediate transfer stations, so as to achieve the purpose of reducing the number of equipment, making the power supply and control system of the system more centralized and convenient, and improving the reliability of the safe operation of the system.

Mine conveyor system

It can provide intermittent, semi-continuous, and continuous open-pit mining schemes, and can adopt a unique continuous mining technology that integrates drilling, blasting, mining, crushing, transportation and other links, which can improve mining efficiency and save investment .

Advantage 1: Continuous process, including: bucket wheel excavator, belt conveyor system, soil dumper, etc.; the system production capacity is 3600-6000 cubic meters per hour.

Advantage 2: Semi-continuous process includes: self-moving crushing station, self-moving transfer machine, belt conveyor system, crawler transporter, etc.; the system production capacity is 3200-5500t/h.

Mobile conveyor

The general trend of the development of open-pit mining technology at home and abroad is large-scale mining, continuous production, and modern equipment. With the technological advancement of mining technology and equipment in the open-pit mining industry worldwide, mobile belt conveyors, displaceable belt conveyors, and semi-displaced belt conveyors are the main technical equipment for open-pit mining. The conveyor machine can realize the horizontal movement of the whole machine by pulling the rail or skid by the displacement machine. In addition, the machine also has the characteristics of long transportation distance, large transportation volume, and no fixed foundation.

Tubular conveyor

According to user needs, the tube belt conveyor machine can realize two-way conveying of materials, that is, the upper tape conveys the materials from the tail to the head, and the lower tape conveys the materials from the head to the tail. This product is suitable for continuous conveying of bulk materials under various complex terrain conditions. The density of conveyed materials is generally 0.5 to 2.5t/m3.

It uses ordinary tubular conveyor belts and the working environment temperature is -25℃~+40℃; For those with special requirements such as cold resistance, heat resistance, waterproof, anti-corrosion, explosion-proof, flame-retardant, etc., the working environment temperature can reach -35℃~+110℃. This product can be widely used in material conveying systems in industries such as electric power, building materials, chemicals, mining, metallurgy, docks, ports, coal, and grain.

The tube belt conveyor is a new type of belt conveyor in which the belt is wrapped by rollers with a hexagonal cross-section to form a round tube with the edges overlapping each other to convey materials. It is clean and environmentally friendly, the conveyor line can be flexibly arranged along the space curve, the conveying angle is large, and the single-machine transportation distance is long under complex terrain conditions. At the same time, compared with ordinary belt conveyors, it has small space and low construction costs (can save ordinary belt conveyors).

It has the advantages of convenient installation and maintenance, safe and reliable operation, and the tape is not easy to deviate. Our company can carry out general contracting of on-site topographic survey, system design, equipment manufacturing, installation, debugging, after-sales service and other projects according to user requirements, and provide users with nanny-style services throughout the process.

Large angle conveyor

Our company provides large inclination conveyors for conveying bulk materials, providing high-quality and long-term solutions for vertical conveying.

Feature sof product:

Conveying bulk materials at a large angle;

Conveyor belt inclines up to 90°, saving space;

Protect the conveyed materials, and it is not suitable to scatter materials;

High lateral stability and strong longitudinal flexibility;

We also can customize conveyor pulley, conveyor roller & conveyor cleaner for your needs if you only to do replacement of these parts.

Some Successful Cases

Welcome to send inquiry. We can give you suitable proposal for your project. You will like our equipment.
