Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V/50Hz
-
Power:
-
15KW
-
Dimension(L*W*H):
-
2750*1650*2500mm
-
Weight:
-
1600 kg
-
Marketing Type:
-
carton folding and gluing machine
-
Name:
-
carton folding and gluing machine
-
Cardboard thickness:
-
1.5-5mm
-
Production capacity:
-
1500-1680 pcs/h
-
Power source:
-
380V/50Hz
-
Noise level:
-
≤80dB
-
Total Power:
-
15 KW
-
Height of cardboard stacking:
-
280mm
-
Cardboard stacking table load:
-
30/kg
-
Machine size:
-
2750*1650*2500mm
-
Keyword:
-
carton folding and gluing machine
Quick Details
-
Production Capacity:
-
1500-1680pcs/h
-
Product Type:
-
carton folding and gluing machine
-
Processing Type:
-
carton folding and gluing machine
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fect
-
Voltage:
-
380V/50Hz
-
Power:
-
15KW
-
Dimension(L*W*H):
-
2750*1650*2500mm
-
Weight:
-
1600 kg
-
Marketing Type:
-
carton folding and gluing machine
-
Name:
-
carton folding and gluing machine
-
Cardboard thickness:
-
1.5-5mm
-
Production capacity:
-
1500-1680 pcs/h
-
Power source:
-
380V/50Hz
-
Noise level:
-
≤80dB
-
Total Power:
-
15 KW
-
Height of cardboard stacking:
-
280mm
-
Cardboard stacking table load:
-
30/kg
-
Machine size:
-
2750*1650*2500mm
-
Keyword:
-
carton folding and gluing machine

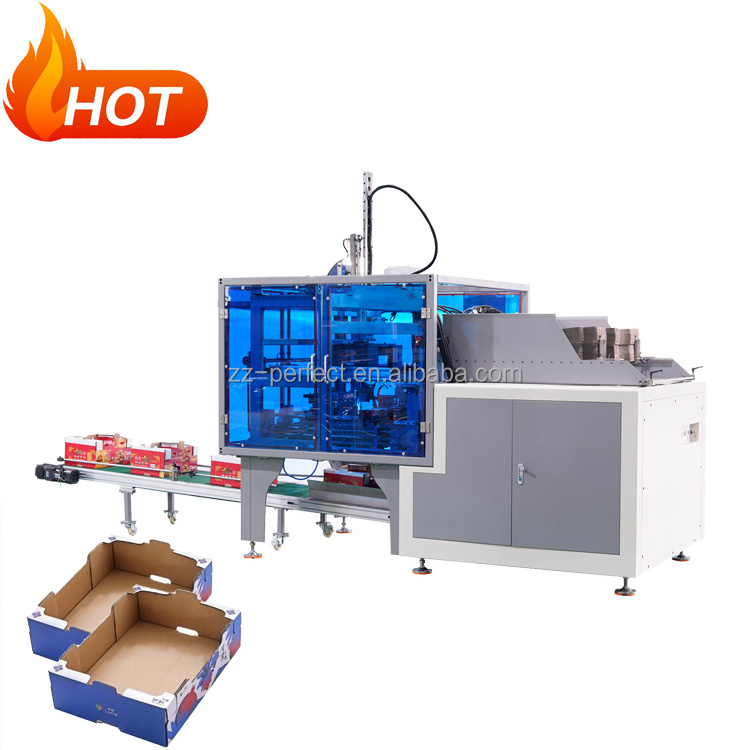

full automatic corrugated Cardboard Box Carton Folding Forming Machine ruit packing box manufacturing machine
♦Application♦
In addition to the traditional lid and base boxes, the machine can also produce other palletized boxes, as well as no adhesive machine folding boxes and other packaging carton production and processing. It is suitable for the processing of food packaging boxes, fruit, vegetable packaging boxes and other products that need packaging.
♦Techincal parameter♦
|
Type |
PFZH - 1200 |
|
Cardboard thickness |
1.5mm (minim um) 5mm (maximum) |
|
Production capacity |
1500 - 1680 pcs/h |
|
Power source: |
380V 50HZ ( please inform us your power in advance ) |
|
Noise level |
≤ 80dB |
|
Total Power: |
15 KW |
|
Height of cardboard stacking |
280mm |
|
Cardboard stacking table load |
30/kg |
|
Glue bucket capacity |
10L |
|
Air supply requirement |
50 Litre/min |
|
Weight: |
1 6 0 0KG |
|
Box size |
180 x 180 x 60mm 520 x 380 x 230mm |
|
Machine size |
2750*1650*2500 |
|
Packing size |
500*370mm 1000*1000mm |
♦Features♦ 1. The imported intelligent glue spraying system is used, with the function of auto matic glue spraying and filling .
2. Adopt folding knife function in forming , which can do a variety of box type s.
3. I nduced draft bottom pumping type paperboard automatic feeding , c ontinuous operation of paper feeding, forming, conveying and stacking is completed at one time.
4. Adopt motion programmable controller, photoelectric tracking system, air source detection and operation system, touch screen human - mach ine interface, and implement the whole process automation of the forming of the paper box es .
5 . Fiber optic positioning folding edge gluing to reduce gluing errors. Autamacically s ervo pushes the paperboard to apply glue before and after, reduce the error of photoeye irradiating the paperboard, and apply glue more accurately .
6 . Infrared safety protection system to ensure th e safety of personnel operation .
7 . Automatic fault diagnosis function .
8. Automatic and quick mold adjustment function.
9. Framecage design, overall processing, grouping combination.
10. The whole machine covers a small area and has good stability.
| Automatic feeding mechanism | |
|
Fully imported glue spray system |
|
|
Fully automatic finished product output mechanism
|
|
|
High - quality industrial control appliances |
