Quick Details
-
Brand Name:
-
yuyang
-
Model Number:
-
YYD007-3
-
Maximum measured stroke:
-
150mm
-
speed range:
-
1-300mm/min
-
Driving gear:
-
ball screw
-
drive motor:
-
servo motor
-
size:
-
380*280*1000(W*D*H)mm
-
weight:
-
76kg
-
power:
-
AC110V or 220V
-
Certification:
-
GB
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
yuyang
-
Model Number:
-
YYD007-3
-
Maximum measured stroke:
-
150mm
-
speed range:
-
1-300mm/min
-
Driving gear:
-
ball screw
-
drive motor:
-
servo motor
-
size:
-
380*280*1000(W*D*H)mm
-
weight:
-
76kg
-
power:
-
AC110V or 220V
-
Certification:
-
GB
Product Description
Description:

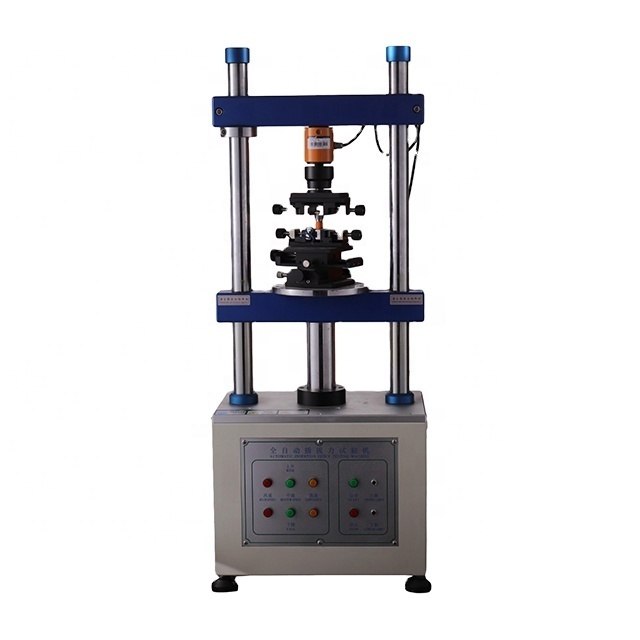

Computer insertion force testing machine is suitable for all kinds of connector insertion force and output test, tie-in patent device, design the automatic evaluation of heart will receive completely accurate insertion force test, using the Windows Chinese screen set, simple and convenient operation, and all data can be stored (test conditions, the displacement curve, the curve, the life, inspection reports, etc.), solve the problem of all kinds of connector test fixture and the test of male female connector can automatic alignment, won't have a problem for unilateral.The dynamic impedance test system is optional, which can test the dynamic impedance and draw (load stroke - impedance curve) at the same time as testing the plug and pull force.
Features:
1.The telephone plug and pull force testing machine test conditions are set by the computer picture, and can be stored.By the drop-down menu tick set or directly enter data.(Including test category, determination of motion direction, load measurement range, stroke measurement range, origin position of stroke, detection of original point of stroke, determination of speed, determination of total number of times, waiting position of each pause time, number of air pressure, etc.)
2.Can store and print graphics (load - stroke curve - load attenuation life curve - inspection report) overload protection
function, can ensure that the load will not be damaged.
3. Display load-stroke and life curves at the same time.
4. Automatic zero point detection of load, and can set the original point detection of load value.
5.Load unit display: N, LB, GF, KGF can be freely switched.
6.The computer plug and pull force testing machine adopts high rigidity structure design, with Panasonic servo motor, long time use can ensure the accuracy, suitable for general tension compression test and plug and pull force life test.
2.Can store and print graphics (load - stroke curve - load attenuation life curve - inspection report) overload protection
function, can ensure that the load will not be damaged.
3. Display load-stroke and life curves at the same time.
4. Automatic zero point detection of load, and can set the original point detection of load value.
5.Load unit display: N, LB, GF, KGF can be freely switched.
6.The computer plug and pull force testing machine adopts high rigidity structure design, with Panasonic servo motor, long time use can ensure the accuracy, suitable for general tension compression test and plug and pull force life test.
Test items:
1, connector single hole plug and pull test
2. Connector plug and pull life test
3, Connector Normal Force test
4. Plug and pull test for the whole row of connectors
5, connector single PIN and plastic holding force test
6, can be connected with the contact impedance machine at the same time (optional)
7, all kinds of compression, tensile failure strength test
2. Connector plug and pull life test
3, Connector Normal Force test
4. Plug and pull test for the whole row of connectors
5, connector single PIN and plastic holding force test
6, can be connected with the contact impedance machine at the same time (optional)
7, all kinds of compression, tensile failure strength test
Specification
Parameter:
|
Model
|
YYD007-1（Normalized type）
|
YYD007-2（High precision type）
|
|
YYD007-3（Wide type）
|
|||
|
Minimum display stroke
|
0.01mm
|
0.001mm
|
|
0.01mm
|
|||
|
Pillar spacing
|
230mm
|
230mm
|
|
400mm
|
|||
|
Test the type of load
|
2kgf、5kgf、10kgf、20kgf、50kgf、100kgf
|
|
|
|
|||
|
·
Minimum display load |
0.01gf、1gf、10gf、10gf、10gf、10gf
|
|
|
|
|||
|
Load precision
|
0.2%FS
|
|
|
|
|||
|
Maximum measured stroke
|
150mm
|
|
|
|
|||
|
speed range
|
1-300mm/min
|
|
|
|
|||
|
X and Y axis movement range
|
0-75mm
|
|
|
|
|||
|
Driving gear
|
ball screw
|
|
|
|
|||
|
drive motor
|
servo motor
|
|
|
|
|||
|
size
|
380*280*1000（W*D*H）mm
|
|
580*380*1300
（W*D*H）mm |
|
|||
|
weight
|
76kg
|
|
100kg
|
|
|||
|
power
|
AC110V or 220V
|
|
|
|
|||
