The machine can automatic feeding bag, filling liquid into bag, cap loading, capping and finished bag discharged
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
China
-
Brand Name:
-
Atpack
-
Dimension(L*W*H):
-
1800*2000*2200
-
Weight:
-
1500 KG
-
Marketing Type:
-
New Product 2023
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, Other, 6000BPH, 500BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Other
-
Filling Material:
-
Other, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±0.5%
-
Voltage:
-
220V/380V
-
Place of Origin:
-
China
-
Brand Name:
-
Atpack
-
Dimension(L*W*H):
-
1800*2000*2200
-
Weight:
-
1500 KG
-
Marketing Type:
-
New Product 2023
Product Description

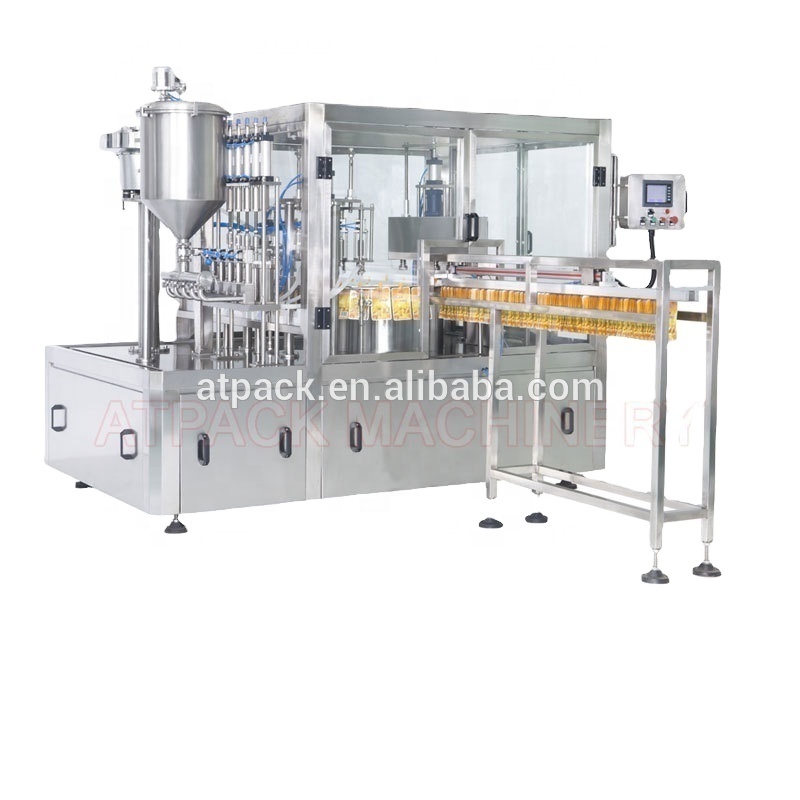

Spout pouch filling and capping machine is specially applied to fill all kinds of liquid, such as fruit juice, milk, detergent, beverage, etc.
Spout pouch filling and capping machine works automatically: pouches feeding---positioned filling---cleaning ---caps loading---caps screwing---end-products discharging .
Dust-proof covering to ensure hygiene. According to clients’ requirements, we also can add or cancel some functions. With reasonable design, advanced function
Function:
Product Paramenters
|
Model
|
SFC-1
|
SFC-2
|
SFC-4
|
SFC-6
|
|||
|
Filling nozzles
|
1
|
2
|
4
|
6
|
|||
|
Capping heads
|
1
|
2
|
4
|
6
|
|||
|
Bag type
|
Pouch with spout and cap
|
|
|
|
|||
|
Cap type
|
Standard cap, anti-choke cap, etc.
|
|
|
|
|||
|
Filling material
|
liquids, paste, oil, juice etc material that get ability to flow.
|
|
|
|
|||
|
Filling range
|
10-100ml 50-500ml 100-1000ml 500-5000ml
|
|
|
|
|||
|
Filling Error
(For max volume)
|
Within ±0.5%
|
|
|
|
|||
|
Capacity
(for 250g filling)
|
800-1200BPH
|
1500-2000BPH
|
3000-4000BPH
|
4500-6000BPH
|
|||
|
Capacity(different filling volumes)
|
(Varies according to the material nature, material viscosity, filling volume, nozzle number, spout inner diameter)
|
|
|
|
|||
|
Material contact parts
|
SUS316
|
|
|
|
|||
|
Machine structure
|
SUS304
|
|
|
|
|||
|
Power supply
|
AC 220V/380V 50/60Hz (can be customized based on different voltages)
|
|
|
|
|||
|
Air pressure
|
0.2m3/min(0.6MPa)
|
0.4m3/min(0.6MPa)
|
0.6m3/min(0.6MPa)
|
0.8m3/min(0.6MPa)
|
|||
|
Weight
|
800KG
|
900KG
|
1000KG
|
1100KG
|
|||
|
Dimensions(mm)
|
|
|
|
|
|||
Configurations
|
No.
|
Components
|
Brand
|
Original
|
|
1
|
PLC
|
Omron
|
Japan
|
|
2
|
HMI
|
Omron
|
Japan
|
|
3
|
Motor
|
Lichao
|
Shanghai
|
|
4
|
Switch
|
Schneider
|
France
|
|
5
|
Cylinder
|
Airtac
|
Taiwan
|
|
6
|
Pneumatic parts
|
Airtac
|
Taiwan
|
|
7
|
Filling valve
|
Atpack
|
Zhejiang
|
|
8
|
Sensor
|
Keyence
|
Japan
|
|
9
|
Ink-jet Printer (Optional)
|
Markem-Imaje
|
France/USA
|
Detailed Images
Working process
Electric and pneumatic combined driving are used, resulting in stable driving . This machine work automatically from pouch loading, filling, spout cleaning
Adopt sensors for pouch detecting, a sensor for cap channel in cap vibrator , and sensors for cap detecting, and multi-nozzle filler are individually controlled, so no pouch, no filling; no cap, machine stops
Pouch loading
The machine adopt automatic pouch loading,easy & stable.
Filling
The machine adopt piston filling machine to fill material, so it can fill different shape and volume pouches,filling error is very amsll(for max volume.the filling error is within ±0.5％)
Cap loading
Automatic cap loading & detecting，no cap machine stop.
Capping
Capping adopts m
agnetic torque capping, no harm to the cap, when cap is screwed to target tightness, capping motor will rotate as usual, but capping head will stops
Product discharge
Working process is finished,pouch automatically falls into the
prepared tank.
Certifications
Packing&Shipping
Packing
The package adopts outside package (standard export wooden case) and inner package (stretch film), it is suitable for long distance transport, damp proofing, rust prevention, and shockproof etc, and also suitable for sea, land transport and entirety lifting.
After Sales Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24 hours Hotline: 86-13917505479 (English speaking engineer)
