* 32 units Micro-procession technology is used.
* Wide voltage range: 8-36V.
* 4 digits LED tube which can display mains, voltage, frequency.
* Totally 7 relay's output, max current is 5A(250VAC).
* 1 group programmable switch input.
* Parameters can be set by front face buttons.
* Standard water-proof rubber, the protection level can reach at IP54
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Mebay
-
Model Number:
-
ATS220
-
Product Name:
-
Generator Controller ATS220 With Auto Transfer Switch
-
Operation Voltage:
-
DC8-36V Continuous
-
Power Consumption:
-
Standby:24V:MAX 1W
-
Mains AC Voltage Input:
-
30VAC-300VAC(ph-N)
-
Gens AC Voltage Input:
-
30VAC-300VAC(ph-N)
-
Switch Value Input:
-
Available if connecting with Battery -
-
Working Condition:
-
-30-70℃
-
Protection Level:
-
IP54
-
Panel Cutout:
-
67mm*67mm
-
Weight:
-
0.3Kg
Quick Details
-
Current:
-
9999
-
Warranty:
-
1 Year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Mebay
-
Model Number:
-
ATS220
-
Product Name:
-
Generator Controller ATS220 With Auto Transfer Switch
-
Operation Voltage:
-
DC8-36V Continuous
-
Power Consumption:
-
Standby:24V:MAX 1W
-
Mains AC Voltage Input:
-
30VAC-300VAC(ph-N)
-
Gens AC Voltage Input:
-
30VAC-300VAC(ph-N)
-
Switch Value Input:
-
Available if connecting with Battery -
-
Working Condition:
-
-30-70℃
-
Protection Level:
-
IP54
-
Panel Cutout:
-
67mm*67mm
-
Weight:
-
0.3Kg
Main Products
Product Description

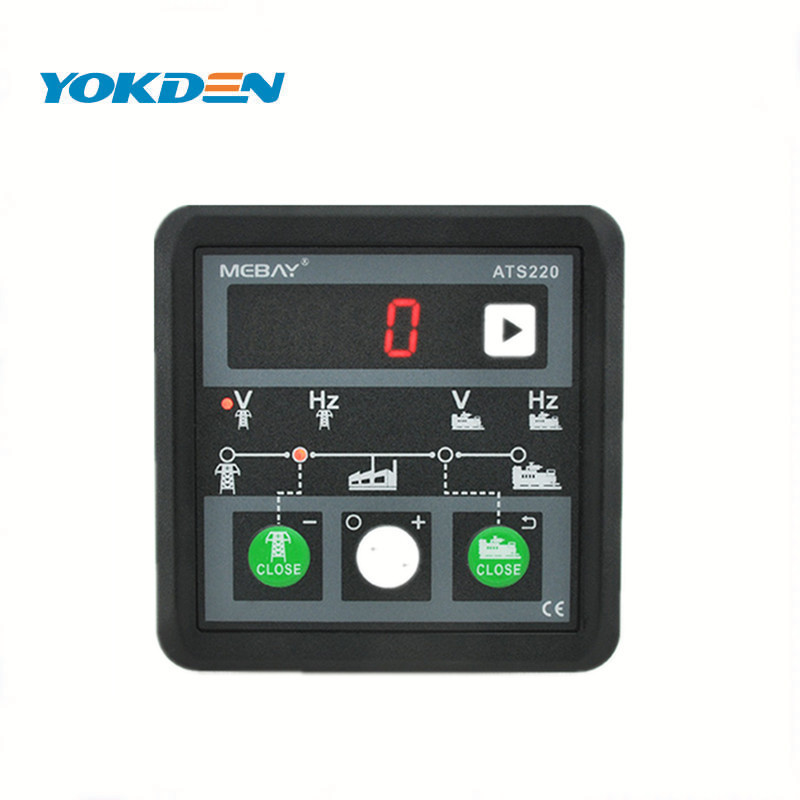

Generator Controller ATS220 With Auto Transfer Switch
ATS220 is one controller with ATS system of Mains and genset power,which can control the ATS switch by auto or manual mode to apply for mains and gens power.
Detailed Images
Main Features
Parameters Display
* Mains phase voltage
* Mains Frequency
* Gens phase voltage
* Gens Frequency
|
Specification Parameter for Genset ATS controller ATS220
|
|
|
|
which can control the ATS switch
|
|
|
|
Operation Voltage
|
DC8-36V Continuous
|
|
|
Power Consumption
|
Standby:24V:MAX 1W
|
|
|
|
Working:24V:MAX 3W
|
|
|
Mains AC Voltage Input
|
30VAC-300VAC(ph-N)
|
|
|
Gens AC Voltage Input
|
30VAC-300VAC(ph-N)
|
|
|
Gens Close Output
|
5Amp(AC250V) free output
|
|
|
Mains Close Output
|
5Amp(AC250V) free output
|
|
|
Gen Start Relay
|
5Amp(AC250V) free output
|
|
|
Protection Level
|
IP54:when waterproof rubber gasket is added between controller and its panel
|
|
|
Overall Dimension
|
78mm*78mm*55mm
|
|
|
Weight
|
0.3kg
|
|
