Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Shuxin
-
Model Number:
-
SX-HC01
-
Wire Gauge:
-
4.0mm.5.0mm
-
Product name:
-
China supplier good quality Most Sold for Shuxin defensive barriers
-
Surface treatment:
-
Hot Dipped Galvanized
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Pallet
-
Feature:
-
Easily Assembled
-
Cells:
-
1*1*1m,1*1*2m,
-
Units:
-
5 cells, 10 cells,6*5 cells
-
Usage:
-
Protection
-
Color:
-
Dark Green,Brown, Sand Color
Quick Details
-
Material:
-
Galvanized Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Shuxin
-
Model Number:
-
SX-HC01
-
Wire Gauge:
-
4.0mm.5.0mm
-
Product name:
-
China supplier good quality Most Sold for Shuxin defensive barriers
-
Surface treatment:
-
Hot Dipped Galvanized
-
Certificate:
-
ISO9001:2008
-
Packing:
-
Pallet
-
Feature:
-
Easily Assembled
-
Cells:
-
1*1*1m,1*1*2m,
-
Units:
-
5 cells, 10 cells,6*5 cells
-
Usage:
-
Protection
-
Color:
-
Dark Green,Brown, Sand Color
Galfan Coated Chinese Supplier Defensive and Protection Barriers for Sale in Jordan

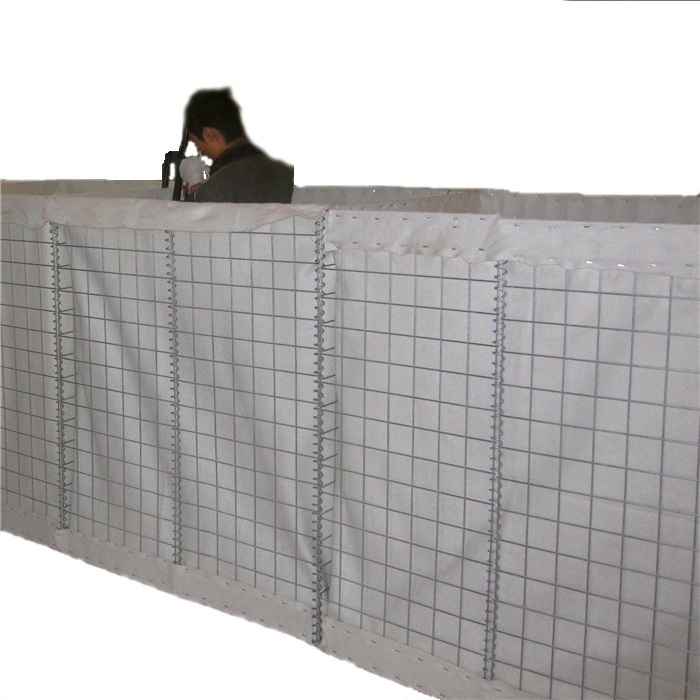

1.Introduction: Welded Gabion barrier with Geotextile is also named as Welded bastion, Welded defense wall, Welded Barrier,Sand Cage, Welded Gabion box, etc. It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for fortification and flood control.Accessories Supplied With Carrier Units.
2.Operational principle: It is made of galvanized welded mesh,spring with other fittings,can be filled with sand,earth,cement,stone,can be used in separate cell or some cells joint together.
3. Quality Warranty: We use the right material, give you the right specification, no work to cut the material!
|
|
|
|
Defensive Bastion Barrier Specification:
1. Wire diameter: 4-5mm
2. Mesh size: 75x75mm,50 x50mm
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;Color:Grey and Green,Sand color etc.
5. Finish: hot dipped galvanized, Galfan wire.
6. Packing: wrapped with shrink film or packed in pallet
Dimensions of Defensive Bastion Barrier:
| Unit Type |
Height (M) |
Width (M) |
Length (M) |
Internal Cells |
| SX-01 | 1.37 | 1.08 | 10 | 9 |
| SX-02 | 0.61 | 0.61 | 1.22 | 2 |
| SX-03 | 1.0 | 1.0 | 10 | 10 |
| SX-04 | 1.0 | 1.5 | 6 | 6 |
| SX-05 | 0.61 | 0.61 | 3.05 | 5 |
| SX-06 | 1.68 | 0.61 | 3.05 | 5 |
| SX-07 | 2.21 | 2.13 | 8.25 | 4 |
| SX-08 | 1.37 | 1.22 | 10 | 9 |
| SX-09 | 1.0 | 0.76 | 6.84 | 9 |
| SX-10 | 2.13 | 1.52 | 7.6 | 5 |
Connecting Detail:
Application:
|
Perimeter Security and Defence Walls Equipment Revetments Personnel and Material Bunkers Observation Points Defensive Firing Positions Guard Posts Explosives and Contraband Search Areas Highway Checkpoints Border Crossing Checkpoints Protecting Existing Structures Flood contro retaining wall Coastal Erosion Protection engineering of seaside area. |
