Quick Details
-
Certificate:
-
CE ISO13485
-
Contact lens:
-
-25.00D-+25. ODD (BC=6.00-9.00) (0.01D/0.12D/0.25DSTEPS)
-
CYLINDER:
-
0.00D-±10.00D(-,MIX,+} (0.01D/0.12D/0.25DSTEPS)
-
AXIS:
-
0°-180°(1°STEPS)
-
PD measuring range:
-
42-82mm,Single vision PD prigressive lens far vision PD
-
UV:
-
>100% (±15.00D~±25.00D, >20%)
-
Display:
-
7"color and touch screen (800*480)
-
Printer:
-
Thermal Printer
-
Power supply:
-
AC100(±10%) -240(±10%)V 50/60HZ 40VA
-
Dimensions:
-
203(W) x 233(D)x471(D)MM
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPVIEW
-
Model Number:
-
TL6800C
-
Certificate:
-
CE ISO13485
-
Contact lens:
-
-25.00D-+25. ODD (BC=6.00-9.00) (0.01D/0.12D/0.25DSTEPS)
-
CYLINDER:
-
0.00D-±10.00D(-,MIX,+} (0.01D/0.12D/0.25DSTEPS)
-
AXIS:
-
0°-180°(1°STEPS)
-
PD measuring range:
-
42-82mm,Single vision PD prigressive lens far vision PD
-
UV:
-
>100% (±15.00D~±25.00D, >20%)
-
Display:
-
7"color and touch screen (800*480)
-
Printer:
-
Thermal Printer
-
Power supply:
-
AC100(±10%) -240(±10%)V 50/60HZ 40VA
-
Dimensions:
-
203(W) x 233(D)x471(D)MM

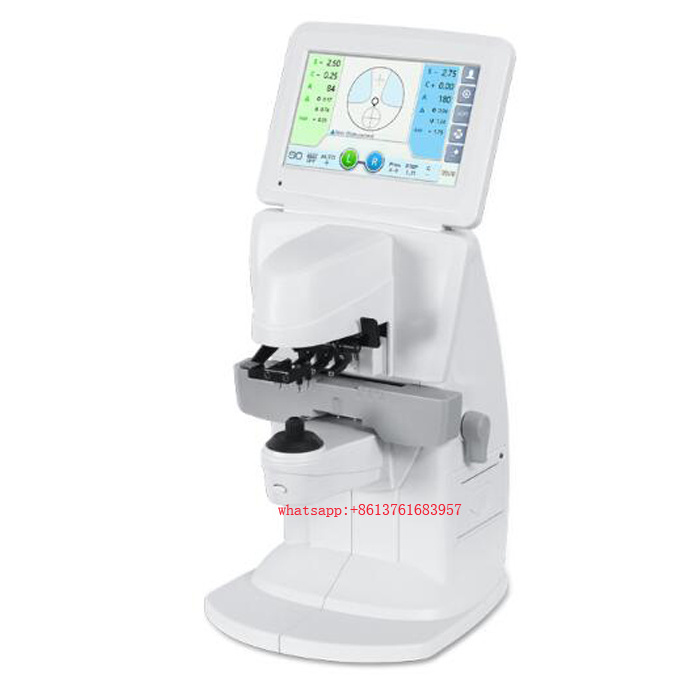

China New Model TL6800 Digital automatic lensometer with PD, UV, Printer and Blue Green Light
1. Breif Introduction:
TL-6800 auto lensmeter is produced to measure the vertex and prism of lenses and contact lenses.
The auto lensmeter can be used to determine the direction of the axis of the Cylinder (with astigmatism). And mark the center and the axis of the uncut lens. It also could checks whether the lens is properly installed on the frame.
The device mainly includes three modules: display module, measurement module and output module.
2. Features:
It can measure single vision, multi vision, progressive power lenses and contact lenses.
It can measure pupillary distance (PD) and pupillary high (PH).
It can measure visible light and ultraviolet light transmittance (UV center wavelength of 365nm).
The highest reading accuracy of this digital display auto lensmeter is 0.01D.
It equipped with a quiet, high-speed, and high-quality thermal printer.
It equipped with Bluetooth, RS-232C interface, LAN interface, easy to connect with other devices.
It has many kinds of measurement functions, such as automatic identification, automatic reading, automatic R/L switching and automatic ADD functions.
It can adjust the LCD display angle, there is a good view of the operation when you stand or sit down.
TL-6800 auto lensmeter implement the enterprise standards, accordance with the national standard GB17341-1998 optics and optical instruments.
3. Main t echnical par a m e t ers:
3.1 Sphere measurement range:
-25.00DS ~ +25.00DS
Steps:
0.01DS/0.06DS/0.12DS/0.25DS
3.2 Cylinder measurement range:
0.00 ~ ±10.00DC
Measurement mode:
Mix/ + / -
Steps:
0.01DC/0.06DC/0.12DC/0.25DC
3.3 Cylinder axis measurement range:
0°~ 180° Steps: 1°
3.4 ADD measurement range:
-10DS~+10DS
Steps:
0.01DS/0.06DS/0.12DS/0.25DS
3.5 Prism measurement range:
0 ~ 20
Measurement mode:
X-Y rectangular coordinates P-B polar coordinates
Steps:
0.01
3.6 Measurable lens diameter:
φ10mm ~φ119 mm
3.7 Measurable lens center thickness:
<=20mm
3.8 PD measurement range:
42mm ~ 82mm
PH measurement range:
8mm ~ 45mm
3.9 Measurable frame leg length:
0 ~ 155mm
3.10 Observation measurement UV transmittance
3.11 Vertex power measure wave length:
525nm
UV measure wave length:
370nm
3.12 Power supply:
AC 100V-240V, 50Hz-60Hz
3.13 Rated power:
35VA
3.14 Dimension:
203mm(L)×233mm(W)×471mm(H)
3.15 Weight:
4.5Kg
3.16 Display:
800x480 TFT touch screen
3.17 Printer:
57mm Thermal printer
3.18 Interface:
RS232, ETHNET, USB
3.19 Working temperature, humidity, air pressure range:
Environment temperature:
0 ~ 45℃
Humidity:
<=85%
Air pressure:
500~1060 HPa
| SPHERE | -25.00D-+25.OOD(step:0.01/0.06/0.12/0.25D) |
| Contact lens |
-25.00D-+25. ODD (BC=6.00-9.00)
(0.01D/0.12D/0.25DSTEPS) |
| CYLINDER |
0.00D-±10.00D(-,MIX,+}
(0.01D/0.12D/0.25DSTEPS) |
| AXIS | 0°-180°(1°STEPS) |
| ADD |
0.00D-±10.00D (Add and Ad2)(Step:
0.01/0.06/0.12/0.25D)
0.00D-±10.00D (Add and Ad2) |
| PRISM |
0.00Δ-20.00Δ (horizantal,vertical) X-Y,P-B
( 0.01/0.06/0.12/0.25D STEPS) |
| PD measuring range | 42-82mm,Single vision PD , prigressive lens far vision PD |
| Wavelength/measuring point | 525 nm(Green) /145 within nosepiece |
| Diameter for contact lens | Φ5MM |
| UV | >100% (±15.00D~±25.00D, >20%) |
| Display | 7"color and touch screen (800*480) |
| Printer | Thermal Printer |
| DATD INTERFAGE | RS-232/LAN/USB |
| Power supply | AC100(±10%) -240(±10%)V 50/60HZ 40VA |
| Dimensions | 203(W) x 233(D)x471(D)MM |
| Weight | 4.5 KG |
4 Equipment structure
1. Touch screen
2. Power indicator It indicates on or off of the power to the device.
On: Power turned on.
Off: Power turned off.
3. Lens holder mechanism
To secure a lens: Lift once and lower gently.
To release a lens: Lift until it clicks.
4. Lens support
A lens to be measured is placed on the lens support.
When measure contact lenses, replace the standard lens support with the provided
one for contact lenses.
5. Memory button
Used to memory measured data.Press this button to display the measurement data on the screen.
6. Marking mechanism
Mark the center point of the lens.
7. PD measurement mechanism
Measure the pupillary distance of frame glasses.
8. Lens flapper
Place the lens so that the edge of the contact lens flapper. Show the diameter of the lens.
9. Flapper handle
Move the lens flapper to forward and backward.
10. Printer
11. RS232 interface
Used for communication.
12. Power inlet
Connect a removal power cord.
13. USB port
Transfer the measured data to a computer andother equipment.
14. Network port
15. SD card port
Upgrade the program.
16. Power switch
Turn on or off power to the device
