HUALONG machinery Multifunctional Pneumatic quarry rock driller 100mm Down-the-hole Stone Borehole DTH Drilling rig Machine

HUALONG machinery Multifunctional Pneumatic quarry rock driller 100mm Down-the-hole Stone Borehole DTH Drilling rig Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $6000

≥19 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drilling Depth:: Max.30m

Mobility:: Portable

After Warranty Service:: Video technical support

Quick Details

Place of Origin:: Fujian, China

Weight:: 600 KG

Drilling Diameter:: 90mm

Drilling Depth:: Max.30m

Mobility:: Portable

After Warranty Service:: Video technical support

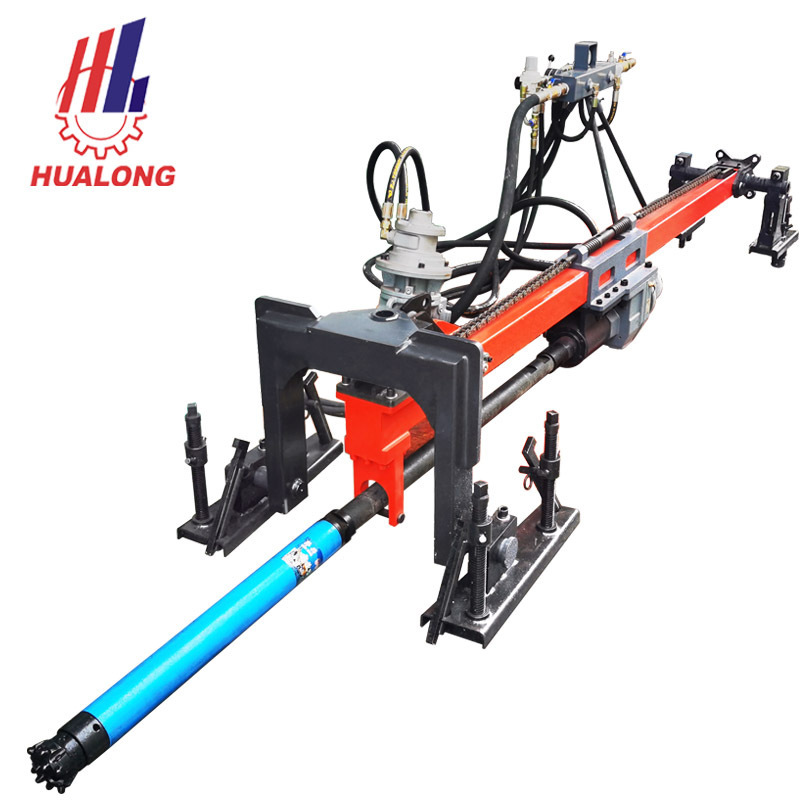

HDTH-100P Quarry Stone Driller

The DTH drilling machine, driven by high quality compressed air motors, is used for driling large diameter horizontal, vertical and slantwise holes for the passage of diamond wire during stone quarrying. It's an essential assistive equipment for wire saw machine to quarry stone.

Technical Data
Driving system	kw	3.0 / 1.5 air motor
Diameter of drill hole	mm	90
Max. depth of drilling	m	30
Speed of Drilling	m/h	6-8
Min. air pressure	Mpa	0.6-0.7
Air consumption	M ³ /min	8-10
Single feeding distance	m	1
Drilling direction		any direction
Net. Weight	ke	600

Main Features:

1. Forward, turn and impact are all powered by compressed air.

2. High quality pneumatic components ensure the low energy and air consumption and high efficiency.

3. Simple structure, centralized control mechanism, easy to operate.

4. Light weight, easy installation and transportation.

5. Particular screwing and discharging mechanism of the tube devices reduces the intensity of labor.

6. Particular design for guiding drilling.

Q: What is the MOQ?
A: 1 set.
Q: When will you ship my order?
A: Normally 25-35 days after deposit received, If urgent, it can be negotiated further.
Q: What’s the warranty time?
A: One year.
