Quick Details
-
Model Number:
-
LARIX422-920S
-
Type:
-
Hand Measuring Tools
-
Product name:
-

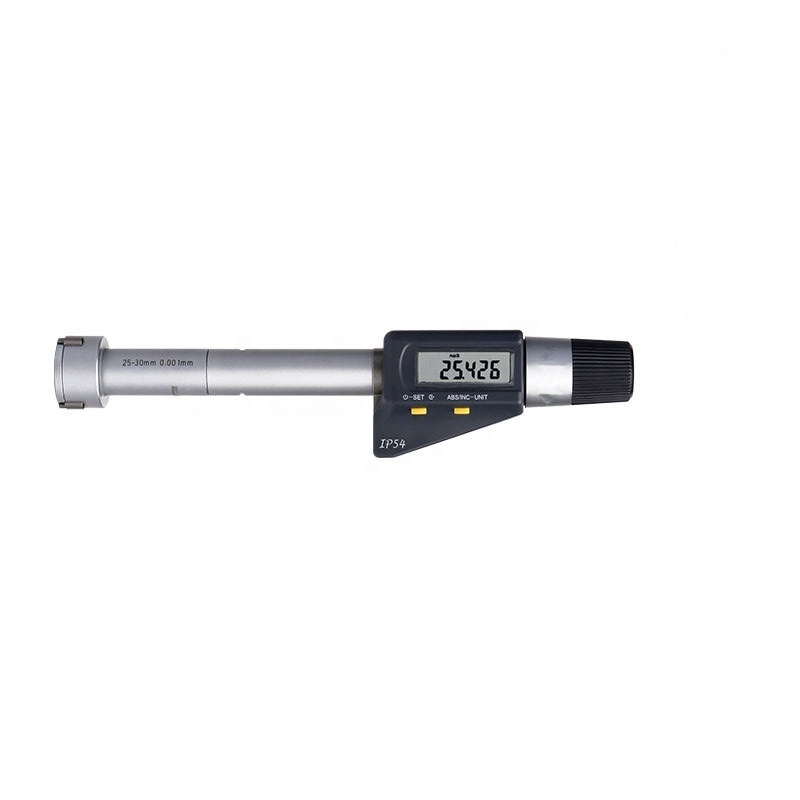

Three Point Digital Internal Mircometer
-
Measuring range:
-
6-100mm
-
Resolution:
-
0.005mm
-
Accuracy:
-
0.004mm
-
Color:
-
Silver
-
Material:
-
Steel+plastic
-
Feature:
-
Easy Operation
-
Usage:
-
Inside Measurement
-
Packing:
-
Customized Packing
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
LARIX
-
Model Number:
-
LARIX422-920S
-
Type:
-
Hand Measuring Tools
-
Product name:
-
Three Point Digital Internal Mircometer
-
Measuring range:
-
6-100mm
-
Resolution:
-
0.005mm
-
Accuracy:
-
0.004mm
-
Color:
-
Silver
-
Material:
-
Steel+plastic
-
Feature:
-
Easy Operation
-
Usage:
-
Inside Measurement
-
Packing:
-
Customized Packing
Product Description
Description
Model Number: LARIX 422-920S
Product name : IP54 Waterproof 6-100mm Digital Three Point Inside Micrometer Digital Internal Mircometer
Measuring Range: 6-100mm
Model Number: LARIX 422-920S
Product name : IP54 Waterproof 6-100mm Digital Three Point Inside Micrometer Digital Internal Mircometer
Measuring Range: 6-100mm
Resolution :0.005mm
Accuracy :0.004mm
Packaging Information
Selling Units:Single item /plastic box
Packaging :20pcs /Carton
Gross weight: 16.00 kg
Packaging Information
Selling Units:Single item /plastic box
Packaging :20pcs /Carton
Gross weight: 16.00 kg
Feature
1.Suitable for blind hole or through hole precision measurement 2.Mating long rod for deep hole measurement
3.Chrome-plated steel frame
4.Carbide measuring surface
5.The measuring rod is made of high quality steel and is hardened overall ratchet force measuring mechanism
6.Standard configuration :box ,extension rod ,proofing ring gauge (less than 100mm)
3.Chrome-plated steel frame
4.Carbide measuring surface
5.The measuring rod is made of high quality steel and is hardened overall ratchet force measuring mechanism
6.Standard configuration :box ,extension rod ,proofing ring gauge (less than 100mm)
7. IP54 Waterproof
Specification
|
Order no.
|
Measure range (mm)
|
Reading(mm)
|
Resolution(mm)
|
Setting ring (mm)
|
Extension bar
|
|
LARIX422-920S-01
|
6~8
|
0.001
|
±0.004
|
Φ8
|
Φ5.8×100
|
|
LARIX422-920S-02
|
8~10
|
0.001
|
±0.004
|
Φ8
|
Φ5.8×100
|
|
LARIX422-920S-03
|
10~12
|
0.001
|
±0.004
|
Φ10
|
Φ5.8×100
|
|
LARIX422-920S-04
|
12~16
|
0.005
|
±0.004
|
Φ16
|
Φ10.8×100
|
|
LARIX422-920S-05
|
16-20
|
0.005
|
±0.004
|
Φ16
|
Φ10.8×100
|
|
LARIX422-920S-06
|
20~25
|
0.005
|
±0.004
|
Φ20
|
Φ17×150
|
|
LARIX422-920S-07
|
25~30
|
0.005
|
±0.004
|
Φ30
|
Φ17×150
|
|
LARIX422-920S-08
|
30~40
|
0.005
|
±0.004
|
Φ30
|
Φ23.5×150
|
|
LARIX422-920S-09
|
40~50
|
0.005
|
±0.005
|
Φ40
|
Φ23.5×150
|
Packing & Delivery
Services
- Reply your inquiry within 12 hours.
- Experienced staffs answer all your questions in professional Manner, proficient in English.
- Customized design is available. OEM&ODM are warmly welcomed.
- Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
