16ATC Arm ATC can be choose as optional
- Product Details
- {{item.text}}
Quick Details
-
Table Travel (Y) (mm):
-
400
-
Spindle Taper:
-
BT40-150
-
Dimension(L*W*H):
-
2200*1500*1950mm
-
Weight (T):
-
3.5 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Place of Origin:
-
China
-
Brand Name:
-
SHANDONG HUAWEI
-
Voltage:
-
380V 220V 430V
-
Marketing Type:
-
New Product 2021
-
Machine Type:
-
vmc 5 axis cnc
-
Product name:
-
shandong HUAWEI VMC650
-
Color:
-
Custom-made
-
Guideway type:
-
Taiwan Linearway
-
T Slot:
-
3-14*90
-
Key word:
-
vmc 5 axis cnc VMC650 cnc milling machine 240v of taiwan
Quick Details
-
Table Size (mm):
-
900x400
-
Number of Axes:
-
3
-
Table Travel (X) (mm):
-
600
-
Table Travel (Y) (mm):
-
400
-
Spindle Taper:
-
BT40-150
-
Dimension(L*W*H):
-
2200*1500*1950mm
-
Weight (T):
-
3.5 T
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
1 - 10000 mm/min
-
Place of Origin:
-
China
-
Brand Name:
-
SHANDONG HUAWEI
-
Voltage:
-
380V 220V 430V
-
Marketing Type:
-
New Product 2021
-
Machine Type:
-
vmc 5 axis cnc
-

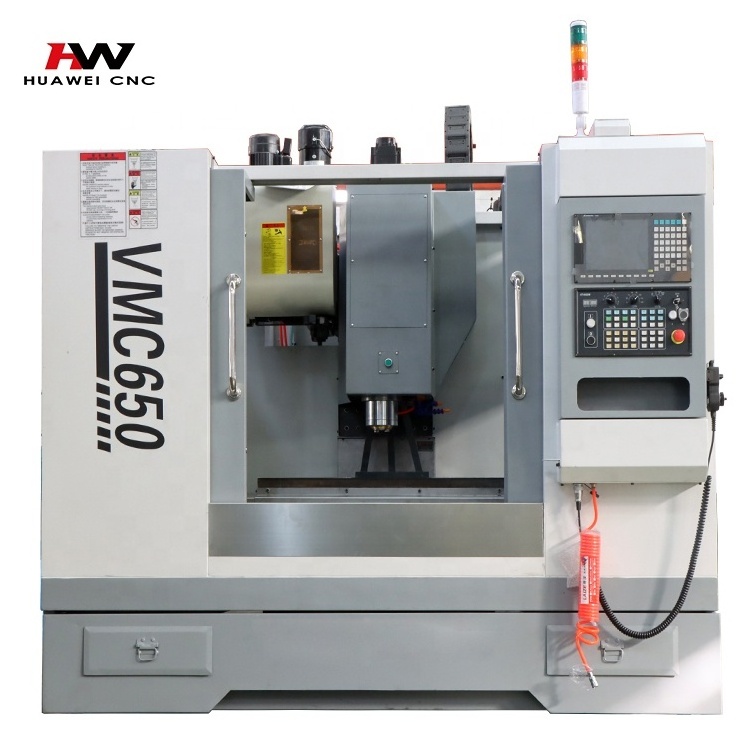

Product name:
-
shandong HUAWEI VMC650
-
Color:
-
Custom-made
-
Guideway type:
-
Taiwan Linearway
-
T Slot:
-
3-14*90
-
Key word:
-
vmc 5 axis cnc VMC650 cnc milling machine 240v of taiwan
Product Description
Good quality factory directly vmc 5 axis cnc VMC650 cnc milling machine 240v of taiwan
Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.
|
Specifications
|
Units
|
VMC650
|
|
Table size
|
mm
|
900x400
|
|
X axis travel
|
mm
|
600
|
|
Y axis travel
|
mm
|
400
|
|
Z axis travel
|
mm
|
500
|
|
Max. worktable load
|
kg
|
400
|
|
T slot(number-width-pitch)
|
|
3-18x100
|
|
Max. spindle speed
|
rpm
|
8000(Optional:10000 )
|
|
Spindle taper
|
mm
|
BT40
|
|
Main motor power
|
kw
|
5.5
|
|
X/Y/Z rapid traverse speed
|
m/min
|
24/24/20
(Optional:48/48/36 ) |
|
Cutting feed speed
|
mm/min
|
1-10000
|
|
Guide rail type
|
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
469
|
|
Distance between spindle nose and worktable surface
|
mm
|
100-600
|
|
Positioning accuracy
|
mm
|
±0.0075
|
|
Repeat positioning accuracy
|
mm
|
±0.005
|
|
Tool magazine
|
|
16 Armless/(Optional: Arm 16 )
|
|
Max. tool diameter
|
mm
|
φ90
|
|
Max.tool weight
|
kg
|
8
|
|
Machine weight
|
kg
|
4000
|
|
Overall dimension
|
mm
|
2400x2000x2550
|
Detailed Images
TAIWAN ATC
Standard with Taiwan 16 ATC umbrrella type.
CNC SYSTEM
CNC control system can choosed:
KND/GSK/SIEMENS/FANUC/MITSUBISH SYNTEC
TAIWAN SPINDLE
Standard :BT40-120 TAIWAN 8000RPM Spindle
Optional:BT40-120 TAIWAN 10000RPM/12000RPM spindle
