Quick Details
-
Model Number:
-
Aline-208
-
Dimension:
-
332x775x470(mm)
-
Output Power:
-
LF:450W AES /1800W Peak / HF:110W AES /440W Peak
-
Sensitivity(1w/1m):
-
LF:100dB / HF:109dB
-
Maximum SPL:
-
LF:126.5dB /132.5dB Peak / HF:129dB /135dB Peak
-
Nominal Impedance:
-
LF:8 Ohm / HF:8 Ohm
-
Color:
-
Black
-
Wood Material:
-
Birch Plywood
-
Service:
-
OEM or ODM
-
Certificate:
-
CE ROHS
-
Application:
-
Middle size events , church and bars
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dragon stage or A+
-
Model Number:
-
Aline-208
-
Dimension:
-
332x775x470(mm)
-
Output Power:
-
LF:450W AES /1800W Peak / HF:110W AES /440W Peak
-
Sensitivity(1w/1m):
-
LF:100dB / HF:109dB
-
Maximum SPL:
-
LF:126.5dB /132.5dB Peak / HF:129dB /135dB Peak
-
Nominal Impedance:
-
LF:8 Ohm / HF:8 Ohm
-
Color:
-
Black
-
Wood Material:
-
Birch Plywood
-
Service:
-
OEM or ODM
-
Certificate:
-
CE ROHS
-
Application:
-
Middle size events , church and bars
Product Description

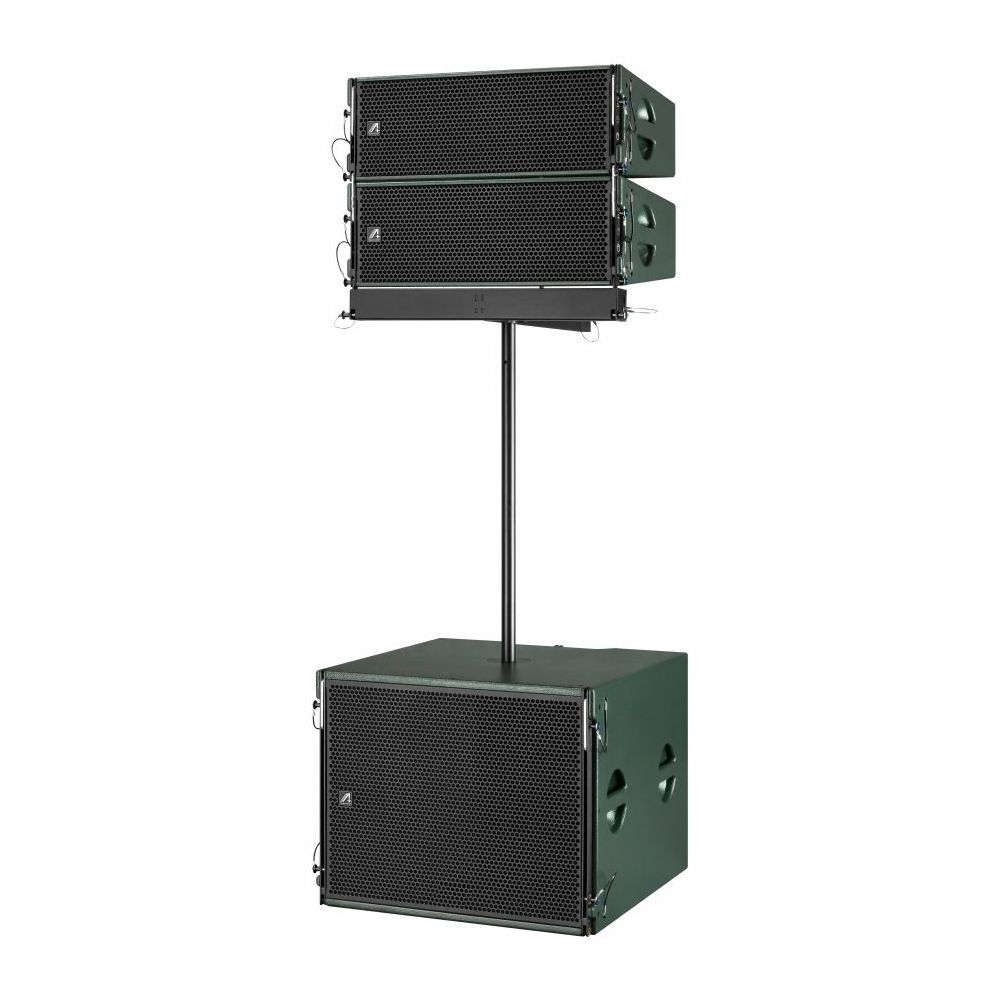

Aline-208 Active two-way Full Range Line Array
Application：
Music
Festival
Outdoor Performance
Ball room
Multi-Function Room
Auditorium
Stadium
Small and Medium Bar
Plaza
Music
Festival
Outdoor Performance
Ball room
Multi-Function Room
Auditorium
Stadium
Small and Medium Bar
Plaza
Specification
|
Model Name: Aline-208
|
Drivers: LF:2×8″ neodymium(200mm)/2″(51mm)Voice-coil HF:1×1.4″neodymium(36mm)exit/3″(75mm)Voice-coil
|
|
Frequency Response: 55-20000Hz
|
Nominal Impedance: LF:8 Ohm / MHF:8 Ohm
|
|
Sensitivity（1w/1m）: LF:100dB / HF:109dB
|
Output SPL: LF:126.5dB /132.5dB Peak / HF:129dB /135dB Peak
|
|
Power Rating （AES）: LF:450W AES / MHF:110W AES
|
Maximum Power: LF:900W MHF: 220W
|
|
Directivity Angle（H×V）: horizontal:110°Splay angle setting:0°-10°(1°increment)
|
Connector: 2 x Neutrik NL4MP
|
|
Wood Material: Birch Plywood
|
Dimension: 250×700×400（mm)
|
|
Net Weight: 24kgs
|
Gross Weight: 26.6kgs
|
Packing & Delivery
Package Type: S
oft bubble inside,thick carton outside,or flying case
