Quick Details
-
Product name:
-
HDMI Matrix
-
Input:
-
4 HDMI Input
-
Output:
-
4 HDMI Output
-
Certifications:
-
HDMI FCC CE RoHS
-
Support:
-
HDCP2.2
-
Function:
-
EDID
-
Feature 1:
-
Support TV wall, PIP picture-in-picture function
-
Feature 2:
-
Support WEB control
-
Power supply:
-
50W, 110-240VAC
-
Video Bandwidth:
-
18Gbps
Quick Details
-
Model Number:
-
BIT-VP-U1-MD404
-
Brand Name:
-
BITVISUS
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
HDMI Matrix
-
Input:
-
4 HDMI Input
-
Output:
-
4 HDMI Output
-
Certifications:
-
HDMI FCC CE RoHS
-
Support:
-
HDCP2.2
-
Function:
-
EDID
-
Feature 1:
-
Support TV wall, PIP picture-in-picture function
-
Feature 2:
-
Support WEB control
-
Power supply:
-
50W, 110-240VAC
-
Video Bandwidth:
-
18Gbps
Products Description

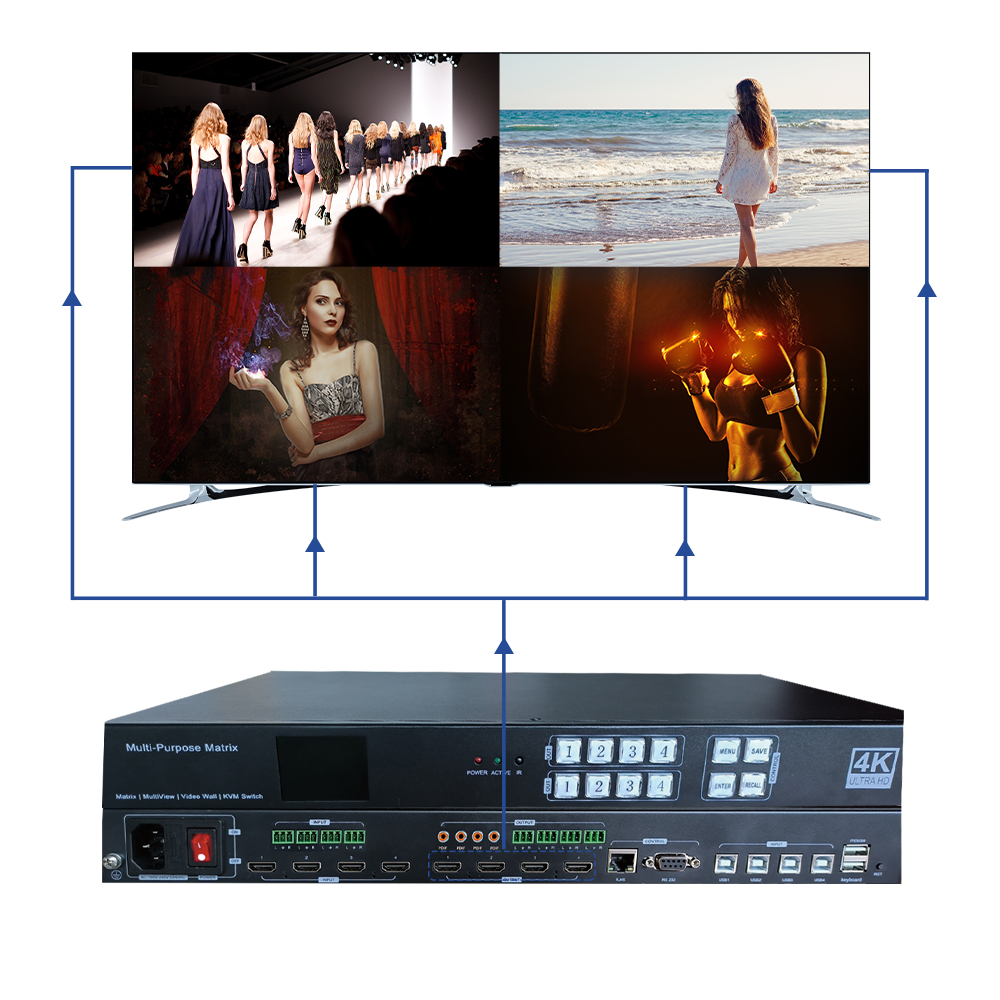

4K60 Seamless HDIMI Multi Viewer Splicing Matrix
☞
Supports Ultra HD resolution
3840x2160@60
,4 inputs and 4 outputs HDMI 2.0.
☞ Supports Seamless Splicing audio/video separation.
☞ Supports 3 modes ( splice matrix mode, split mode, PIP mode )， Splice, overlay, roaming, PIP and other functions.
☞ Splice mode: supports 8 modes. Split mode: supports 7 modes. Open Window Roaming Mode: Window moves and scales arbitrarily.
☞ 4 control modes
(1)
IR
infrared remote control.
(2)
Panel keypad
.
(3)Windows-based host computer via serial port
RS232
, network port.
(4) Browser-based
Web page
, realised through the network port.
Applications in command and dispatch system, multi-screen video surveillance, engineering display applications, multimedia conference halls, game room s, etc.
Applications in command and dispatch system, multi-screen video surveillance, engineering display applications, multimedia conference halls, game room s, etc.
Specification
|
Resolution
|
4K60
|
|
Audio and video separation
|
S/PDIF output,3.5mm headphone jack
|
|
Video pixel frequency
|
600MHz
|
|
Support
|
OEM/ODM
|
|
Power supply
|
220V
|
|
Power wastage
|
12W
|
|
Size
|
43cm*26cm*45cm
|
|
Weight
|
5KG
|
|
Certification
|
CE,FCC,HDMI
|
|
Warranty
|
3 year
|
