Quick Details
-
Place of Origin:
-
Guangdong, China
-
Type:
-
5 position key switch
-
Position:
-
5
-
Color:
-
Black
-
Material:
-
plastics metal spring
-
Usage:
-
Home appliance
-
Suitable:
-
Fan
-
Temperature:
-
75℃
-
Certificate:
-
CQC TUV CB CUL ROHS
-
Service:
-
OEM ODM
-
Sample:
-
Free samples
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
1A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Guangdong, China
-
Type:
-
5 position key switch
-
Position:
-
5
-
Color:
-
Black
-
Material:
-
plastics metal spring
-
Usage:
-
Home appliance
-
Suitable:
-
Fan
-
Temperature:
-
75℃
-
Certificate:
-
CQC TUV CB CUL ROHS
-
Service:
-
OEM ODM
-
Sample:
-
Free samples
Product Description

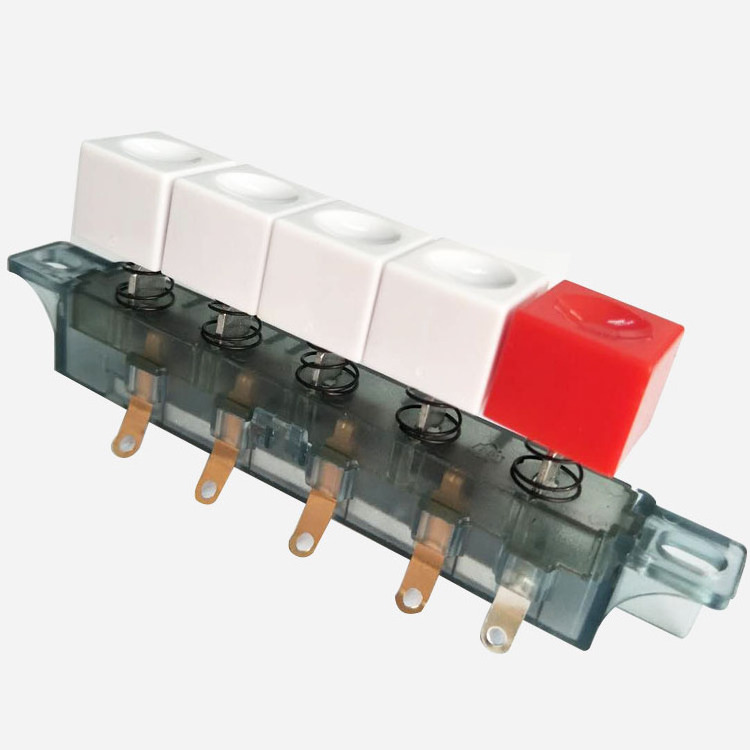

5 key color button Piano switch Electric Fan Juicer push button Keyboard Switches with swing Item No.: 3800-5
|
Technical Parameter |
|
|
Electrical Rating |
1A-125V AC, 1(0.5)A-250V |
| Position | 5 |
|
Function |
OFF, L-4, L-3-4, L-2-4, L-1-4 |
|
HZ |
60/50 |
| Load | Res/ Mot |
| Temp(C) | 75°C |
| Pol/Thr | 1/1 |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 24-18AWG UL1015. |
| Material | |
| Housing: PC Flame rating: V-0 Temperature: 130 | Blocking plate: Steel |
| Cover: PC Flame rating: V-0 Temperature: 130 | Terminal spring: Stainless steel |
| Push block: PA66 Flame rating: V-0 Temperature: 130 | Stationary terminal: Copper alloy |
| Actuating Tip: Copper | Spring: Steel |
| Button: Stainless steel | LPush spring: steel |
| Locking plate: Zinc Plating Iron. | |
