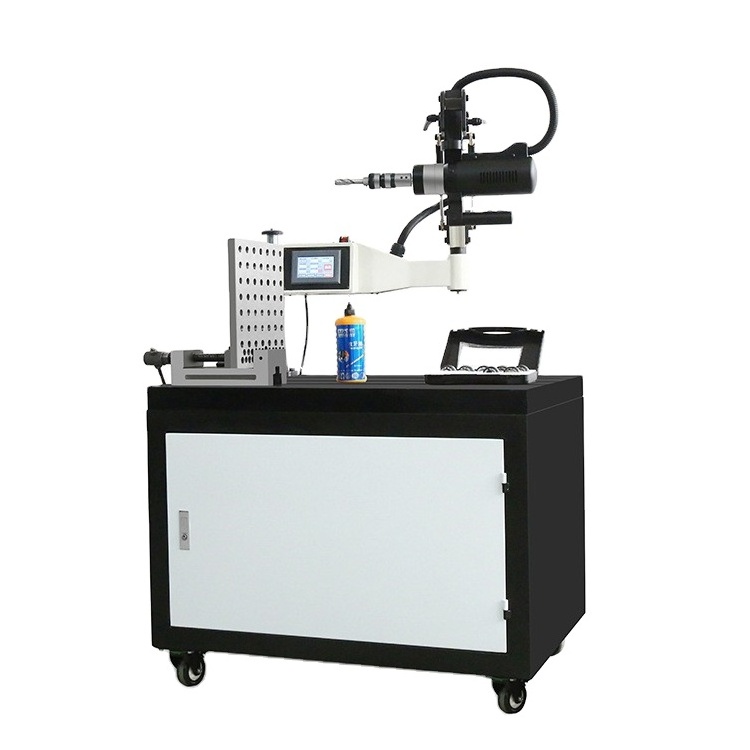

High Speed Flex Arm M3-M16 Mini Metal Servo Auto Electric Threading Tapping Machine

High Speed Flex Arm M3-M16 Mini Metal Servo Auto Electric Threading Tapping Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Brand Name:: wadley

Model Number:: M16

Voltage:: 220V

Power (kW):: 600W

Weight (KG):: 29 KG

Product name:: Tapping Machine

Keyword:: Auto Tapping Machine

Motor:: Servo Motor Option

Tapping Direction:: Vertical Abd Horizontal

Function:: Tapping Holes

Color:: Customizable

Machine type:: Automnatic

Precision:: Accuracy

Tapping Range:: M6- M24

Advantage 1:: Tapping Automatic

Quick Details

type:: TAPPING MACHINE

Max. Drilling Dia. (mm):: 16

Range of Spindle Speed(r.p.m):: 1 - 200 r.p.m

Place of Origin:: Henan, China

Brand Name:: wadley

Model Number:: M16

Voltage:: 220V

Power (kW):: 600W

Weight (KG):: 29 KG

Product name:: Tapping Machine

Keyword:: Auto Tapping Machine

Motor:: Servo Motor Option

Tapping Direction:: Vertical Abd Horizontal

Function:: Tapping Holes

Color:: Customizable

Machine type:: Automnatic

Precision:: Accuracy

Tapping Range:: M6- M24

Advantage 1:: Tapping Automatic

Product Overview

Tapping Machine Automatic Arm Tapping Machine

The electric tapping arm is a kind of machine that processes internal threads, screws or tooth buckles on the inner surface of the holes of various parts with different specifications of through holes or blind holes, such as machine parts, equipment end faces, nuts, flanges, etc. Mechanical processing equipment. Tapping machine is also called tapping machine, thread tapping machine, thread tapping machine, automatic tapping machine, etc.

Vertical type tapping machine

Universal type tapping machine

Product Specification

Model	M12	M16	M24	M30	M36	M48
Voltage	180-250v
Power	600w	600w	1200w	1200w	1200w	1200w
Tapping range	M3-M12	M3-M16	M6-M24	M6-M30	M6-M36	M16-M48
Max. radlus	1000mm	1000mm	1200mm	1200mm	1200mm	1300mm
Way to work	vertical/universal
Tapping chuck	GT12,M3-M12	GT12,M3-M16	GT24,M6-M24	GT24,M6-M30	GT24,M6-M36	GT48,M16-M48

Other Design

yellow tapping machine

orange tapping machine

white tapping machine

pneumatic tapping machine

Air blowing and oiling tapping machine

Details Images

Motor and reducer

Servo motor

Power:600-1500 W

Tapping arm with servo motor, the output is stable.The motor protection device protects the motor reducer to convert the motor into torque output.The tapping is strong and powerful.The head can rotate 360 degrees to realize vertical and side tapping.

Arm and support

Tapping arm with Double cantilevered stable machine head, double air spring on both sides of the stable support, rapid response, support using high-strength aluminum profiles, will not be deformed. The flexible steering shaft and the highly rigid structural support have excellent support for accuracy and processing stability.

Touch screen

Intelligent Control Torque Protection Long term Depth positioning Operation Smart touch Upgrade lntegrated servo drive screen configuration Molding

Machine Details

Tapping machine touch screen PLC with English

Usually, the machine is English and Chinese, and the two languages can be switched.If you have special needs, such as Spanish, Russian... you can also communicate with us. We can set it according to your needs to make your operation more convenient. We sincerely hope to reach a long-term agreement with you.

Electric Tapping Machine Model.
As for the tapping machine, we have a variety of models to choose from, m10, m12, m16, m24, m30... You can tell me the model you want or the maximum tapping diameter you want, and we will recommend a suitable model for you. You can contact us about the chuck standard and voltage. The picture is shown as the oil blowing and gas filling tapping machine. This link sells electric tapping machines, and the picture is for reference only. If you need more money, such as pneumatic money, oil blowing and gas filling money, or drilling and tapping machine, you can inquire at any time.
