Notice!
1, Do not approach the sensor switch when the magnet is not working
2, The magnet can not be hot, more than 70 degrees. The magnetism will disappear. If the temperature of the brake disc is too high, please choose another place to install it.
- Product Details
- {{item.text}}
Quick Details
Quick Details
-
Brand Name:
-
Taidacent
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
punch electronic digital display counter
Taidacent Smart Punch Electronic Digital Display Counter Magnetic Rotation Counting Sensor 6 5 Digit Counter Industrial Counting
Product Description
The 5-digit and 6-digit counters have updated the shortcomings of the original counter that the original counter needs to be shut down by pressing the pause button, and added the intelligent shutdown function, which automatically shuts down after 10 minutes when there is no counting signal input, which saves power consumption. The chip is updated. Use more stable.
Features
The invention uses a replaceable 1.5V dry battery to supply power, does not require an external power source, and is simple and convenient to install. Using LCD liquid crystal display, using imported low-power chips to run more energy-saving and stable, and the counter has a long service life.
Applications
Counting signal input is simple. Any switch with on-off signal such as magnetic induction switch, touch switch, relay, etc. can be used as the signal input of the counter to realize the counting work of the counter. It can be used for all kinds of general mechanical equipment with rotating reciprocating action.
Automatic shut-down
The counter will automatically enter the shutdown sleep mode after 10 minutes of no counting action, and the screen will automatically turn off. Press any key in the shutdown state to turn on the counter, enter the working state, and display the data before shutdown. In the shutdown state, if a counting signal input is detected, the counter will be automatically turned on and enter the working state. At this time, the data before shutdown +1 is displayed.
Note
We have following
combination
can choose, pls contact us.
5-digit counter with alloy sensor switch complete set
5-digit counter with copper tube sensor switch complete set
6-digit counter with
alloy
sensor switch complete set
6-digit counter with copper tube sensor switch complete set
5-digit counter magnet sensor switch
Single magnetic induction switch
Specification
|
Magnetic induction distance
|
value
|
|
|
Sensing magnet approach distance
|
within 0-20mm
|
|
|
Induction magnet separation distance
|
more than 30mm
|
|
Installation Instructions

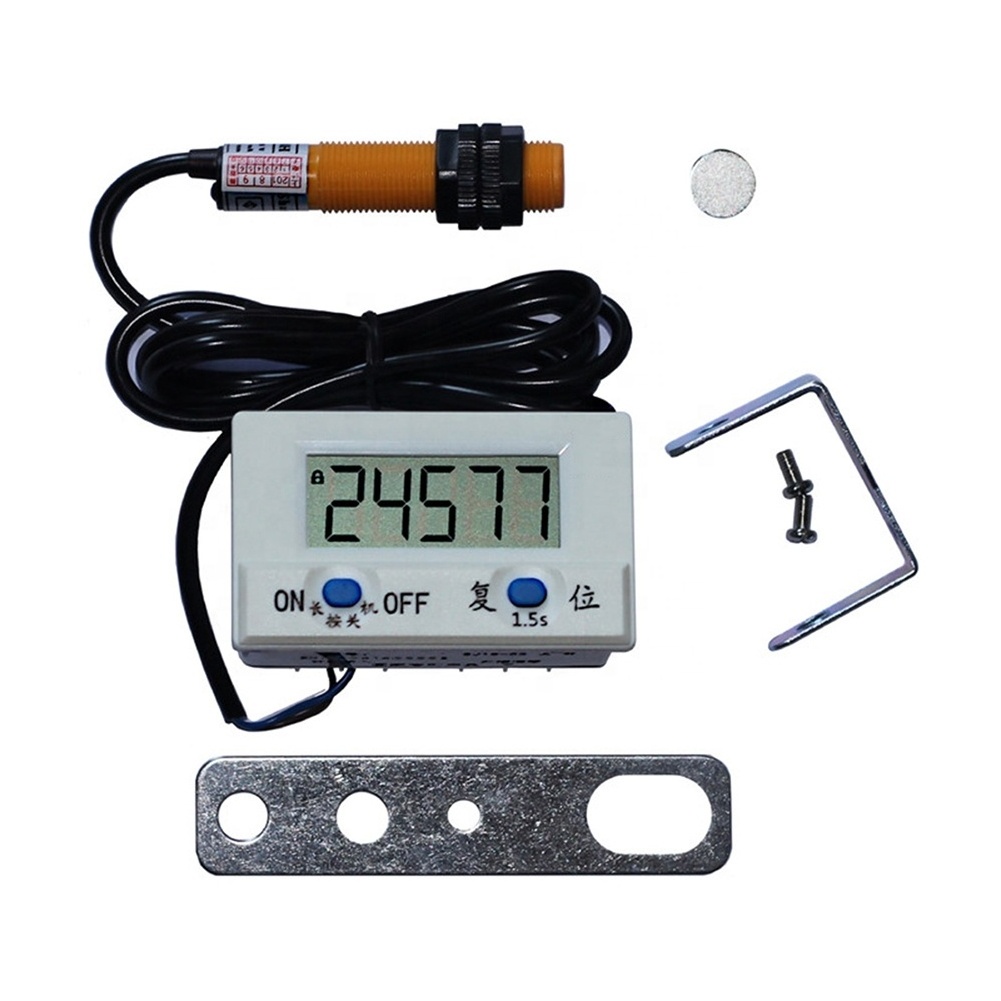

Five-digit counter with magnet sensor switch
1. Before installation, bend the display bracket and the sensor switch mounting bracket into a shape that is conducive to the convenient installation of the equipment location, and then fix it on the machine with screws, and then check whether the sensor and counter connection line screws are firm.
2. Install the magnetic induction switch and counter in a fixed manner, and attach a magnet to the place where the machine rotates or move back and forth. Let the magnet follow the machine rotation, move back and forth to approach, leave, or pass the head of the magnetic induction switch once to complete a count. Adjust the distance of the magnet appropriately. , And then fix the magnet with 502 glue.
Details Images
Packing & Delivery
Box package
