Quick Details
-
Product name:
-

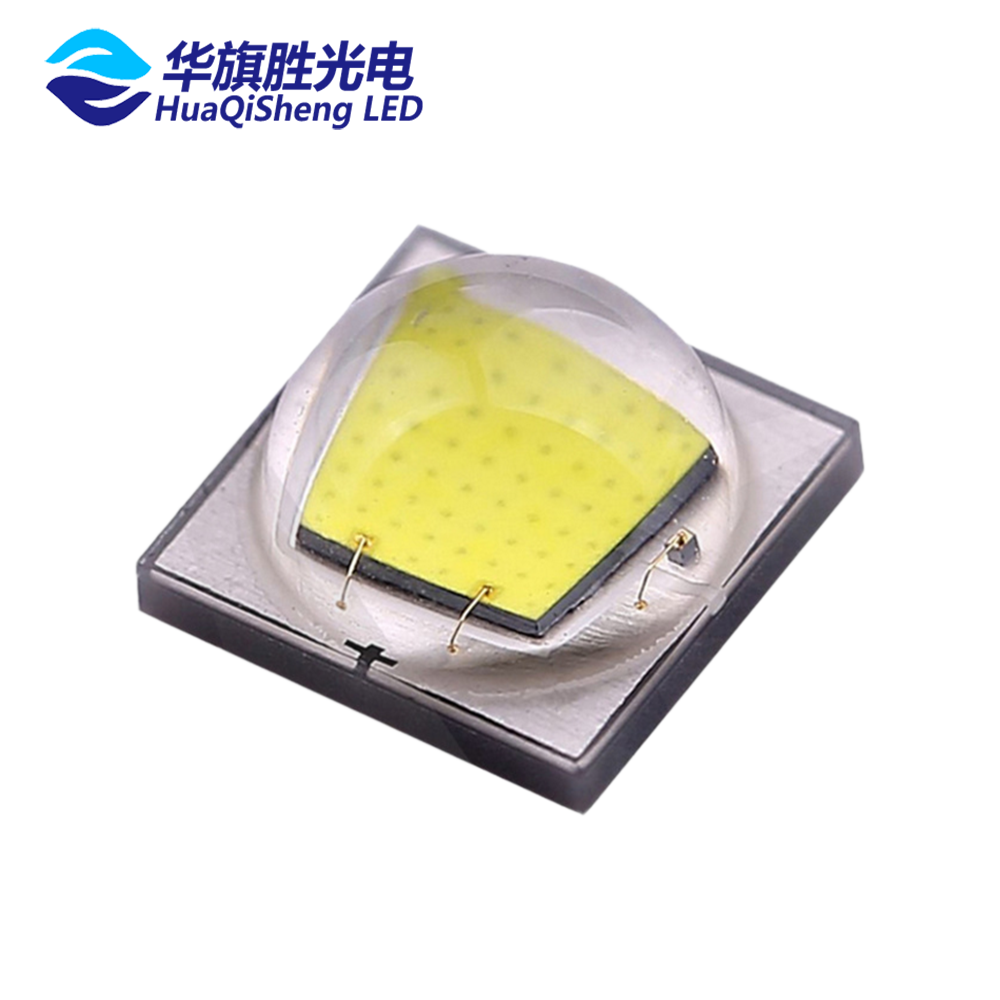

White SMD 10W 5050 LED
-
Forward Current:
-
3000mA
-
Forward Voltage:
-
2.8-3.9V
-
Chip Brand:
-
Famous Branded Chip
-
Color Rendering Index:
-
70
-
Light Color:
-
Cool White
-
Life Span:
-
50000hrs
-
Warranty:
-
5 Years
-
Application:
-
LED Head Light, LED Flashlight, LED Street Light...
Quick Details
-
Operating Temperature(℃):
-
-40 - 65
-
Storage Temperature(℃):
-
-40 - 85
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
White SMD 10W 5050 LED
-
Forward Current:
-
3000mA
-
Forward Voltage:
-
2.8-3.9V
-
Chip Brand:
-
Famous Branded Chip
-
Color Rendering Index:
-
70
-
Light Color:
-
Cool White
-
Life Span:
-
50000hrs
-
Warranty:
-
5 Years
-
Application:
-
LED Head Light, LED Flashlight, LED Street Light...
| Product Name | SMD 10W 5050 LED | Product Model | HQS-5050 |
| Power Dissipation | 10W | Color Rendering Index | 70 |
| Forward Voltage | 2.8-3.9V | Viewing Angle | 120° |
| Forward Current | 3000mA | Operating Temperature | -40~+60 ℃ |
| Luminous Flux | 1000-1200LM | Storage Temperature | -40~+85 ℃ |
| Color Temperature | 7000-9000K | Soldering Temperature | 260℃ |
| High Power SMD 5050 LED SERIES SPECIFICATION | |||||
| Product Name | Light Color | CCT/Wavelength | Voltage | Current | Lumen |
| 6W 5050 LED | White | 5000-8000K | 2.8-3.6V | 700-2000mA |
290LM @0.7A 390LM @1.0A 550LM @1.5A 700LM @2.0A |
| 8W 5050 LED | White | 5000-8000K | 2.8-3.9V | 700-2500mA |
290LM @0.7A 390LM @1.0A 630LM @2.0A 720LM @2.5A |
| 10W 5050 LED | White | 5000-80 00K | 2.8-3.9 V | 700- 30 00mA |
330LM @0.7A 830LM @2.0A 1000LM @2.5A 1200LM @3.0A |
| 18W 5252 LED | White | 5000-80 00K | 6V | 1400-3000mA |
1200LM @1.4A 1600LM @2.0A 1900LM @3.0A |
| 18W 5252 LED | White | 5000-80 00K | 12 V | 700-1000mA |
1600LM @0.7A 1900LM @1.0A |
| 10W 5050 RGBW LED | RGBW |
R:620-630nm, 2.2-2.8V, 700mA, 80-120LM G: 520-530nm, 3.0-3.6V, 700mA, 170-220LM B: 460-470nm, 3.0-3.6V, 700mA, 40-60LM W: 6000-10000K, 3.0-3.8V, 700mA, 220-250LM |
|||
