Quick Details
-
Product name:
-
Battery Tester
-
Battery type:
-
Lead- acid battery
-
Battery range:
-
100-1700CCA
-
Battery capacity:
-
30AH~200AH
-
Operating Language:
-
English
-
Testing method:
-
4-wire Kelvin test connection
-
Power:
-
12V
-
Cable Length:
-
700mm
-
MOQ:
-
50
-
WEIGHT:
-
498g
Quick Details
-
Brand Name:
-
VICTOR
-
Place of Origin:
-
Shaanxi, China
-
Model Number:
-
3015
-
Product name:
-
Battery Tester
-
Battery type:
-
Lead- acid battery
-
Battery range:
-
100-1700CCA
-
Battery capacity:
-
30AH~200AH
-
Operating Language:
-
English
-
Testing method:
-
4-wire Kelvin test connection
-
Power:
-
12V
-
Cable Length:
-
700mm
-
MOQ:
-
50
-
WEIGHT:
-
498g
Products Description

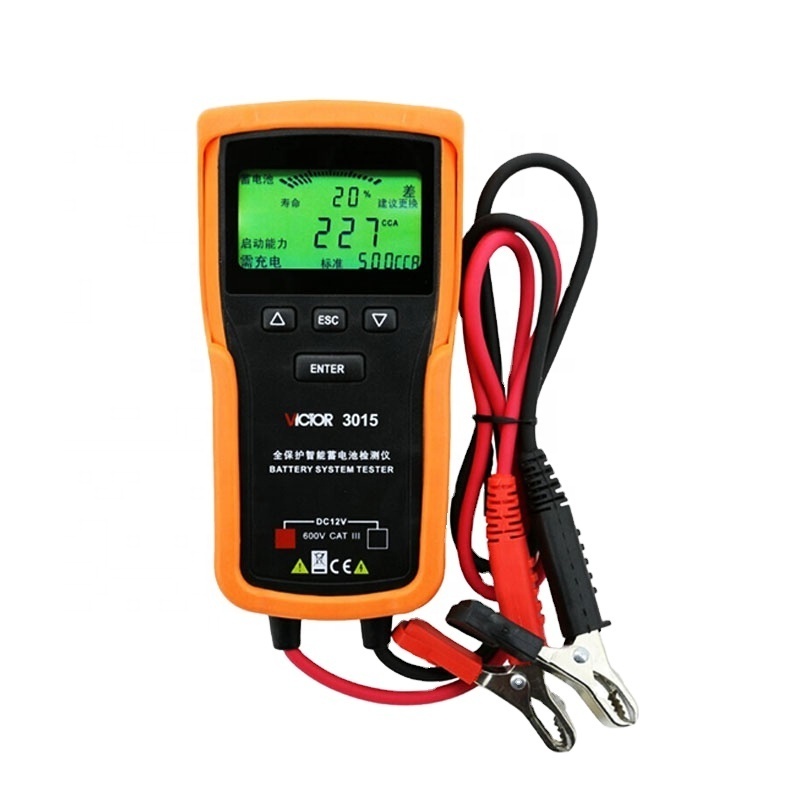

VICTOR 3015 Automotive Battery System Tester 12V 100 - 1700CCA Cranking Charging Electrical Analyzer
This tester is the best tool for battery sales, vehicle repair and conditioncheck of all kinds of lead-acid batteries that used in equipment system
associated with lead-acid battery.
2.Safety Rules And Attentions
This manual includes instruction, operation warning and maintenance. ltis possible to damage the tester without regulations in this manual.Thistester is designed and produced strictly according to GB4793.1 electronicmeasurement instrument safety requirement and lEC/EN61010-1 safetystandard. lt also reach double insulation over voltage standard CATIll 6oovand pollution degree 2 .
(1)The working voltage of 12v system is DC 9V to 18v, while that of 24Vsystem refers to DC 9V to 35V.Make sure do not check the series connectionbattery.
(2) The voltage value will be higher than that in the normal situation after thechecked battery being fully charged . Please turn on the headlights for 2 to 3
water), on the contrary shorten its life fast for the reason that it will increasethe acidity of battery water, not the voltage however.
Specification
|
Model:
|
VICTOR 3015
|
VICTOR 3025
|
VICTOR 3026
|
||
|
Battery type
|
Lead- acid battery
|
|
|
||
|
Battery voltage
|
12V
|
12/24V
|
12V
|
||
|
Battery range
|
100-1700CCA
|
|
|
||
|
Voltage range
|
DC 9-18V
|
DC 9-35V
|
DC 9-18V
|
||
|
Battery capacity
|
30AH~200AH
|
|
|
||
|
battery standards
|
CCA:100~1700;IEC:100~1000;EN:100~1700;DIN:100~1000
|
|
|
||
|
Operating temperature
|
-18℃~50℃
|
|
|
||
|
Operating Language
|
English
|
|
|
||
|
Testing method
|
4-wire Kelvin test connection
|
|
|
||
|
Print Function
|
No
|
No
|
Yes
|
||
|
Display Battery Internal Resistance
|
Display ohms
|
Display ohms
|
Display ohms
|
||
|
Display Battery Voltage
|
Display volts
|
Display volts
|
Display volts
|
||
|
Display Battery condition
|
Good/ok/attention/replace
|
|
|
||
|
Ah Input Quick Test
|
yes
|
yes
|
yes
|
||
|
Maximum Load Test
|
yes(On car)
|
yes(On car)
|
yes(On car)
|
||
|
Engine Cranking Load Test
|
yes
|
yes
|
yes
|
||
|
Star-up Load Test
|
yes
|
yes
|
yes
|
||
|
Maximum Load Test
|
yes
|
yes
|
yes
|
||
|
Charging system Test
|
yes
|
yes
|
yes
|
||
|
Display Battery Status of Health(SOH)
|
yes
|
yes
|
yes
|
||
|
Reverse Polarity Protection
|
yes
|
yes
|
yes
|
||
|
Loose Lead Detection
|
yes
|
yes
|
yes
|
||
|
Overload Protection
|
yes
|
yes
|
yes
|
||
|
Cable Length
|
700mm
|
|
|
||
