Quick Details
-
Brand Name:
-
DAYTAI
-
RF Output Port:
-
2
-
Wavelength:
-
1290~1600nm
-
Optical Connector:
-
FC/APC or SC/APC
-
Input optical power range:
-
-8~+2 dBm
-
Power supply:
-
AC35~90 or AC110~265 V
-
Consumption:
-
12~15W (Max)
-
Operating temperature:
-
-40~+55 ℃
-
Dimension:
-
240x150x110 mm
-
Net weight:
-
2.2 kg
-
Use:
-
FTTX
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
DT-DORA-8602/8606/1G06
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
RF Output Port:
-
2
-
Wavelength:
-
1290~1600nm
-
Optical Connector:
-
FC/APC or SC/APC
-
Input optical power range:
-
-8~+2 dBm
-
Power supply:
-
AC35~90 or AC110~265 V
-
Consumption:
-
12~15W (Max)
-
Operating temperature:
-
-40~+55 ℃
-
Dimension:
-
240x150x110 mm
-
Net weight:
-
2.2 kg
-
Use:
-
FTTX

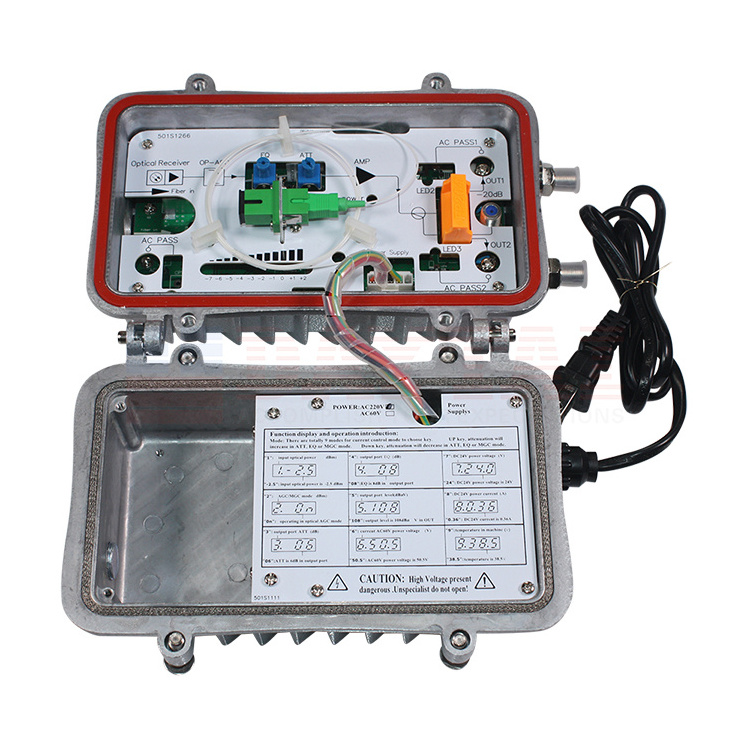

Outdoor 2way Optical Receiver With AGC Suitable For FTTx,2 PCS RF Ports Output, (DT-DORA-8602:Frequency Range:47~862MHz, RF Output Level:≥102dBuV), (DT-DORA-8606:Frequency Range:47~862MHz, RF Output Level:≥106dBuV),(DT-DORA-1G06:Frequency Range:47~1000MHz,RF Output Level:≥106dBuV),Receiving optical wavelength:1290～1600nm,Receiving optical power:-8～+2,Optical connector type: SC/APC OR FC/APC,AGC:Optical control AGC,AGC Range:-6～+2 dBm,Optical return loss:≥45dBm,C/CTB:≥65 (-1dBm receiving, 40 channels),C/CSO:≥60 (-1dBm receiving, 40 channels),Frequency range:45~862MHz,Power:AC35~90V OR AC110~265V,Outer dimension: 240mm×150mm×110mm,Net weight:2.2Kg.With or Without SNMP is optional.
It added network management interface and AGC function, which optimized circuit design to make sure the output level keep stable when input within -6～+2dBm. All these make this equipment has high performance. Output designed with adjustable attenuator and equalizer can make CATV network subject very convenient to debug, and adapted present and future CATV network development, it becomes the priority for building FTTx network system.
Feature
⊙ AGC function (-6～+2dBm).
⊙10-section LED displays input optical power.
⊙1310nm and 1550nm dual-window receiving.
⊙Equipped AC60V sole power supply port, easy to operate.
⊙Each port is equipped AC60V LED indicator light, easy to operate.
⊙Output designed with adjustable attenuator and equalizer, easy to debug.
⊙Output plug-in one-way tap or two-way splitter, easy to replace and operate.
⊙Perfect surge suppression circuitry, which is effectively to prevent shock and lightning surge.
⊙Built-in High-reliable switching power supply, small temperature rise, high conversion efficiency, wide voltage range.
⊙High-quality die-casting aluminum housing, dust-proof, water-proof, shield and good heating performance, convenient to install.
⊙SNMP component can be selected for installation to achieve remote control on working status and performance parameter;
It added network management interface and AGC function, which optimized circuit design to make sure the output level keep stable when input within -6～+2dBm. All these make this equipment has high performance. Output designed with adjustable attenuator and equalizer can make CATV network subject very convenient to debug, and adapted present and future CATV network development, it becomes the priority for building FTTx network system.
Feature
⊙ AGC function (-6～+2dBm).
⊙10-section LED displays input optical power.
⊙1310nm and 1550nm dual-window receiving.
⊙Equipped AC60V sole power supply port, easy to operate.
⊙Each port is equipped AC60V LED indicator light, easy to operate.
⊙Output designed with adjustable attenuator and equalizer, easy to debug.
⊙Output plug-in one-way tap or two-way splitter, easy to replace and operate.
⊙Perfect surge suppression circuitry, which is effectively to prevent shock and lightning surge.
⊙Built-in High-reliable switching power supply, small temperature rise, high conversion efficiency, wide voltage range.
⊙High-quality die-casting aluminum housing, dust-proof, water-proof, shield and good heating performance, convenient to install.
⊙SNMP component can be selected for installation to achieve remote control on working status and performance parameter;
P
arameter
|
Items
|
Unit
|
Parameters
|
|
|
||
|
|
|
DT-DORA-8602
|
DT-DORA-8606
|
DT-DORA-1G06
|
||
|
RF output ports
|
|
2
|
|
|
||
|
Wavelength range
|
nm
|
1290～1600
|
|
|
||
|
Optical connector
|
-
|
FC/APC or SC/APC
|
|
|
||
|
Input optical power range
|
dBm
|
-8～+2
|
|
|
||
|
AGC Function
|
-
|
Optical control AGC
|
|
|
||
|
AGC Scope
|
dBm
|
-6～+2 dBm
|
|
|
||
|
Optical return loss
|
dB
|
≥50
|
|
|
||
|
In-band flatness
|
dB
|
±0.75
|
|
|
||
|
Frequency range
|
MHz
|
47～862
|
|
47～1000
|
||
|
RF output level
|
dBµV
|
≥102dBuV
|
≥108dBuV
|
≥110dBuV
|
||
|
RF output impedance
|
Ω
|
75
|
|
|
||
|
Attenuator adjusted range
|
dB
|
0～20
|
|
|
||
|
Equalizer adjusted range
|
dB
|
0～18
|
|
|
||
|
Output return loss
|
dB
|
≥16（47～550MHz）;≥14（550～862MHz）
|
|
|
||
|
C/N
|
dB
|
≥51（-1dBm receiving, 59chs PAL-D）
|
|
|
||
|
C/CTB
|
dB
|
≥65（-1dBm receiving，59chs PAL-D）
|
|
|
||
|
C/CSO
|
dB
|
≥60（-1dBm receiving, 59chs PAL-D）
|
|
|
||
|
Power supply
|
V
|
AC35～90 or AC110～265
|
|
|
||
|
Consumption
|
W
|
12（max）
|
15（max）
|
15（max）
|
||
|
Operating temperature
|
℃
|
-40～+55
|
|
|
||
|
Dimension
|
mm
|
240×150×110
|
|
|
||
|
Net weight
|
Kg
|
2.2
|
|
|
||
Ordering Information
|
DAYTAI Model
|
Frequency range
|
RF output level
|
Consumption
|
|
||||
|
DT-DORA-8602
|
47～862MHz
|
≥102dBuV
|
12W (max)
|
|
||||
|
DT-DORA-8606
|
47～862MHz
|
≥108dBuV
|
15W (max)
|
|
||||
|
DT-DORA-1G06
|
47～1000MHz
|
≥110dBuV
|
15W (max)
|
|
||||
|
Optional Configuration:
|
|
|
|
|
||||
|
Optical connector
|
FC/APC or SC/APC
|
|
|
|
||||
|
SNMP
|
Add SNMP (Simple Network Management Protocol) is optional
|
|
|
|
||||
|
Power supply
|
AC35～90 or AC110～265
|
|
|
|
||||
|
|
European standard Plug or American standard Plug is optional
|
|
|
|
||||
